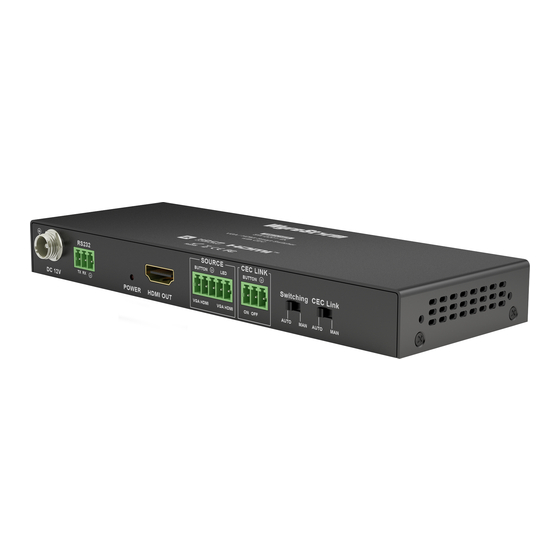

Wyrestorm SW-0201-4K Quick Start Manual

2x1 HDMI/VGA Smart Switch
with CEC Control
SW-0201-4K
Compact device to switch a VGA or HDMI source to a single HDMI output. CEC-Link ensures the sink device is powered on during use.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x SW-0201-4K Smart Switch
1x 12V DC 0.5A Power Supply (US/UK/EU)
2x 3-pin Screw Down Phoenix Connector
1x 5-pin Screw Down Phoenix Connector
2x Mounting Brackets
1x Quickstart Guide (this document)

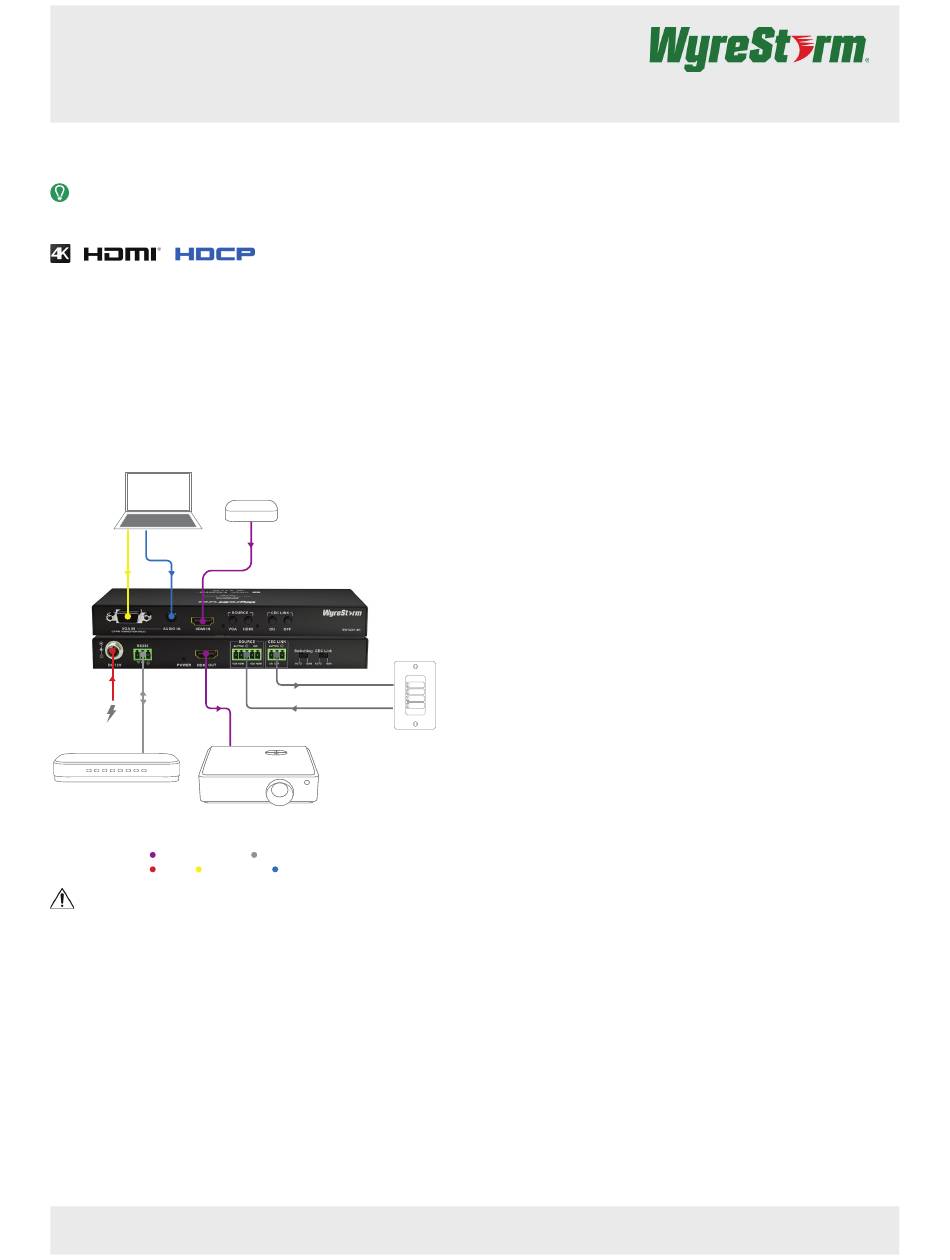

Basic Wiring Diagram
VGA Source
HDMI Source
Analog Video Analog Audio
RS-232 to
Control
12 DC 0.5A
System
Power Supply
HDMI Display
KEY
HDMI/Digital Video
Power Analog Video
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Copyright © 2015 WyreStorm Technologies |
SW-0201-4K Quickstart Guide | 151222
HDMI from Source
Keypad Source LED
Keypad Source Button
HDMI to
Display
RS-232
Analog Audio
wyrestorm.com
Installation
Before Beginning
Verify that all items are included in the packaging per the
Pre Wire
1. (Optional) If using VGA with Audio, run the wire and terminate per
the Audio In Wiring section.
2. (Optional) If using RS-232 to control the switcher, run the wire and
terminate per the RS-232 Wiring
3. (Optional) If using a keypad or panel switch to control the switcher,
run the wire and terminate per the
section.
4. (Optional) If using a keypad or panel switch to turn CEC On/Off, run
the wire and terminate per the
Installation
1. Connect an HDMI source to the HDMI In on the transmitter using
an HDMI cable from a high quality brand such as
Express. Refer to the HDMI Wiring
wiring guidelines.
2. (Optional) Connect the VGA Out from a VGA source to a VGA In on
the switcher. Connect the audio out for the VGA source to the Audio
In using the cable created in
3. (Optional) Connect the 3-pin connector to the RS-232 port on the
switcher and the opposite end to a port on a control system using
the cable created in Pre Wire
4. (Optional) Connect the 5-pin connector to the Source port on the
switcher and the opposite end to a keypad or panel switch using the
cable created in Pre Wire
5. (Optional) Connect the 3-pin connector to the CEC Link port on the
switcher and the opposite end to a keypad or panel switch using the
cable created in Pre Wire
6. Connect the included 12V DC 0.5A power supply to the DC 12V
input.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
In The Box
section.
Source Contact Closure Wiring
CEC Contact Closure Wiring section.
WyreStorm
section for important HDMI
Pre Wire step 1.
step 2.
step 3.
step 4.
