4-input Desk-mounted 4K/60 HDBaseT Presentation Switcher
with DSC Compression, Scaling & USB Host
SW-740-TX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the
installation process.
IMPORTANT! Installation Requirements
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
Information and Parts Required for Installation
This transmitter requires connection via RS-232 or Ethernet in order to
configure functions such as EDID. Ensure that the following items are on hand
before proceeding with the installation.
• PC or Mac
• Telnet and Terminal software such as
• USB COM Port Adapter (Not Included)
• WyreStorm Part: CAB-USB-3PIN
• Network router and/or switch if using IP telnet for configuration.
• Latest version of the
SW-740-TX API
covered in this document.
Basic Wiring Diagram
Control System
Tablet
RS-232
USB-C
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
SW-740-TX Quickstart Guide | 200729
section for important wiring
PuTTY
for advanced configuration not
Personal Computer
PIR Sensor
USB
Ethernet
HDMI
IR
HDMI
Analog Audio
Confidence Monitor
HDBaseT
Cat5e/6/7
In the Box

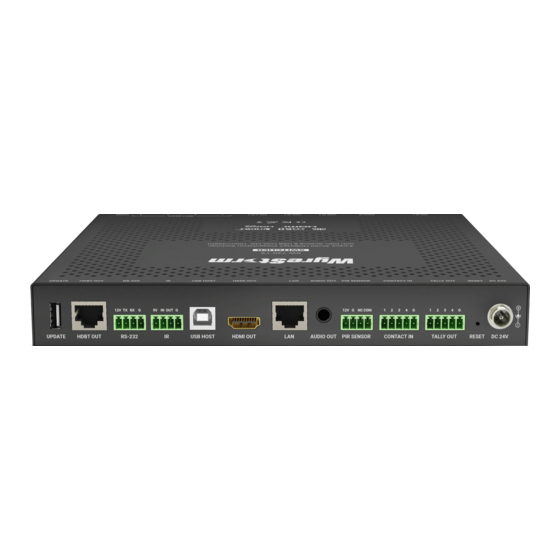

1x SW-740-TX Presentation Switcher
2x 5-pin Terminal Block
3x 4-pin Terminal Block
1x 24V DC 6A Power Supply (US/UK/EU/AU)
2x Mounting Brackets
1x Quickstart Guide (This Document)
KEY
HDMI/USB-C
HDBaseT/Ethernet
Control
Analog Audio
USB 2.0
SW-740-TX
Power
Supply
Multiroom Amplifier
1 of 4
Quickstart Guide
Interactive
Whiteboard
USB Camera
Short Throw
Projector
USB
RS-232
HDMI
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
RX-700
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm SW-740-TX
Summary of Contents for Wyrestorm SW-740-TX
- Page 1 4-input Desk-mounted 4K/60 HDBaseT Presentation Switcher with DSC Compression, Scaling & USB Host SW-740-TX Quickstart Guide WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the installation process. In the Box IMPORTANT! Installation Requirements 1x SW-740-TX Presentation Switcher •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.
- Page 3 The SW-740-TX is configured using RS-232 or IP commands for Output Resolution, and EDID. Follow these steps to properly configure the transmitter based on the system requirement. Note: The steps and information provided in this QSG are for basic operation of the transmitter out of the box. Refer to the SW-740-TX API for full configuration settings.
- Page 4 Safety and Emission CE | FCC | RoHS | EAC | RCM Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
