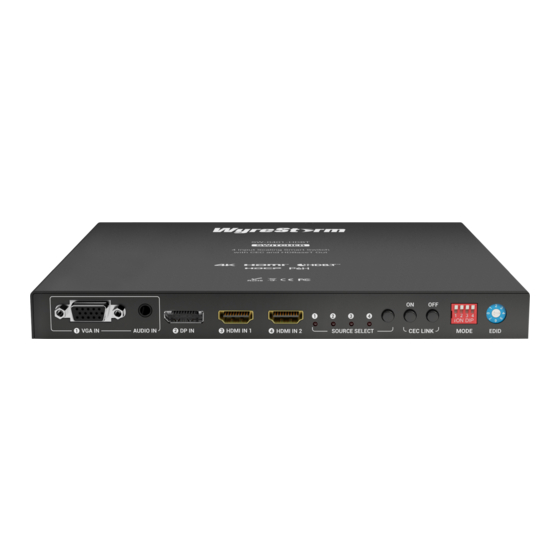

4 Input Scaling Smart Switch with CEC and HDBaseT Out
SW-0401-HDBT
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest document version, additional
documentation, firmware, and configuration tools.
• Install the latest firmware to ensure that all features described in this
document are available during and after installation.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• An HDBaseT receiver is required to use this product.
• See
Recommended Products
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Recommended Products
To take full advantage of the features of this switcher, WyreStorm
recommends the following products be used to complete the installation.
RX-70-4K HDBaseT Receiver – This Class A PoH receiver can be used for
general purpose transmission where IR and RS-232 routing maybe required.
RX-70-4K-ARC HDBaseT Receiver – This Class A PoH receiver can be used
for general purpose transmission where IR and RS-232 routing or Audio
Breakout maybe required.
Note: If CEC control of displays is required, the RX-70-4K-ARC cannot be used
as it does not support this feature.
Basic Wiring Diagram
Personal Computer
WyreStorm HDBaseT
Receiver
Copyright © 2017 WyreStorm Technologies |
SW-0401-HDBT Quickstart Guide | 180104
section for important wiring
for guidelines on choosing a receiver.
Laptop
wyrestorm.com
In the Box
1x SW-0401-HDBT Switcher
1x 12V DC 3A Power Supply
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
1x AC Power Cord with EU Plug
2x 3-pin Male Phoenix Connector
1x 4-pin Male Phoenix Connector
3x 5-pin Male Phoenix Connector
2x Mounting Brackets
1x Quickstart Guide (This Document)
Additional Information
Visit the product page at
wyrestorm.com
product.
• Product API for configuring control via a 3rd party control system.
• Firmware updates – We consistently improve our products and may supply
firmware updates in the future to improve the operation.
Media Player
Video Conference Device
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
for additional content regarding this
KEY
HDMI/DisplayPort
HDBaseT
RS-232/Serial
Analog Audio
Analog Video
Control System
Amplifier
