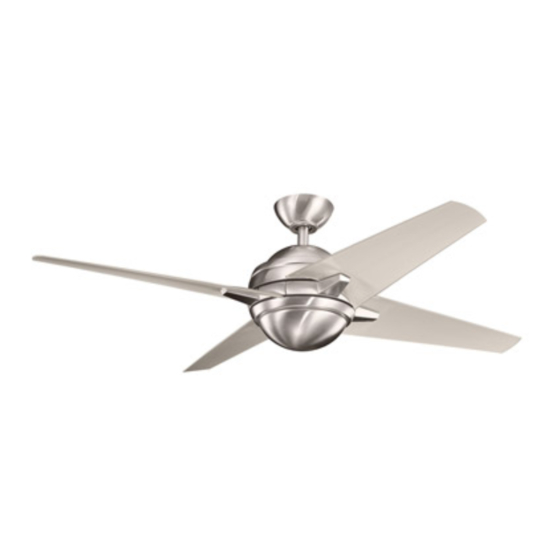

- Page 1 Sunburst A Kichler ® Décor ™ ceiling fan Includes our new Wall Control System Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 9. To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan. -
Page 3: Tools And Materials Required
Sunburst 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (4) Canopy & Ceiling mounting bracket Ball/downrod assembly Fan motor assembly Set of 4 blade brackets and Pre-Installed... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
Sunburst 5. HANGING THE FAN RMEMEBER to turn off the power before you Ceiling mounting bracket begin installation. This is necessary for your safety and also the proper programing of the control system. Canopy To properly install your ceiling fan, follow the Canopy cover steps below. - Page 6 Step 7. Loosen the two set screws and Supply wires remove the hitch pin and retaining clip from Coupling the coupling on top of the motor assembly. Downrod (Fig. 9) Set screws Set screws Step 8. Carefully feed the electrical lead wires Hitch pin Retaining clip from the fan up through the downrod.
-
Page 7: Installation Of Safety Support
Sunburst 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install Hanger bracket it as follows. Safety cable Step 1. Attach the provided wood screw and Attach safety cable to ceiling joist with washers to the ceiling joist next to the mounting... -
Page 8: Finishing The Installation
Connect the white wire from the fan to the white Outlet box wire marked "TO MOTOR N" on the receiver. Connect the blue wire from the fan to the blue White (neutral) wire marked "FOR LIGHT" on the receiver. Black (hot) Secure all the wire connections with the plastic Green or bare copper (ground) -
Page 9: Attaching The Fan Blades
Sunburst 9. ATTACHING THE FAN BLADES CAUTION: Remove the rubber shipping plate attached to the face of the motor. These plate keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket using the screws and fiber washers provided. -
Page 10: Installing The Led Light Kit
11. INSTALLING THE LED LIGHT KIT AND GLASS SHADE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Loosen the three mounting screws on the inside of the LED light kit. (Fig.19) Wire connectors Light plate Step 2. -
Page 11: Installing The Batteries
Sunburst 12. INSTALLING THE BATTERIES Remove the face plate of the Wall Switch by lifting at the top and then insert the supplied 12V battery. Duracell MN21/Eveready A23/GP LIGHT 23A all 12V. Replace the switch face plate. ON ECE FAN OFF 1 2 3 4 To prevent possible damage to the transmitter, remove these batteries if not used... - Page 12 14. INSTALLING THE BASIC FUNCTION WALL CONTROL SYSTEM WALL Outlet box PLATE Switch Wall plate Select a location to install the Basic Function Wall Control System Transmitter and Wall Plate. RMEMEBER you can safely use the transmit- ter outdoors but it should be mounted indoors away from excess heat and away from con- tact with water or humidity.
- Page 13 Sunburst 15. OPERATING INSTRUCTIONS The Black Slide Switch on the side of the switch housing controls the direction of the blades "Forward and Reverse". Warm weather - Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 27. This allows you to set your air conditioner on a warmer setting without affecting your comfort.
-
Page 14: Troubleshooting
16. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
