Warning:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity
of this or any other
appliance.

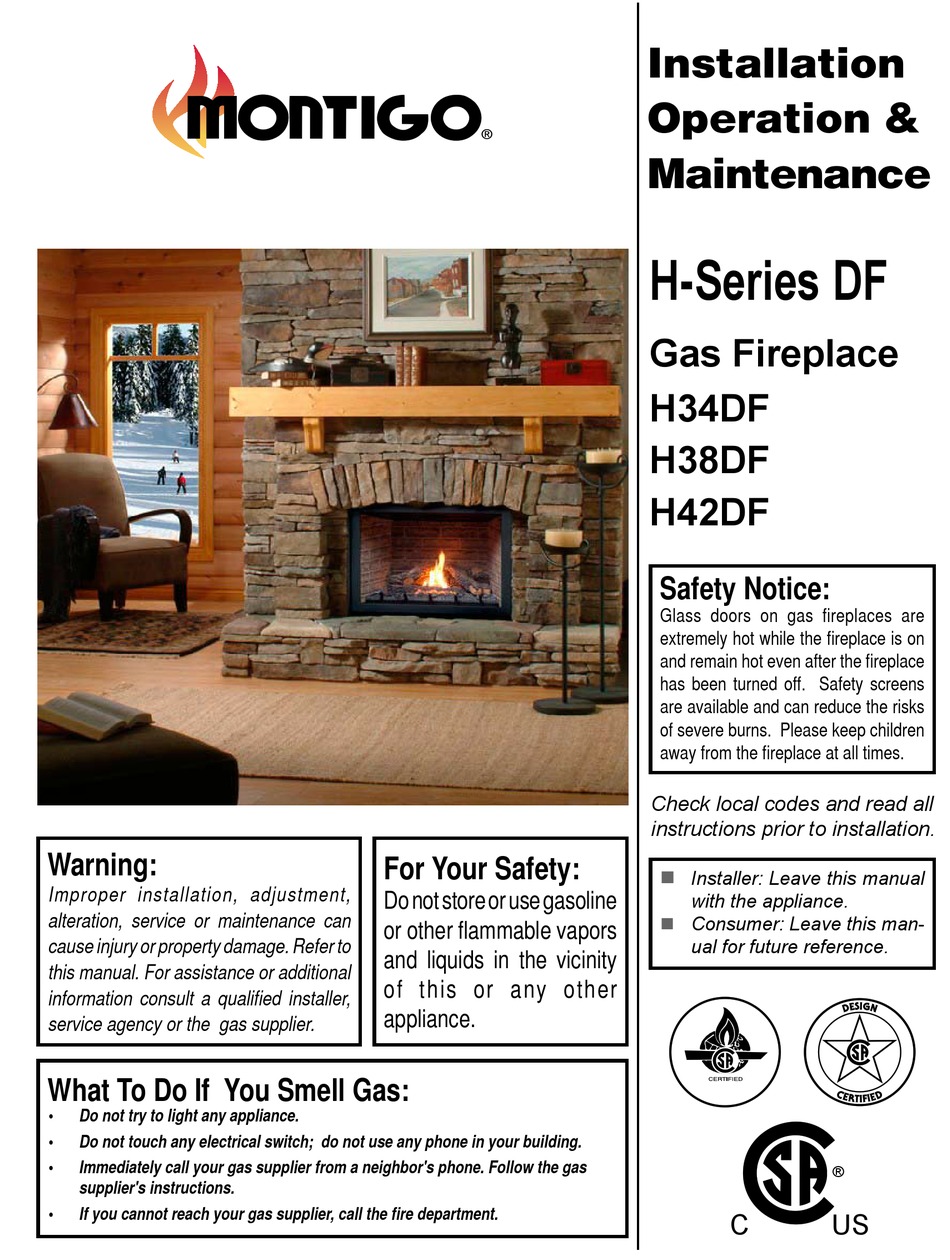

Installation
Operation &
Maintenance

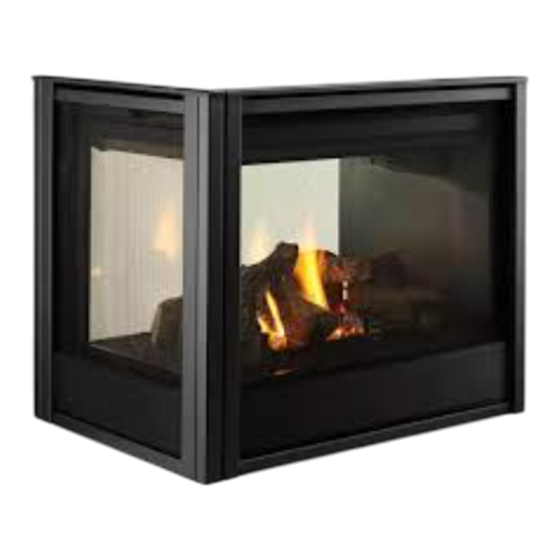

H-Series DF
Gas Fireplace
H34DF
H38DF
H42DF
Safety Notice:
Glass doors on gas fireplaces are
extremely hot while the fireplace is on
and remain hot even after the fireplace
has been turned off. Safety screens
are available and can reduce the risks
of severe burns. Please keep children
away from the fireplace at all times.
Check local codes and read all
instructions prior to installation.
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
C
®
US
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Montigo H34DF
Summary of Contents for Montigo H34DF
-
Page 1: Safety Notice
Installation Operation & Maintenance H-Series DF Gas Fireplace H34DF H38DF H42DF Safety Notice: Glass doors on gas fireplaces are extremely hot while the fireplace is on and remain hot even after the fireplace has been turned off. Safety screens are available and can reduce the risks of severe burns. -
Page 2: Table Of Contents
Vent application, and it is available in three models. The Remote Switch ............4 The H34DF is rated for Natural Gas at 18,000 BTU/H (5.28 Kilowatts) Input or Propane at 18,000 BTU/H (5.28 Kilowatts) Input. Direct Vent Installation ........... 4 H34DF;... -
Page 3: Installation
Direct Vent installation. Refer to page 4 - Vent Installation for more information. The fireplace dimensions are shown below: Figure 2. Framing dimensions. 0" clearance to corners only Top View H34DF 33 Q” N” H38DF 37 25 11 H42DF 42 40 28 12 P”... -
Page 4: Installing The Gasline
Installation Requirements & a manifold pressure of 3.5" W.C. Propane Gas requires a minimum H34DF fireplaces are certified for use with Montigo Standard Series (4" / ■ inlet gas supply pressure of 11" W.C. & a manifold pressure of 10" W.C. -
Page 5: The Remote Switch
H-Series DF Gas Fireplace Installation Installing Terminations with Built-In Frames Installing Heat Guards over Terminations MTO-3F (4"/7") PTO-3F (5"/8") MTKOG (4"/7") PTKOG (5"/8") Ensure that the two long mounting brackets are facing the bottom Frame the termination opening to 11" x 11". of the termination. - Page 6 H-Series DF Gas Fireplace Installation Converting to Top Vent/ Rear Vent H-Series DF Rear Vent Use the following instructions to convert an H-Series DF for Top Vent H-Series DF Top Vent use: Use the following instructions to convert an H-Series DF for Top Vent Install the 4"...
- Page 7 If the vertical dimension from the floor of the fireplace is 72" and the horizontal run to the wall flange of the vent termination is 84", this would NOT be an acceptable installation. Figure 9a. H34DF Top Vent Venting Graph H38DF H38DF Figure 9c.
-
Page 8: Terminations
H-Series DF Gas Fireplace Installation Available Top Vent Components Horizontal Venting The following venting components are available for the H-Sereis DF 90° Elbow Top Vent: 4" / 7" Venting 5" / 8" Venting A - Termination MTO-3 (3" Length) PTO-3 (3" Length) MTO-3F (3"... - Page 9 6' (six feet) from a mechanical air inlet • minimum 18" (1 1/2 feet) from a parapet wall. Maximum vent height is: • 32 feet above fireplace. H34DF • 35 feet above fireplace. H38DF • 35 feet above fireplace. H42DF Note: Flame characteristics will change if the maximum vent height Figure 15.
- Page 10 H-Series DF Gas Fireplace Installation Reduced Vertical Installation It is possible to reduce vertical vent runs from 5"/8" venting to 4"/7" venting. Reduced vertical venting may only be used when the installation exceeds 12 feet and terminates through the roof, and if the vertical vent reducer is used with the following venting configuration.
-
Page 11: Rear Vent Venting Runs
H-Series DF Gas Fireplace Installation Rear Vent Venting Runs 2. 45° Corner Installation. The H-Series DF Rear Vent has three possible installations which do Attach an EEL-45/PEL-45 (45° elbow) directly onto the flue collar. not require vertical lift, all of these installations require that you install Cut the EXT-18/PXT-20 to suit, and attach it to the EEL-45/PEL-45. - Page 12 If the vertical dimension from the floor of the fireplace is 78" and the horizontal run to the wall flange of the vent termination is 108", this would NOT be an acceptable installation. Figure 22a. H34DF Multi-Elbow Venting Graph. Page 12 Part No. XG0145...
- Page 13 Figure 22c. H42DF Multi-Elbow Venting Graph. 18" Figure 23. Multi-elbow installation. For H34DF distance 'H' must be a minimum of 46". For H38DF and H42DF distance 'H' must be a minimum of 50". The vent run must comply with figure 22.
-
Page 14: Facing
H-Series DF Gas Fireplace Installation Finishing Around the Fireplace Mantels & Surrounds Combustible mantels and mouldings may be safely installed over the NOTE: National Canadian Gas Association mantel test requirements top and on the front of the fireplace provided that they do not project are for fire hazard prevention to combustible materials. -
Page 15: Removing And Installing The Door
H-Series DF Gas Fireplace Installation Removing and Installing Wiring for the optional Fan Kit All H-Series DF fireplaces may be equipped with optional fan kits for the Door circulating heat into the living space. Removing the door: Installations in Canada which employ the fans must be electrically The door is held in place by a lip on the top of the metal frame and two grounded in accordance with CSA C22.1 Canadian Electrical Code buckles at the bottom. -
Page 16: Installing The Logset
H-Series DF Gas Fireplace Installation H34DF Installing the Log Set Place the bottom left and right logs as shown below in figure Installing the Logs: Log 'D' 29d. The H-Series DF is supplied with four ceramic fibre logs and a ceramic Place the top left and right logs as shown in figure 29e. - Page 17 H-Series DF Gas Fireplace Installation H38DF H42DF Step 6. Place the Centre Front log , Figure 30e below, as shown using the notch cast in the Bottom Rear log as shown in figure 30d above. Align Air Inlets Bottom Left Log Center Front Log Figure 30b.
- Page 18 H-Series DF Gas Fireplace Operation - Model H-Series DF H-Series DF with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.
- Page 19 H-Series DF Gas Fireplace Operation - Model H-Series DF-A B-Series BF-A L-Series DF-I with American Flame Electronic Ignition For Your Safety - READ BEFORE LIGHTING: with American Flame Electronic Ignition WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 20: Lighting Instructions
H-Series DF Gas Fireplace Operation - Model H-Series DF-I H-Series DF-I with Honeywell Electronic Ignition For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. -
Page 21: Operation
H-Series DF Gas Fireplace Operation Maintenance Lighting Instructions General Have the fireplace and installation inspected yearly. The inspection See pages 19 and 20. ■ must include, but is not limited to, the following: • A visual check of the entire vent system and termination. Burner Adjustment •... - Page 22 H-Series DF Gas Fireplace Maintenance Gas Control Valve Troubleshooting H-Series DF-I Power HONEYWELL SV9500 /9600 Generator Troublshooting Sequence Pilot Adjustment Screw NOTE: Before Troubleshooting, Familiarize Yourself With Wall Switch The Startup And Checkout Procedure. START INSET CHECK: - Turn Gas Supply Off - Line voltage power - Set thermostat to Terminals...
-
Page 23: Warranty
The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you. -
Page 24: Termination Locations
H-Series DF Gas Fireplace Appendix A - Termination Locations A = clearance to the termination frame above grade, veranda, porch, deck, clearance above paved sidewalk or a paved driveway located on public † or balcony [16 inches (41 cm) minimum] property [*7 feet (2.1 m) minimum] B = clearance to door, or sides and top of window, that may be opened [16 P = c l e a r a n c e u n d e r v e r a n d a , p o r c h , d e c k , o r b a l c o n y... - Page 25 H-Series DF Gas Fireplace Maintenance Notes Spare Parts - H-SeriesDF H34DF H38DF H42DF NG Gas Valve RGC1006 RGC1006 RGC1006 LP Gas Valve RGC1005 RGC1005 RGC1005 NG Pilot RPA020 RPA020 RPA020 LP Pilot RPA021 RPA021 RPA021 Burner NG RBH3401 RBH3801 RBH4201...
- Page 26 XG0145 - 110707 Canadian Heating Products Inc. Montigo Del Ray Corp. Langley, BC V4W 4A1 Ferndale, WA 98248...
