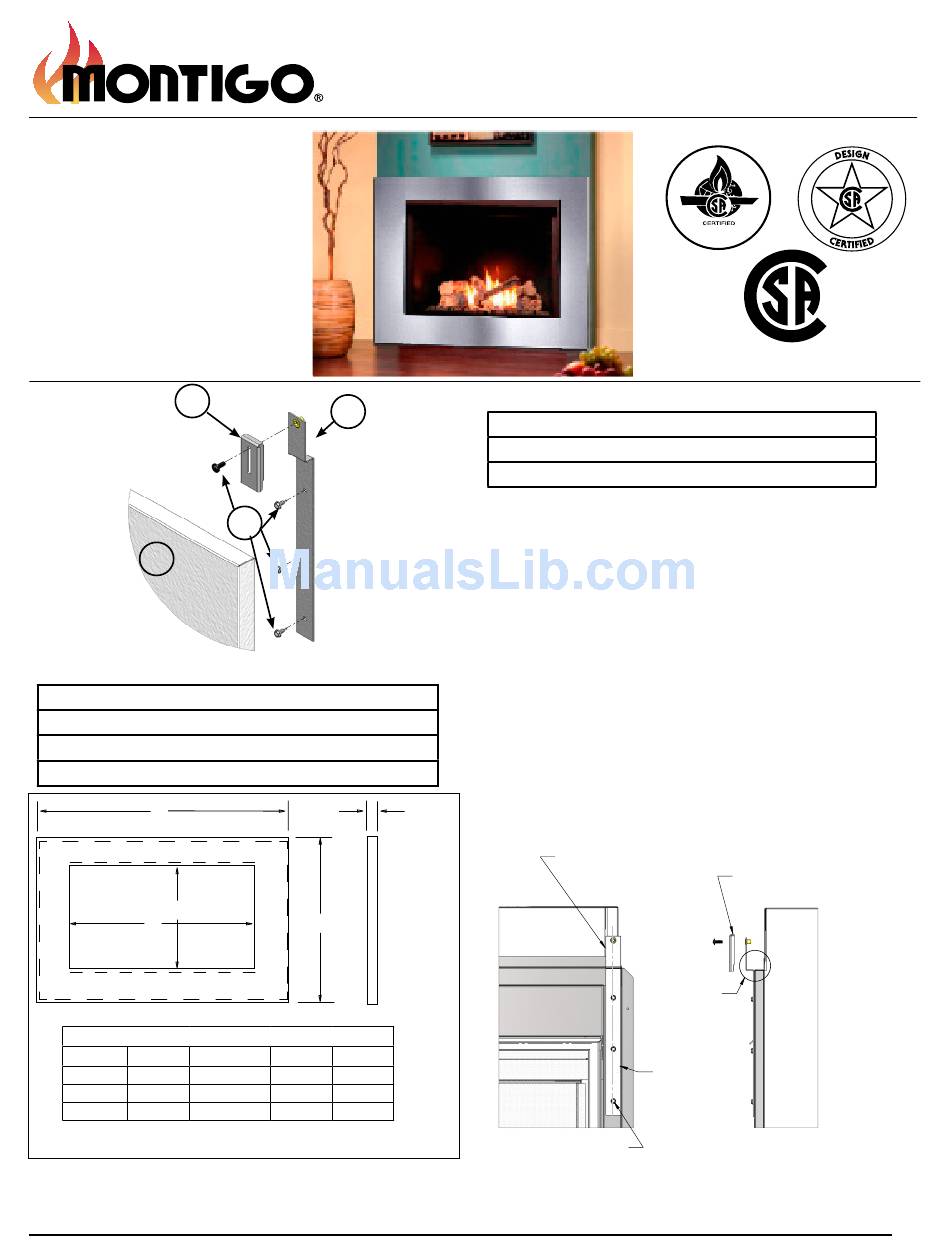

Montigo H34-DF Installing Manual

for use with:
H-Series; H34-DF
H-Series; H38-DF
H-Series; H42-DF
3
A
1
Parts Included
REVISIONS
1) 1-Pc, Surround
REV. DESCRIPTION
- .
2) 2-Pcs, Attachment Brackets
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CANADIAN HEATING PRODUCTS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CANADIAN HEATING PRODUCTS IS PROHIBITED.
3) 4-Pcs, Moving Brackets
4) 1-Pkg. Hardware
O
N
M
B Surround Dimensions
M
H34DF 31 7/16"
H38DF 35 3/16"
H42DF 39 5/8"
Figure 1. Surround Dimensions (tolerance within 1/16")
XG0903 - 150204.2
Installing the H34/H38/H42 Surround
2
4
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL 1/32"
TWO PLACE DECIMAL .015"
DATE CHANGED BY
THREE PLACE DECIMAL .005"
ALL BENDS ARE ASSUMED
TO BE 90 UNLESS NOTED
- -
OTHERWISE.
1"
P
C
N O P
24 1/4" 45 15/16" 38 7/8"
26 3/8" 49 11/16" 41"
30 7/16" 54 1/8" 45 1/16"
1) Power Drill, (eight 1/8" holes)
2) #8 Hexhead Driver, (to match hardware)
3) Carpenters level (Final Step, if required)
To install the Montigo Stainless steel or Black contemporary
surround to the H34DF, H38DF, or H42DF follow these steps.
Note: Four sided surround requires a raised installation.
Do not install nailing flange when installing four sided
surround. Refer to the installation and maintenance
manual for your fireplace for further information and
framing dimensions.
P38
NAME DATE Description FACEPLATE BRACKET
MANUAL
Drawn by PC 04/01/2015
DWG. NO. P38-MAN3
A
Revision / Date
Revision MATERIAL
Step 1. Mark the location of the holes needed.
Finish
SCALE 1:2 WEIGHT: SHEET 1 OF 1
From the package of hardware locate one of the Attachment
Brackets. Hold this part in place as shown in Figure 2. With a
pencil or pen mark the (6) six holes on the face of the fireplace
frame, (see Figure 2.)
Figure 2. Below.
ALIGN (2) ATTACHMENT BRACKETS
ON CENTER OF FRAME VERTICALS
(LEFT AND RIGHT SIDE TYPICAL
MOUNTING HOLES (3) PER SIDE
(LEFT AND RIGHT SIDE TYPICAL)
Figure 2. Bracket Alignment
REVISIONS
REV. DESCRIPTION
- .
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CANADIAN HEATING PRODUCTS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CANADIAN HEATING PRODU
C

Tools Required

Installing the Surround

Note: Ensure the brackets align with
MOVING BRACKETS (2)
(LEFT AND RIGHT SIDE
TYPICAL)
BRACKETS TO
BE FLUSH WITH
TOP OF FIREPLACE
FRAME (TYPICAL)
BRACKET TO BE
FLUSH WITH
OUTSIDE EDGE
OF FIREPLACE
(TYPICAL)
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
TWO PLACE DECIMAL
DATE CHANGED BY
THREE PLACE DECIMAL
ALL BENDS ARE ASSUMED
TO BE 90 UNLESS NOTED
- -
OTHERWISE.
®
US
P38
NAME DATE Description FACEPLATE
ALIGNMENT
PC 12/03/2015
Drawn by
1/32"
.015"
DWG. NO. P38-MAN
A
Revision / Date
.005"
Revision
MATERIAL
Finish
SCALE 1:2 WEIGHT:
