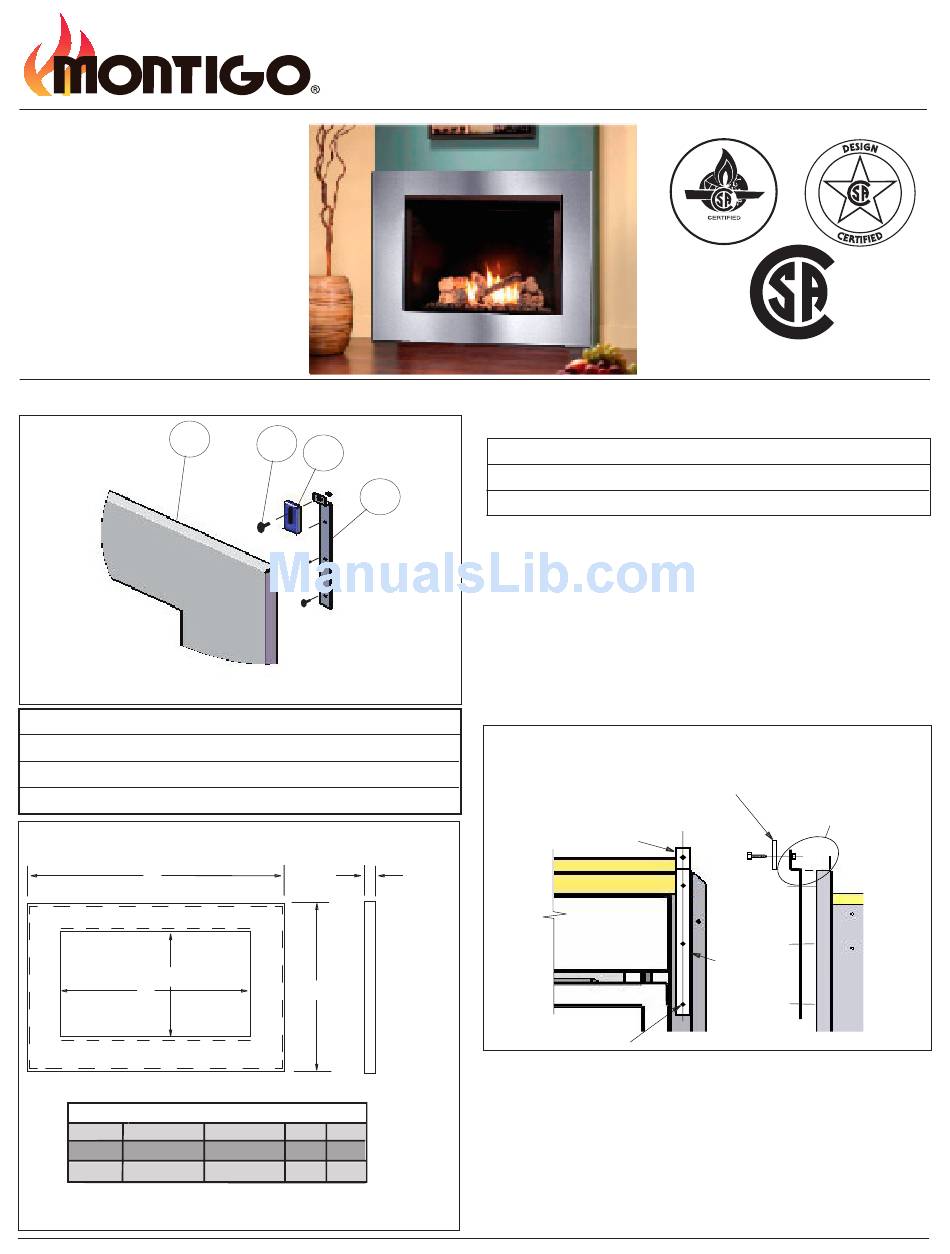

Montigo H38-DF Installing

for use with:
H-Series; H38-DF
H-Series; H42-DF
1

Parts Included

1) 1-Pc, Surround
2) 2-Pcs, Attachment Brackets
3) 2-Pcs, Moving Brackets
4) 1-Pkg. Hardware
Dimensions
O
N
M
Surround Dimensions
M (Hor. open'g)
H38DF 35
39
H42DF
Figure 1. Surround Dimensions
Installing the H38 & H42 Surround
4
3
2
1"
P
N (Vert. open'g) O P
5 /8
25 1 /8
49 1 /2
39
7 /16 1 /2 43
28 53 3 /32

Tools Required

1) Power Drill, (six 1/8" holes)
2) #8 Hexhead Driver, (to match hardware)
3) Carpenters level (Final Step, if required)

Installing the Surround

To install the Montigo Stainless steel or Black contemporary sur-
round too the H38DF & H42DF follow these few simple steps.

Step 1. Mark the location of the holes needed.

From the package of hardware locate one of the Attachment
Brackets. Hold this part in place as shown in Figure 2. With a pen-
cil or pen mark the (6) six holes on the face of the fireplace frame,
(see Figure 2.)
Note: Ensure the brackets align with Figure 2. Below.
Moving Brackets (2)
(Left and Right side Typical)
Align (2) attachment brackets
on center of frame verticals
(Left and Right side Typical)
Mounting Holes (3) per side.
(Left and Right side Typical)
Figure 2. Bracket Alignment

Step 2. Drill holes.

Before you go any farther now is the time to double check the loca-
tion of the holes, do they agree with Figure 2. If you are satisfied
with the location of the holes, use a punch to mark the holes, then
using a 1/8" drill, drill out the six holes.
®
C US
Brackets to be
flush with top of
fireplace frame,
(Typical)
Bracket to be
Flush with
outside edge
of fireplace,
(Typical)
