Installing the HFK-Series Cross-Flow Blower
for use with: H-Series DF/
DL & L-Series DF Gas
Fireplaces
H34-DF/DL; L38-DF
H38-DF/DL; L42-DF
H42-DF/DL; L52-DF
General Information
This blower kit is for installation on the f oll o wing models:
 Casa H34DL / H34DF
 Villa H38DL / H38DF
 Estado H42DL / H42DF
 L38-DF, L38-DF-I, L38-DF-A, L38-DF-F
 L48-DF, L42-DF-I, L42-DF-A, L42-DF-F
 L52-DF, L52-DF-I, L52-DF-A, L52-DF-F
KIT #
Contents
HFK34
2 x blowers, 1x fan cord assembly, 4 x mounting screws
HFK34H
2 x blowers, 1x fan cord assemby, 4 x mounting screws,
1x heat sensor switch
HFK42
2 x blowers, 1x fan cord assembly, 4 x mounting screws
HFK42H
2 x blowers, 1x fan cord assemby, 4 x mounting screws,
1x heat sensor switch
Before You Begin
Ensure that the power supply has been turned off at the breaker or fuse
before beginning the installation.
Shut off the gas supply at the shut-off valve, and ensure that the main
burner and pilot light have been turned off and the fireplace has been
cooled off for at least two hours be fore installation.
Installation
1a. Models H34DL, H38DL, and H42DL: Remove the lower louvres to
gain access to the control compartment. Go to Step 2.
1b. Models H-Series and L-Series: Remove the glass door to gain
access to the control compartment through the firebox.
2
Remove the accessories inside the firebox; logset, glass pebbles,
or decorative river rocks, etc
3. Carefully remove the decorative horizontal insulation panels.
This kit should be installed by a qualified person.
®
Check local codes and read all instructions prior to installation.
C
US
Ensure that power is off at
the electrical breaker or fuse
before beginning installation.
Ensure the Gas is off at the
shut-off before beginning
installation.
4. Shut off the gas to your fireplace and shut off the control valve. See
the instruction on the placard supplied with your fireplace.
Valve Bracket
Gas Inlet

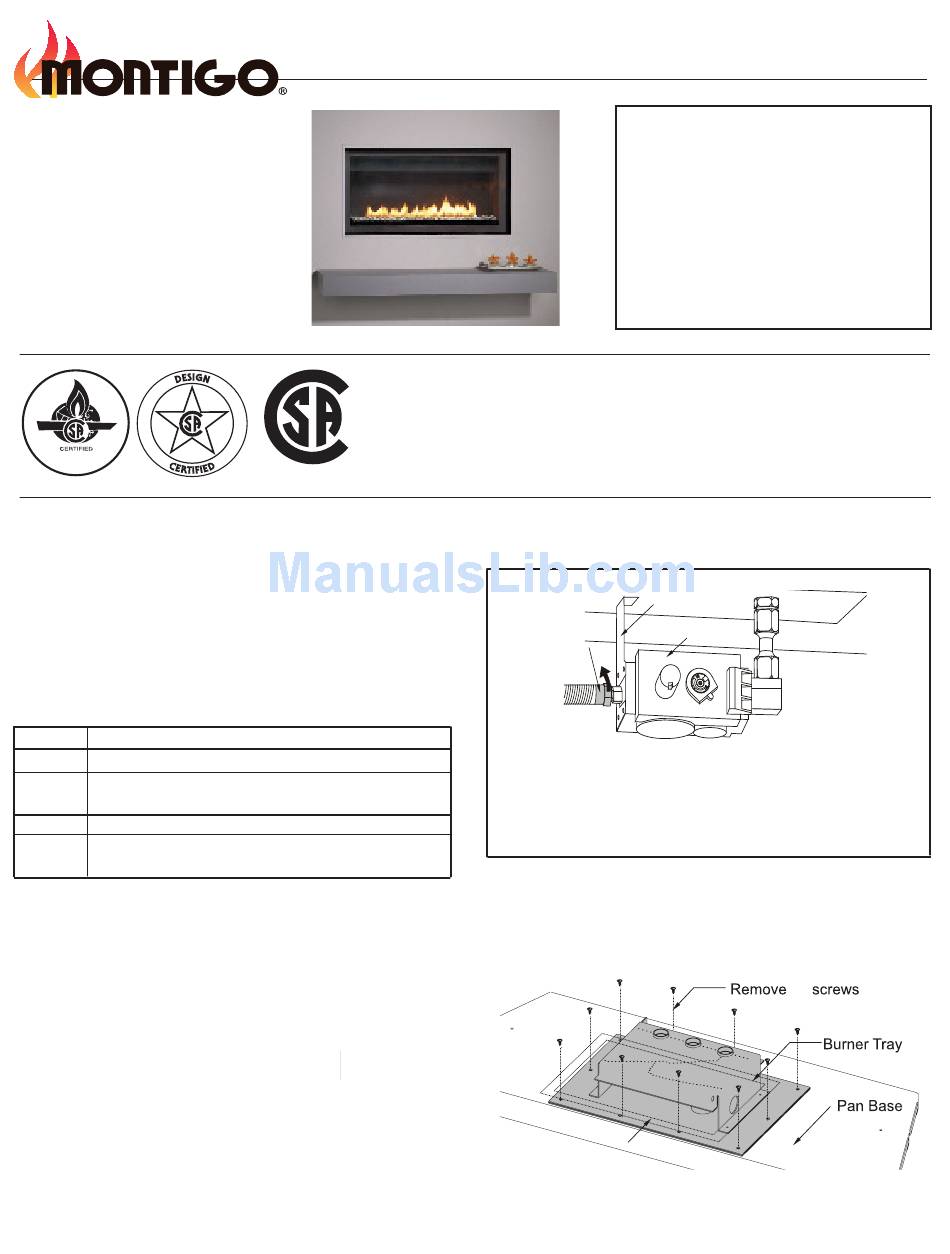

Figure 2. Shut off and disconnect the gas supply.
Note: Follow the shut-down procedures for the valve installed with
your fireplace. May not be exactly as shown.
(H34DF, H38DF, and H42DF Models Only)
NOTE: DO NOT CONTINUE UNTIL THIS STEP IS COMPLETED.
5. Remove the burner tray as shown in figure 3 for the H-DL Series
gas fireplace, and figure 3a for the L-Series DF fireplace.
Burner Tray Gasket
Figure 3. Removing the burner tray. (H34DF, H38DF, and H42DF
Models Only)
CAUTION:
Gas Valve
Pan Base
17

Advertisement

loading
Need help?

Need help?

Do you have a question about the H34-DF/DL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Montigo H34-DF/DL

  • Page 1 Installing the HFK-Series Cross-Flow Blower CAUTION: for use with: H-Series DF/ DL & L-Series DF Gas Ensure that power is off at Fireplaces the electrical breaker or fuse H34-DF/DL; L38-DF before beginning installation. Ensure the Gas is off at the H38-DF/DL; L42-DF shut-off before beginning H42-DF/DL; L52-DF installation. This kit should be installed by a qualified person.  ® Check local codes and read all instructions prior to installation.  4. Shut off the gas to your fireplace and shut off the control valve. See General Information the instruction on the placard supplied with your fireplace. This blower kit is for installation on the f oll o wing models:  Casa H34DL / H34DF Valve Bracket  Villa H38DL / H38DF Gas Valve Pan Base  Estado H42DL / H42DF Gas Inlet  L38-DF, L38-DF-I, L38-DF-A, L38-DF-F  L48-DF, L42-DF-I, L42-DF-A, L42-DF-F...
  • Page 2 Installing the HFK34/ HFK34H Cross-Flow Blower 8. On each blower, position the inside of the front top edge with the mounting brackets on each side of the control compart- ment, as shown in figures 4 and 5. Fasten both blowers in place with self tapping screws. 9. If the PPO box has not been factory installed, ensure that the household electrical supply is shut off at the breaker or fuse, and connect the two wire leads from the box to the household Burner Tray Gasket electrical supply. Insert the PPO box into the square hole in the right-hand side of the control compartment and screw into Figure 3a. Removing the burner tray. (L38DF, L42DF. L52DF Only) place. Mounting Plate 6. Install the first blower on the left side. Attach the connections on the fan cord with the connections on the blower. On models H34- DL, H38-DL, and L42-DL, slide the blowers carefully into place to the right of the valve. Take care not to damage any pilot tubing or gas controls. On models L38-DF and L-42-DF, slide the blower into Sensor place carefully through the opening in the base of the firebox. Heat sensor Blower power cord Figure 6. Installing the heat sensor. Plug the blower's power cord into the receptacle on the PPO box. Figure 4. Positioning the blower on the left side. 10. Install the heat sensor switch contained in the HFK34H blower 7. Install the second blower on the right side. Attach the remaining kit:...
