INSTALLER: Leave this manual with appliance
CONSUMER: Retain this manual for future
reference.
WARNING: If the information in this manual
is not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other
fl ammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier call
the fi re department.
Installation and service must be performed by
a qualifi ed installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certifi ed kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room
TCWS.54.CE 031007-40

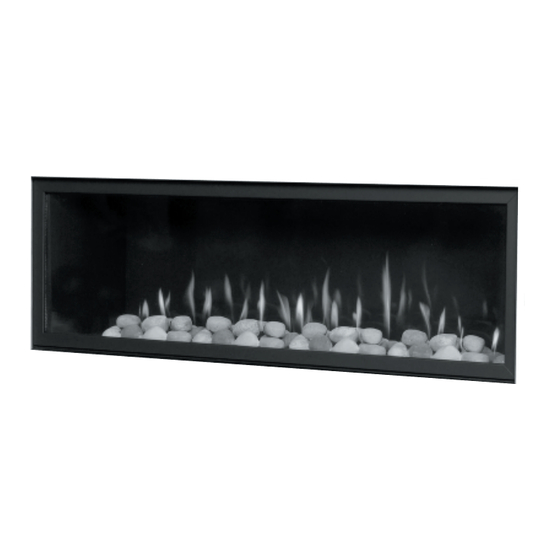

TCWS.54CE
WIDE SCREEN
INSTALLATION
AND OPERATING
INSTRUCTIONS
MODEL
TCWS54
SERIES C
MODULAR DIRECT VENT
FIREPLACE
5056.42521

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCWS.54CE and is the answer not in the manual?

Questions and answers

Summary of Contents for Town & Country Fireplaces TCWS.54CE

  • Page 1 FOR YOUR SAFETY Do not store or use gasoline or other TCWS.54CE fl ammable vapors and liquids in the vicinity of this or any other appliance. WIDE SCREEN WHAT TO DO IF YOU SMELL GAS INSTALLATION •...
  • Page 2: Table Of Contents

    Maestro Control System ............... 26 Remote Control Initial Setup ............26 Maestro Control System - Operation ..........27 Maintenance ................. 30 TCWS.54CE Replacement Parts ..........31 Replacement Parts – Maestro Control System ......32 Wiring Diagram ................33 Roof Termination Kit ..............34 Vent Pipe Dimensions ..............
  • Page 3: Caution

    This appliance must not be connected to a chimney fl ue serving a separate solid fuel burning appliance. TCWS.54CE 031007...
  • Page 4: Important Note For The Commonwealth Of Massachusetts

    A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation. TCWS.54CE 031007...
  • Page 5: Fireplace Dimensions

    *Mantel to appliance ......See Figure #2 **Maximum Mantel extension ....See Figure #2 Mantel support ............4 in. (102 mm) Vertical vent pipe ......... 1 3/4" in. (45 mm) UNIT MAY BE RECESSED UP TO 6” WITH NONCOMBUSTIBLE MASONRY TYPE MATERIAL TCWS.54CE 031007...
  • Page 6: Installation Requirements

    Grasp the sides of the frame. Slide the window frame to the right until it hits the stop. Fig. #5 Lift up and out to disengage from its bottom track.(Fig. #5) 3. Place the window frame in a safe place to avoid damage. Reassemble in reverse order. TCWS.54CE 031007...
  • Page 7: Standoffs

    The minimum clearances from the fi replace to combustible surfaces must be adhered to and are shown in Fig. #2 and Fig. #3. Fig. #7 EXAMPLES OF COMMON LOCATIONS SEE FIG #11 FOR DIMENSIONS TCWS.54CE 031007...
  • Page 8: Framing And Finishing

    NON-COMBUSTIBLE ZONE. DO NOT INSTALL ANY COMBUSTIBLE MATERIAL, ELECTRICAL WIRING, INSULATION, PLASTIC VAPOR BARRIER OR GAS PLUMBING WITHIN THE STEEL STUD FRAMING 9 5/8" 17 7/8" 55" ALL OTHER FRAMING CAN BE DONE WITH 36 1/2" CONVENTIONAL LUMBER TCWS.54CE 031007...
  • Page 9 MASONRY TYPE MATERIAL Fig. #11 MINIMUM COMBUSTIBLE 80 5/8" FRAMING DIMENSIONS 33" 46 1/4" 74 1/4" INCLUDING SHEETROCK 74 1/4" 55 1/4" 114" 22 1/16" 11 5/16" 5/8" 74 1/4" NOTE: FIREPLACE SHOULD BE IN ITS FINAL LOCATION BEFORE FRAMING. TCWS.54CE 031007...
  • Page 10: Steel Stud Framing Kit

    BRACE. 56 5/8” L 8293.8 STUD, CENTER 25” L 8293.9 LOWER CROSS BRACE. 56 5/8” L 8294 CONCRETE BOARD TOP 12” x 36 1/2” 8294.4 CONCRETE BOARD SIDES 9 5/8” x 17 7/8” 5049.993 SCREW, DRYWALL 1 1/4” TCWS.54CE 031007...
  • Page 11 Turn the framing kit over and secure all studs from the back. Fig. #12 FRONT VIEW (slightly angled) SCREW THROUGH BEND OUT FRAMING 3 LAYERS TABS TO FRONT LONG EDGE UP WIDE FACE FORWARD SLOTS UP SCREW INTO SIDE TCWS.54CE 031007...
  • Page 12 Secure the frame assembly to the wood frame through the tabs. 4. Install Concrete Board Top and Sides • Use drywall screws 10 to install the concrete board top (8), bottom (8) and sides (9). (Fig. #15) Fig. #15 TCWS.54CE 031007...
  • Page 13: Maestro Control

    9. Attach the electrical box for the supplied wall control to the framing in the desired location (up to 50 ft. away). (25 ft. is supplied with fi replace. An additional 25 ft. can be achieved by using the optional kit (Part # 5005.064) available from your dealer). OUTLET ADAPTER GAS CONNECTION TCWS.54CE 031007...
  • Page 14: Standing Pilot Function

    (Fig. #24) This should be depressed with a paperclip, pencil or other thin object. Once activated the pilot will run continuously. Please check with your local inspector to ensure that this is permitted in your area. LEARN BUTTON STANDING PILOT BUTTON TCWS.54CE 031007...
  • Page 15: Gas Pressure Check

    MANIFOLD PRESSURE Correct gas pressure requirement: Natural Gas Propane Min. Pressure 5.0" WC 12.5" WC (For purpose of input adjustment) Max. Pressure 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11" WC Minimum 2.1" WC 5.5" WC TCWS.54CE 031007...
  • Page 16: Venting

    HORIZONTAL SECTION AND 1 3/4 INCHES FROM THE VERTICAL SECTIONS OF THE VENT PIPE. Wall Termination Venting This fi replace can only be wall terminated using the TCVT. WSPVB power vent kit. Please see the instructions supplied with the kit for installation details. TCWS.54CE 031007...
  • Page 17: Roof Termination Venting Chart

    CAUTION: Under no condition should combustible material be closer than 1 3/4 inches from any part of the vent pipe. Only 45º elbows can be used in this vent system. 4' MAX. MINIMUM VENT HEIGHT TCWS.54CE 031007...
  • Page 18 Rotate the 90° brackets to accom- modate roof pitch. Attach the brackets to the roof joists with nails or building screws. Tighten the band around the vent pipe and secure in place with screws. ROOF SUPPORT BRACKET (TCVT.93915) TCWS.54CE 031007...
  • Page 19 (Fig. #29) Seal screw heads and joint with caulking to prevent any moisture entering the venting system. Fig. #29 VERTICAL TERMINATION CAP (TCVT.9365) VENT PIPE MASTIC STORM COLLAR (TC42.90665) FLASHING NOTE: ADJUSTABLE FOR VARIOUS ROOF PITCHES, FROM FLAT ROOF TO 12/12 PITCH ROOF. TCWS.54CE 031007...
  • Page 20: Vent Terminal Clearance

    Wall/Offset Support ..........TCVT.811XOS Roof Termination Kit ..........TCVT.RTA Wall Shield/Ceiling Firestop ........TCVT.THIMA Roof Flashing, Adjustable ........TCVT.811FLADJ Roof Flashing, Flat ..........TCVT.811FLFLT Roof Flashing, Steep ..........TCVT.811FLSTP or any fl ashing that fi ts 11" pipe TCWS.54CE 031007...
  • Page 21: Vent Pipe Sealant

    VENT PIPE SELF-ADHESIVE TAPE (SUPPLIED) All outer joints of the vent pipe must be sealed with the approved "High Temperature" self- adhesive aluminium tape provided. Wrap the tape completely around the joint and press fi rmly in place. TCWS.54CE 031007...
  • Page 22: Vent Restrictor Adjustment

    Flame height is low. • Flame has excessive movement. FULLY OPEN To adjust the restrictor: 10’ • Loosen the screw holding the restrictor. • Move the restrictor to its intended opening. • Re-tighten the screw. Fig. #34 OPENING VENT RESTRICTOR TCWS.54CE 031007...
  • Page 23: Firebox Panels Installation

    Notch at bottom of side panel faces to front of unit. Repeat step 4 for the other side panel. Note: Install burner now. Fig. #39 Place the front panel on the front lip of the fi rebox, wide fl ange facing the front. (Fig. #39) TCWS.54CE 031007...
  • Page 24: Finishing Touch Trim Kit Instructions

    Place two larger magnets on back of the top and bottom rails. Attach the side rails. Even the ends up with the door frame. Attach the top and bottom rails and adjust so mitres are even at the corners. Larger Magnets Top or bottom rail Side rails TCWS.54CE 031007...
  • Page 25: Lighting Instructions

    It is normal for fi replaces fabricated of steel to give off some expansion and/or contraction noises during the start up or cool down cycle. Similar noises are found with your furnace heat exchanger or cook stove oven. TCWS.54CE 031007...
  • Page 26: Maestro Control System

    5. Press OK and the “minute” value will fl ash. HOUR: 6. Use the up and down arrows to set the MIN. “minute” value. 7. Press OK and the “day” value will fl ash. HOLD A2 HOLD A1 TCWS.54CE 031007...
  • Page 27: Maestro Control System - Operation

    3. Press the OK button and the timer is set and the control is in countdown timer mode. 4. To exit the timer mode press the Program, Manual or Thermostat buttons. Please note that the fi rst press of the Manual button will turn the fi replace off. TCWS.54CE 031007...
  • Page 28 To switch out of program mode, simply press one of the manual, timer or thermostat mode buttons. Please note that if the manual button is pressed it will turn the fi replace off. TCWS.54CE 031007...
  • Page 29 5. The fi replace is now in thermostatic mode. To exit the thermostatic mode press the program, manual or timer buttons. Please note that the fi rst press of the manual button will turn the fi replace off. TCWS.54CE 031007...
  • Page 30: Maintenance

    Viewing glass may be cleaned as necessary with fi replace glass cleaner. b) Exterior fi nish may be cleaned with mild soap and water. CAUTION: Do not use abrasive cleaners on glass or any other part of the fi replace. Do not clean glass when hot. TCWS.54CE 031007...
  • Page 31: Tcws.54Ce Replacement Parts

    (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. TCWS BODY ASSEMBLY .....TCWS.54CE PANEL SETS BLACK PORCELAIN ......TCPN.775.C FRAME & GLASS ASSEM .....TCWS.8220 BROWN PORCELAIN ....TCPN.775CB.C FRAMING KIT .........TCWS.54FRKIT FINISHING TOUCH TRIM KIT ..TCRP.54WSTRIMKIT...
  • Page 32: Replacement Parts - Maestro Control System

    WING NUTS (2) 1m TC30 MINIMUM RATE SCREW, NG #4..WALL SWITCH ASSEMBLY KIT INLET PLATE BATTERY HOLDER INLET PLATE GASKET WALL SWITCH COVER PLATE ELEC BULKHEAD GASKET WALL SWITCH 1/2" BULKHEAD FITTING 1/4" BULKHEAD FITTING ELEC BULKHEAD FITTING TCWS.54CE 031007...
  • Page 33: Wiring Diagram

    Wiring Diagram Fig. #54 WIRING DIAGRAM TCWS.54CE 031007...
  • Page 34: Roof Termination Kit

    Roof Termination Kit TCVT.RTA Fig. #55 VERTICAL TERMINATION CAP TCVT.9365 STORM COLLAR TC42.90665 CEILING FIRESTOP ROOF SUPPORT TCVT.THIMA BRACKET TCVT.93915 TCWS.54CE 031007...
  • Page 35: Vent Pipe Dimensions

    Fig. #56 11" 12" PIPE ..10 1/4" 18" PIPE ..16 1/4" 24" PIPE ..22 1/4" 48" PIPE ..46 1/4" 10 15/16" 9 1/2" TCVT.811X12ADJ 11 1/8" TCVT.811X _ _ 12 9/16" 13 1/8" TCVT.811XLB45 TCWS.54CE 031007...
  • Page 36: Vent Offset Chart

    13 7/16" 23 1/4" 18" PIPE 17 9/16" 27 5/8" 24" PIPE 21 7/8" 31 3/4" 48" PIPE 38 3/4" 44 7/8" ADDING AN ADJUSTABLE SECTION TO PIPE WILL INCREASE OFFSET BY 2 1/8" TO 6 3/4" 1/4” TCWS.54CE 031007...
  • Page 37: Safety Label Location

    AVERTISSEMENT: Une installation, un réglage, une modifi cation, une réparation ou un entretien mal effectué peut causer des dommages matériels ou des blessures. Voir la notice de l’utilisateur qui accompgne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez un installateur, un technicien agréé ou le fournisseur de gaz. 060907 5050.72037 1-TCWS.54CE TCWS.54CE 031007...
  • Page 38: Tcws.54Ce

    Notes TCWS.54CE 031007...
  • Page 39 Notes TCWS.54CE 031007...
  • Page 40 Technical support: 1-877-715-2664 Web site: www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
