For replacement
parts visit
WENPRODUCTS.COM
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
VARIABLE SPEED
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM

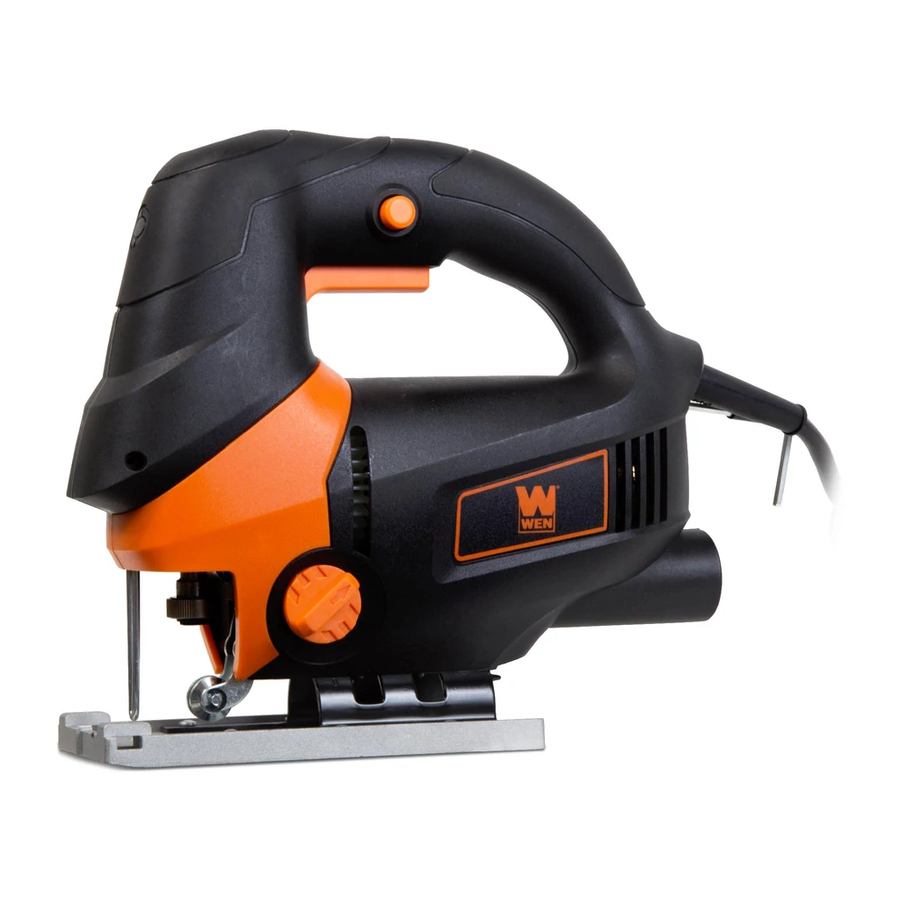

JIG SAW
Model # 3602
bit.ly/wenvideo
(M-F 8AM-5PM CST)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3602 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 3602

Summary of Contents for Wen 3602

  • Page 1 WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Electrical Information Know Your Jig Saw Assembly and Adjustments Operation Maintenance Exploded View and Parts List Warranty TECHNICAL DATA 3602 Model Number: 120 V, 60 Hz, 6A Motor: 800 - 3,000 RPM Speed: 4 in. Cutting Wood Capacity: Cutting Metal Capacity: 3/8 in.

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFE- TY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.

  • Page 4: Specific Safety Rules For Jig Saw

    GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories.

  • Page 5: Electrical Information

    SPECIFIC RULES FOR JIG SAW 8. After changing blades, rotate the blade cylinder (cutter drum) to make sure the blades don’t hit any part of the blade head housing and that the blade locking screws are tight. Loose or misaligned blades have the potential to strike tool housing and damage the tool as well as cause possible injury.

  • Page 6: Know Your Jig Saw

    ELECTRICAL INFORMATION WARNING: This tool is for indoor use only. Do not expose to rain or use in damp locations. Guidelines for using extension cords Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.

  • Page 7: Assembly And Adjustments

    ASSEMBLY AND ADJUSTMENTS REMOVING OR INSTALLING JIG SAW BLADE WARNING: To avoid injury from accidental startups, turn switch OFF and remove the plug from the power source outlet before making any adjustments. WARNING: These blade cannot and should not be re-sharpened. WARNING: The jig saw blade is sharp and fragile and must be handled carefully to avoid injury to the user and damage to the blade.

  • Page 8: Screw 13

    ASSEMBLY AND ADJUSTMENTS ADJUSTING THE FOOTPLATE FOR BEVEL CUTS The footplate can be set to make either a straight cut or a left or right bevel cut at an angle of 45°. 1. Loosen the two screws on the underside of the base plate (1) until the base plate slides back and forth. 2.

  • Page 9: Operation

    OPERATION PLUNGER SPEED The required cutting speed or stroke rate depends on the material being cut, the type of blade being used, and the feed rate preferred by the operator. The best speed for a particular application is largely determined by experi- ence though as a general rule, slower speeds are for denser materials and faster speeds for softer materials.

  • Page 10: Maintenance

    To maintain peak efficiency of the motor, we recommend examining the brushes every two to six months. Only genuine WEN replacement brushes designed specifically for your tool should be used. BEARINGS: Bearings that become noisy (due to heavy load or abrasive material cutting) should be replaced as soon as possible to avoid overheating or motor failure.

  • Page 11: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST...
  • Page 12 3602-047 Hexagonal screw 3602-021 Pressure spring 3602-048 Guide wheel 3602-022 Steel ball 3602-049 Guide wheel pin 3602-023 Clamp spring 3602-050 Cutter lifting reset spring 3602-024 Stator 3602-051 Locating pin 3602-025 Armature 3602-052 Right housing coat 3602-026 Bearing 3602-054 Hex wrench...

  • Page 13: Blade

    LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
  • Page 14 Thanks for remembering...
