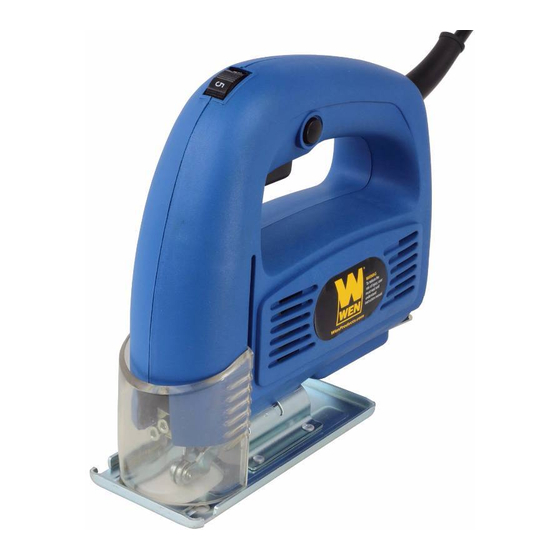

Summary of Contents for Wen 3702
-
Page 3: Table Of Contents
Blade installation………………………………………………………… 9 Operating your jig saw…………………………………………………... Exploded view and parts list……………………………………………… 11 Warranty………………………………………………………………… TECHNICAL DATA Variable Speed Jig Saw Model: 3702 Motor: 120 V, 60 Hz, 3.5 A Variable Speed: 500 to 3000 SPM Stroke Length: 3/4" Cutting Angles: 45º... -
Page 4: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your drill press works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: To avoid mistakes that could cause serious injury, do not plug in the Jig Saw until the following steps have been read and understood. - Page 5 GENERAL SAFETY RULES (CONTINUED) 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled footwear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instructions for lubricating and changing accessories.
-
Page 6: Specific Safety Rules For Jig Saw
SPECIFIC SAFETY RULES FOR JIG SAW 1. Always keep hands and fingers away from the blade. 2. Do not cut material that does not have a flat surface, unless a suitable support is used. 3. Make sure blade is securely locked. 4. - Page 7 SPECIFIC SAFETY RULES FOR JIG SAW (CONTINUED) 22. Always turn off saw before disconnecting it to avoid accidental starting when reconnecting to a power source. 23. Stay alert and exercise control. Watch what you are doing and use common sense. DO NOT operate tool when you are tired.
-
Page 8: Electrical Information
ELECTRICAL INFORMATION Guidelines for using extension cords Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. -
Page 9: Blade Installation
BLADE INSTALLATION Caution: Before installing or changing a blade, be sure the saw is unplugged from the power supply. 1. Loosen the two blade lock bolts (use hex key supplied) enough for a blade to be removed or inserted. Note: there is a position notch in the blade cover and the back plate to which the blade clip is screwed. - Page 10 MITER CUTS The base plate can be tilted to cut any angle between 0º and 45º right and left. Loosen the two base plate adjustment screws. Then slide the base plate toward the back of the saw. Rotate the base left or right to the desired angle, slide the base plate forward until the blade guide is in the correct position, then tighten base plate screws.
-
Page 11: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST... - Page 12 PATS LIST Part Stock # Description Part Stock # Description 1 3702‐001 Speed control PCB 18 3702‐018 Slide Mass 2 3702‐002 Switch 19 3702‐019 Slide Rod 3 3702‐003 Screw ST4.2x19 20 3702‐020 Felt 4 3702‐004 Right half housing 21 3702‐021 Blade clamp 5 3702‐005 Cord clip ...
-
Page 13: Warranty
GREAT LAKES TECHNOLOGIES, LLC ("Seller") warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship for a period of one (1) year from date of purchase. Ninety days for all WEN products, if the tool is used for professional use.
