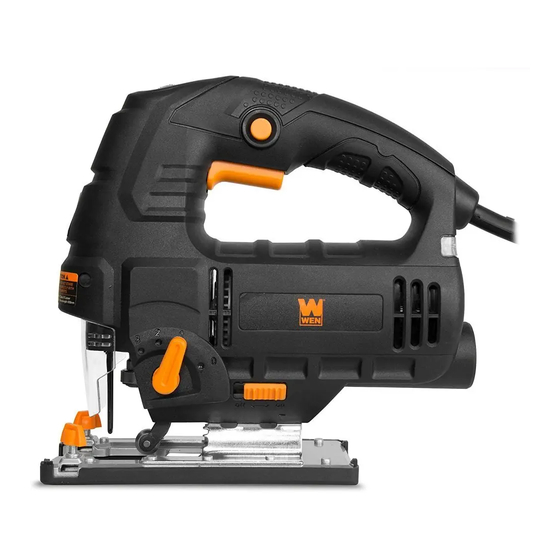

MODEL 33606
VARIABLE SPEED
JIG SAW
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 33606 and is the answer not in the manual?

Questions and answers

Allen Kurnik
May 13, 2025

what is the stroke length of the 6.6 Amp Variable Speed Orbital Jigsaw with Laser

0

Subscribe to Our Youtube Channel

Related Manuals for Wen 33606

Summary of Contents for Wen 33606

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Jig Saw Safety Warnings ................. 6 Electrical Information ..................8 BEFORE OPERATING Know Your Jig Saw ...................9 Assembly & Adjustments ................10 OPERATION & MAINTENANCE Operation ....................... 13 Maintenance ....................14 Exploded View &...

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Jig Saw. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this op- erator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Jig Saw Safety Warnings

    JIG SAW SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. JIG SAW SAFETY 1. WORK ENVIRONMENT. Do not operate the tool in wet 6.
  • Page 7 JIG SAW SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. JIG SAW SAFETY (CONT.) LASER SAFETY 12. MAKING ADJUSTMENTS. Always turn off and un- ATTENTION: LASER RADIATION.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION DOUBLE-INSULATED TOOLS The tool’s electrical system is double-insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal motor components with protecting insulation.

  • Page 9: Before Operating

    KNOW YOUR JIG SAW UNPACKING With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the jig saw from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not discard the packaging until everything is removed.

  • Page 10: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS WARNING! To avoid injury from accidental startups, be sure that the tool is switched off and disconnected from the power supply before inspecting the unit, making adjustments or changing accessories. INSTALLING/REPLACING THE JIG SAW BLADE The jig saw is capable of cutting a variety of materials when fitted with the correct blade. Always select the suitable blade for your operation.
  • Page 11 ASSEMBLY & ADJUSTMENTS SETTING THE BLADE ORBITAL ACTION The blade orbit selector lever controls the blade orbit travel distance. There are 4 settings, indicated on the side housing (Fig. 4). At the 0 setting, the blade moves up and down in a straight line for smooth cutting. At the 3 setting, the blade moves in an elliptical stroke for fast, aggressive cutting.
  • Page 12 ASSEMBLY & ADJUSTMENTS ADJUSTING THE BEVEL ANGLE Fig. 8 The base plate of your jig saw is pre-adjusted to 0° for making straight cuts. You can create bevel cuts by setting the base plate up to 45° to the left or right. To adjust the angle of the base plate: 1.

  • Page 13: Operation & Maintenance

    OPERATION WARNING! To prevent serious injury, make sure all the instructions have been read and understood before operating this tool. Check that the power switch works properly before plugging the tool into the power supply. WARNING! Wear safety goggles at all times that comply with ANSI Z87.1. Use ear protection such as plugs or muffs during extended periods of operation.

  • Page 14: Maintenance

    MAINTENANCE WARNING! To avoid accidents, always disconnect the tool from the power supply before cleaning or per- forming any maintenance. CLEANING 1. Clean the tool after every use with a soft cloth. Keep the ventilation openings free from dust and debris. Avoid us- ing solvents when cleaning plastic parts.

  • Page 15: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase.
  • Page 16 33606-034 Hex Wrench, 3mm 33606-036 Screw ST4x12 33606-005 Ball Slide 33606-037  Sealing Column 33606-006 Tool Reset Spring 33606-038 Transparent Blade Guard Reciprocating Lever 33606-007 Assembly 33606-039 Orbital Adjustment Shaft 33606-008 Shaft Sleeve 33606-040 Ball 4 33606-041 Knob Positioning Spring 33606-009...

  • Page 17: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 THANKS FOR REMEMBERING V. 2020.04.27...
