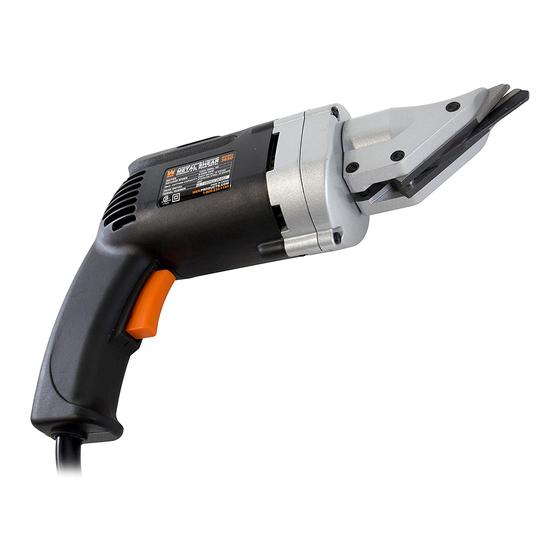

Variable speed electric shear
Hide thumbs Also See for 3650:

Advertisement

Table of Contents

For replacement parts visit
WENPRODUCTS.COM
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
VARIABLE SPEED
ELECTRIC SHEAR
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
Model # 3650
bit.ly/wenvideo
(M-F 8AM-5PM CST)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3650 and is the answer not in the manual?

Questions and answers

Related Manuals for Wen 3650

Summary of Contents for Wen 3650

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    General Safety Rules Electrical Information Know Your Shear Operation Maintenance Exploded View and Parts List Warranty TECHNICAL DATA 3650 Model Number: 120 V, 60 Hz, 4A Motor: Speed: 0 to 2500 strokes per minute 14 gauge for Sheet Metal Maximum Cutting Capacity: 20 gauge for Stainless Steel 360°...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFE- TY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.
  • Page 4 GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories.

  • Page 5: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 6: Know Your Shear

    VARIABLE SPEED TRIGGER SWITCH AND LOCK BUTTON This WEN Variable Speed Electric Shear is equipped with a pressure sensitive variable speed trigger and a lock button for easy use. To use these: 1.
  • Page 7 OPERATION HOW TO SHEAR Before cutting your workpiece, make some practice cuts on a piece of scrap material to make sure that you can adequately operate the tool. Place the shearing jaws at the edge of the workpiece with the piece of metal running between the blades. Squeeze the variable speed trigger switch to your preferred speed.

  • Page 8: Maintenance

    To maintain peak efficiency of the motor, we recommend examining the brushes every two to six months. Only genuine WEN replacement brushes designed specifically for your tool should be used. The brushes can be reached by unscrewing the four screws along the handle and removing the left half of the handle’s housing.

  • Page 9: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST No. Part Number Description 3650-001 Middle Blade 3650-002 Bushing 3650-003 Right Blade 3650-004 Left Blade 3650-005 3650-006 Blade Collar 3650-007 Screw 3650-008 3650-009 Bearing 3650-010 Bearing Sleeve 3650-011 Washer 3650-012 Washer 3650-013 Bearing 3650-014 Spring Washer...
  • Page 10 LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
