OR-HD62CD
6 x 2 UHD HDMI Switch with Audio De-Embedding
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-HD62CD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP OR-HD62CD

Summary of Contents for CYP OR-HD62CD

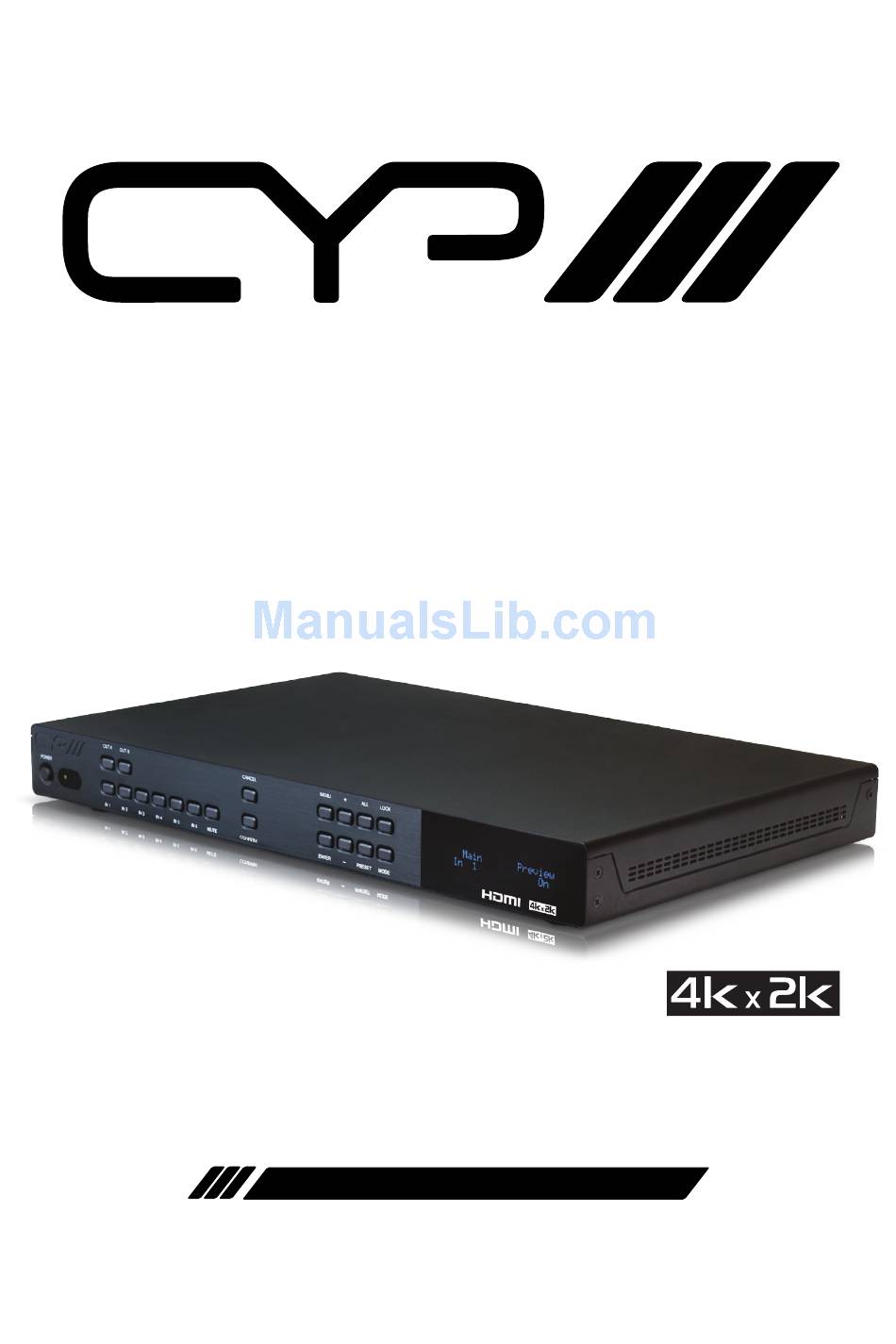

  • Page 1 OR-HD62CD 6 x 2 UHD HDMI Switch with Audio De-Embedding OPERATION MANUAL...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ...........10 6.3 OSD Menu ..........11 6.4 Remote Control ........16 6.5 RS-232 Protocols ........17 6.6 RS-232 &...

  • Page 6: Introduction

    1. INTRODUCTION The OR-HD62CD allows HDMI signals to be routed from any of the six connected HDMI sources for display on two connected HDMI displays. With fast switching technology this device dramatically improves the sync time to the connected HDMI displays over traditional switchers.

  • Page 7: Features

    5. FEATURES HDMI, HDCP 1.1, DVI 1.0* compliant Resolutions supported: HDTV - 480i to 1080p plus 1080p24fps, and 4K2K; PC - VGA to WUXGA; High Definition audio supported: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + 7.1 Channel LPCM RS-232, Telnet or IP Control, IR Remote Control (supplied), Web GUI Control Supports audio extraction from HDMI input to Optical output, input...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 9 10 12 14 OUT A OUT B CANCEL MENU LOCK POWER IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 MUTE CONFIRM ENTER PRESET MODE 1113 POWER: Press this button to turn ON the device, the LED will illuminate.
  • Page 9 Preset mode: Press “PRESET”, the OLED menu will show Preset then select IN 1~6. Preset 1~6 after the selection, press “CONFIRM” to confirm the selection or press “CANCEL” to cancel the selection. All: (SWAP) Press this button to select all outputs to display with an input source. When in PIP mode, press to swap between Main video source and Sub video source.

  • Page 10: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT S/PDIF OUT SERVICE CONTROL RS232 IR IN DC 5V HDMI IN: Connect from source equipments such as Blu-ray/DVD/PS3 players, Set-Top-Box or any HDMI equipped source device for input signal sending. HDMI OUT: Connect to HDMI TV/display or HD Amplifier for output image and or audio display.

  • Page 11: Osd Menu

    6.3 OSD Menu Main Menu Sub Menu Description Default EDID Mode All Input port is using same EDID. In menu “EDID All”, can select suitable EDID. Appoint Each Input port can select individual EDID. In menu “EDID IN1~6” select suitable EDID. Exit EDID All Sink A...
  • Page 12 Main Menu Sub Menu Description Default 8/2D/PCM/ Standard EDID, Y420 Content: deep color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, AC3/Y420 Content: deep color/2D3D/audio/ native resolution Exit EDID IN1 Same EDID All Select Input 1’s EDID Same EDID All EDID IN2 Same EDID All Select Input 2’s EDID Same EDID All EDID IN3...
  • Page 13 Main Menu Sub Menu Description Default IN6 Standard / Set IN6 in Apple/ Standard Apple Standard mode Exit Preview Mode View All 1 Main video source View All and 5 Sub video source 1 Main video source and 1 Sub video source Exit Preview View...
  • Page 14 Main Menu Sub Menu Description Default Exit Network Setup IP Mode DHCP , Static DHCP Setup Static IP 192.168.5.83 Mask Setup Static Netmask 255.255.255.0 Gate Setup Static Gateway 192.168.5.254 Do Re-Link Re-Link. After setup Network, the system need to re- link Exit Network...
  • Page 15 Main Menu Sub Menu Description Default Video Format Content: deep color, 2D or 3D, 4K2K Audio Format Content:PCM, BitStream, HBR Exit Sink B Info Same Sink A Detect and Analysis Info Output B display’s EDID Firmware FW Version Display the model number and FW version Update FW Update...

  • Page 16: Remote Control

    6.4 Remote Control POWER: Press this button to switch the system ON/OFF. OUT A IN 1 OUT A/B: Press these buttons once a time OUT B TAKE IN 2 along with an IN buttons to select an input MODE CANCEL IN 3 source for an output display.

  • Page 17: Rs-232 Protocols

    +/-: Press these buttons to move up/down under menu selection. IN1~6: Press the IN buttons to select an input from the 6 input sources. MUTE: Press this button to mute video and audio that OUTA/B selected. 6.5 RS-232 Protocols OR-HD62CD Remote Control Assignment Assignment ► ◄...

  • Page 18: Rs-232 & Telnet Commands

    6.6 RS-232 & Telnet Commands Command Name Description Description of parameter POWER OFF NONE POWER ON NONE IPCONFIG DISPLAY THE CURRENT NONE IPCONFIG SIPADDR XXX. SET ETHERNET IP AD- XXX=0~255 XXX.XXX.XXX DRESS SNETMASK XXX. SET ETHERNET XXX=0~255 XXX.XXX.XXX NETMASK SGATEWAY XXX. SET ETHERNET XXX=0~255 XXX.XXX.XXX...
  • Page 19 Command Name Description Description of parameter EDIDIN N1 N2 SET INPUT N1 EDID N1=1-6 SOURCE N2=0-7 HDCPIN SHOW ALL INPUT NONE HDCP STATUS HDCPIN N1 SHOW INPUT N1 HDCP N1=1-6 STATUS HDCPIN N1 N2 SET INPUT N1 HDCP N1=1-6 ON/OFF N2=(0)OFF (ON) PRESET SHOW ALL PRESET...
  • Page 20 Command Name Description Description of parameter SINKINFO SHOW ALL OUTPUT NONE INFORMATION SINKINFO N1 SHOW OUTPUT N1 N1=A-B INFORMATION INNAME SHOW ALL INPUT NONE NAME INNAME N1 SHOW INPUT N1 N1=1-6 NAME INNAME N1 N2 SET INPUT N1 NAME N1=1-6 N2=ABCDEFGH OUTNAME SHOW ALL OUTPUT...

  • Page 21: Telnet Control

    6.7 Telnet Control Before attempting to use the telnet control, please ensure that both the Scaler (via the ‘CONTROL’ port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the ‘Start’ menu and type “cmd”...

  • Page 22: Web Gui Control

    6.8 Web GUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (available from LCM monitor or OSD menu) on the web address entry bar. The browser will display the device’s Status, IO Status, Matrix Control, Settings and Network Configuration control pages for users to control.
  • Page 23 Click on Matrix Control for outputs and EIDID selections. Click on Settings to set each input’s HDCP Control and Preset Configuration.

  • Page 24: Connection Diagram

    Click on Network Configuration to set the device’s IP configuration. Once the changes is saved the system will reset the IP address on the device automatically and user will need to re-enter the IP address to continue the Web GUI function. 7.

  • Page 25: Specifications

    8. SPECIFICATIONS Frequency Bandwidth 300Mbps to 3Gbps Input Ports 6 x HDMI 1 x USB (Service only) 1 x Control 1 x RS-232 1 x IR Output ports 2 x HDMI 2 x Optical (S/PDIF) Resolution 480i~1080p@50/60, 1080p@24, 4K x 2K (3840x2160/4096x2160@30Hz) Output Level VGA~WUXGA...
  • Page 26 DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50 1920x1080p@60 1920x1200@60(RB) 3840x2160@30 4096x2160@24...

  • Page 27: Acronyms

    Audio Sampling Rate Up to 192 kHz HDMI input (Up to 192kHz) HDMI Optical output output LPCM 2CH LPCM 5.1CH × LPCM 7.1CH × Dolby Digital 2~5.1CH/ DTS 2~5.1CH Dolby TrueHD/ DTS-HD Master Audio × Audio Format LPCM 2/5.1/7.1CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Dolby TrueHD and DTS-HD Master Audio HDMI input HDMI...
  • Page 28 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.04...
