Codelocks Support Portal

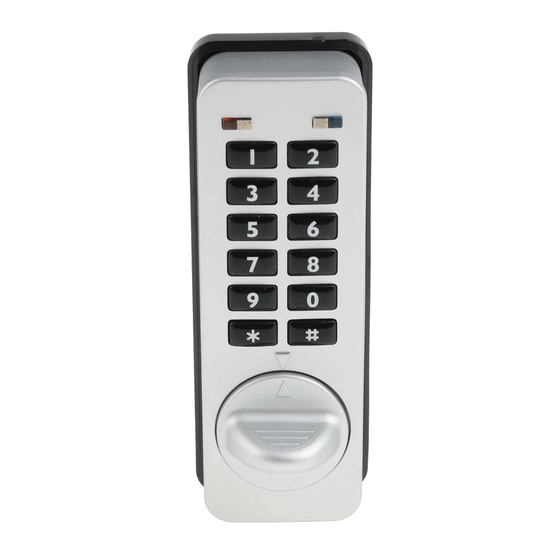

NANO90 - Programming & Operating
Instructions
Codes - The Basics
The KitLock Nano90 has four code levels available:
i) Master Code
ii) Sub-Master Code
iii) User Code
iv) Technician Code
The NANO90 is supplied with two factory set codes:
Master Code: 11335577
User Code: 2244
When fitted immediately change the Master and User Code.
All Master Codes and Sub-Master Codes are 8 digits long.
All User Codes are 4 digits long.
All Technician Codes are 6 digits long.
The lock 'open' time is set at 4 seconds.
Suitable for doors up to 400 x 400mm
Functions
Before programming select the most appropriate function for the application.
A) Private Use
Important Note: This is the default function and is already pre-programmed in new locks.
This is the most common function and is used where the same code will be repeatedly used.
Advertisement
Table of Contents
Related Manuals for CODELOCKS NANO90
Summary of Contents for CODELOCKS NANO90
- Page 1 Master Code ii) Sub-Master Code iii) User Code iv) Technician Code The NANO90 is supplied with two factory set codes: Master Code: 11335577 User Code: 2244 When fitted immediately change the Master and User Code. All Master Codes and Sub-Master Codes are 8 digits long.
- Page 2 Operating Instructions The NANO90 has a 10 button keypad, * and # button. The * and # buttons are only used for programming functions. Every program command must commence by pressing the # button. If necessary the # button may be used to clear a previous entry if a mistake is made.
- Page 3 • Blue LED = Code accepted • Red LED = Code rejected User Code The User Code can: Open the lock Change the User Code Technican Code The Technician Code can: Open the lock in Technician mode without erasing User Code when in B) Public Use Function.
- Page 4 The lock will operate for 100 times with low battery. Battery Override The NANO90 has been designed so a PP3 battery can be placed against the external contacts so that the lock can be opened to replace the battery should it fail. The procedure is as follows: Place the contact points of the PP3 battery against the contact points next to the LEDs.
- Page 5 Set or Change the User Code #Master Code • 02 • User Code •• Example: #11335577 • 02 • 9999 •• Result: New User Code 9999 now operative. Delete the User Code #Master Code • 03 •• Example: #11335577 • 03•• Result: User Code deleted. Set or Change the Sub-Master Code #Master Code • 04 • Sub-Master Code • Sub-Master Code ••...
- Page 6 #Sub-Master Code • 08 •• Example: #87654321 • 08 •• Result: User Code deleted. User Codes Commands Change the User Code #User Code • New User Code • New User Code •• Example: #2244 • 6688 • 6688 •• Result: User Code now 6688. Special Master Code Commands Public Use #Master Code • 09 •• Example: #11335577 • 09 •• Result: The lock will now remain open until the next user enters their own personal code into the lock as follows: Step 1 - Enter 4 digit code close the locker which will now be locked.
- Page 7 Note: If lock is opened with a Master Code the User Code will be erased. Delete the Technician Code #Master Code • 13 • 13 •• Example: #11335577 • 13 • 13 •• Result: Technician Code deleted. POI-KL90-v2:0716 © 2019 Codelocks Ltd. All rights reserved. https:/ /desk.zoho.eu/portal/codelocks/en/kb/articles/nano90-programming-operating-instructions...
