CODELOCKS CL4500 Getting Started Manual

CL4500 Getting Started Guide

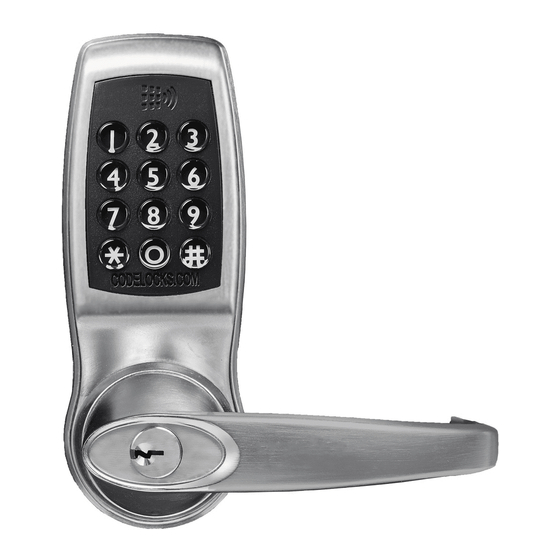

About CL4500
This range of locks can be operated and managed directly via the
keypad or via a compatible smartphone by downloading the K3
Connect App. This Getting Started
functions to enable you to quickly program your lock.
For detailed instructions, refer to the
Instructions at www.codelockssupport.com.
The Basics
Master Code
#
The factory set Master Code is 12345678. This should be changed
immediately after installation (Program 01). The Master Code (and
Sub-Master Code if set) always start with the
lock in Programming Mode.
Access Methods
The lock supports a maximum of 350 Clients (users): User Codes
(100), User Cards (150) and User Compatible Phones (100).
Keypad
The lock has a 12 button, back-lit keypad which includes and
ons. The # button is only used for programming. The * button is used
in some Programs and with NetCodes.
Code Free
Code Free can be configured via Program 04 (refer to the
ng & Operating Instructions ) or via
cylinder tailpiece (refer to Installation Instructions).
Remote Release
The lock has two sets of terminals within the front housing for remote
release, labelled REM1 and REM2 REM1
push-button release where the lock will open for the normal set time.
REM2 is intended for use where the lock needs to be released for a
longer period. When a switch or relay connected to
the lock will open for a period of 30 minutes after which the lock will
revert to normal operation.
Refer to Installation Instructions for further information.
guide contains the common
Programming & Operating
#
button. This puts the
* # butt
Programmi
Key-in-Lever by changing the
. is intended for
REM2 is closed,
Page 1
Find more online at www.codelockssupport.com
The App
Manage with the K3 Connect App
The lock can be managed with the K3 Connect App by any Bluetooth
compatible smartphone.
The App is available on:
Apple App Store for Apple devices or Google Play™ for Android™
devices by searching for K3 Connect
1. Install the K3 Connect App on your device.
2. Once installed, open K3 Connect and select Create
Account.
3. The account creation process includes email confirmation.
Once the account has been created, sign-in to the App.
4. To add a new lock, touch the
5. Enter the lock DIN and enter a name for your lock (we
recommend that you choose a meaningful name).
For this lock range the DIN is: CL4510.
Note: The lock DIN is case-sensitive. The same DIN
(CL4510) to be used for all CL4500 variants i.e. CL4510 and
CL4520.
6. In the App, touch and then immediately, on the lock,
enter the following Program:
# Master Code 00 1 • • ••
Example: # 12345678 00 1 •
Note: If you have changed your Master Code, substitute the
code used in the example with your own code.
7. The lock will now pair with your phone.
For detailed instructions, refer to the
Instructions at www.codelockssupport.com.
Factory Reset
The lock can be reset to its original factory settings. You may need to
do this if the Master Code is no longer known or you no longer have
management access via a smartphone. To reset the lock, you must
have access to the battery compartment in the rear of the lock.
1. Remove a battery.
2. Press and hold the 0 button.
3. Replace the battery whilst continuing to hold the
4. After the double beep, release the
5. Press the 0 button three times.
6. If successful the Blue LED's will burn for 7 seconds.
REGULATORY COMPLIANCE
The device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
.
+ icon on the Locks screen.
• ••
Programming & Operating
0 button.
0 button.
(2) This
