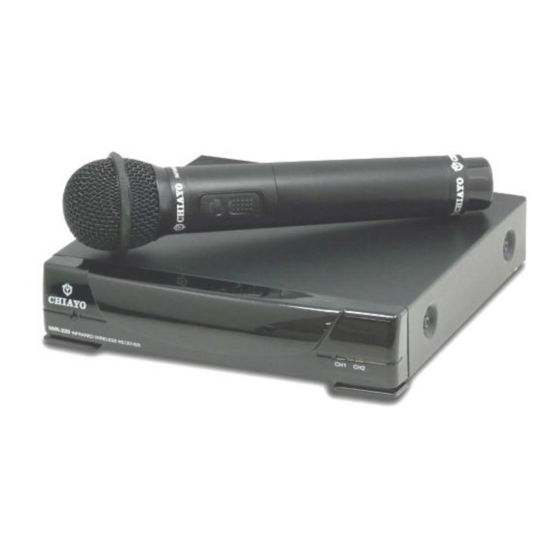

- Page 1 IWR-200 IWR-220 Infrared Wireless Microphone System Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...
- Page 2 Thank you for purchasing our infrared wireless microphone system. Please be sure to read the user's manual thoroughly and keep it for future reference. Cautions Do not cover the infrared emitter area of the wireless transmitter or the surface of the infrared sensor.
- Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 Operating the system 1. First, find the optimal location with the widest view of the room to install the IR receiver. 2. Connect the receiver to amplifier and speaker. 3. Connect power adaptor into nearby power outlet, and then connect the DC plug of adaptor to the receiver.
- Page 4 Connections External sensor IS-20A IS-30A IWR-220/200 receiver AC adaptor KARAOKAE amplifier Audio input Installing the external sensor IS-20A (wall/ceiling-mount type) fixing holder with a screw angle-adjustable shaft Find the best position for sensor to be mounted as illustrated for optimal coverage. Mount the external sensor IS-20A on a wall or ceiling.
- Page 5 ISO 9001｜ISO 14001｜OHSAS 18001 Installing the external sensor IS-30A (ceiling-mount type) In an ordinary space such as a classroom In a larger space such as a fitness center 1. Locate the IS-30A sensor in the middle of 1. Locate 2 or 3 IS-30A sensors on the the ceiling, as illustrated below suggested positions on the cater-corner of 2.
- Page 6 Two IS-20A wall sensors IS-20A IRX2 IS-20A Ex: 10x10 sqm classroom IS-20A IS-20A 2.5m IRX2 1.5m please be careful rostrum of the angles IS-20A IS-20A 3~3.5m IRX2 1.5m please be careful rostrum of the angles...
- Page 7 ISO 9001｜ISO 14001｜OHSAS 18001 Handheld/Pendant IR Transmitter IWH-401 Parts and functions 1. Cartridge screen. 2. Infrared emitter. IR ray radiates from here. Do not block or hold this part of the body. 3. Anti-rolling color ring. 4. Status LED: Bicolor LED will glow when switch is put to ON. Green: Battery is full and transmitter is in normal mode.
- Page 8 Handheld/Pendant IR Transmitter ITX2 Parts and functions 1. Cartridge screen. 2. Release buttons of pendant holder. 3. Channel selector. Channel A: 2.08MHz, Channel B: 2.54MHz 4. Bicolor status LED. Green: Battery full. Red: Battery weak and needs recharging. 5. Power on-off/audio mute switch. 6.
- Page 9 ISO 9001｜ISO 14001｜OHSAS 18001 Handheld IR Transmitter IWH-301 Parts and functions 1. Cartridge screen. 2. Status LED: Bicolor LED will glow when switch is put to ON: Green: Battery is full and transmitter is in normal mode. Red: Battery is weak and will shut off soon. Please charge the battery. 3.
- Page 10 Pendant IR Transmitter IWM-402 Parts and functions 1. Mic in (Φ2.5mm). Headset or lavalier microphone. 2. Power switch. 3. Charging port. 4. IR emitter area. IR ray radiates from here. Do not block or hold this part of the body. 5.
- Page 11 ISO 9001｜ISO 14001｜OHSAS 18001 -10-...
- Page 12 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
