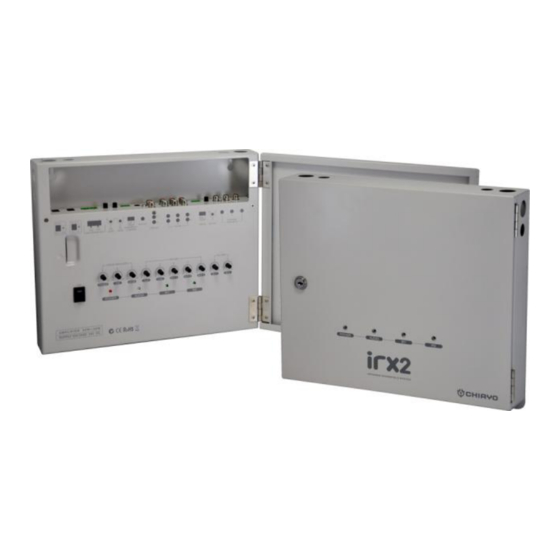

- Page 1 IRX2 Infrared Wall Mount Amplifier System Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...
- Page 2 Thank you for purchasing our infrared wireless microphone system. Please be sure to read the user's manual thoroughly and keep it for future reference. Cautions Do not cover the infrared emitter area of the wireless transmitter or the surface of the infrared sensor.
- Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 6. Audio output connector for assistive listening device. The volume level can be adjusted individually via the volume knob below. 7. Audio input for EMERGENCY OVERRIDE (EO). There are two input modes for EO, 100V (high voltage) and LINE (low voltage). The sensitivity can be set by adjusting the EO SENS knob ...
- Page 4 Connections External sensor IS-30A IS-20A IRX2 amplifier AC adaptor speaker speaker Installing the external sensor IS-20A (wall/ceiling-mount type) fixing holder with a screw angle-adjustable shaft Find the best position for sensor to be mounted as illustrated for optimal coverage. Mount the external sensor IS-20A on a wall or ceiling.
- Page 5 2. Connect all sensor cables to the receiver. operation can be started. 3. Turn on the IR system and amplifier then operation can be started. Other sensor installing recommendations IS-20A IS-30A IRX2 One IS-20A wall sensor＋one IS-30A ceiling sensor Ex: 10x10 sqm classroom IS-20A IS-30A IS-30A 3~3.5m IRX2 1.5m...
- Page 6 Two IS-20A wall sensors IS-20A IRX2 IS-20A Ex: 10x10 sqm classroom IS-20A IS-20A 2.5m IRX2 1.5m please be careful rostrum of the angles IS-20A IS-20A 3~3.5m IRX2 1.5m please be careful rostrum of the angles...
- Page 7 ISO 9001｜ISO 14001｜OHSAS 18001 Speaker connections The minimum load is 4Ω for the amplifier. Example configurations below. 2 speakers↓ 6 speakers↓ 8Ω 8Ω 5.3Ω 8Ω 5.3Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 4 speakers↓ 8 speakers↓ 8Ω 8Ω 4Ω 8Ω...
- Page 8 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
