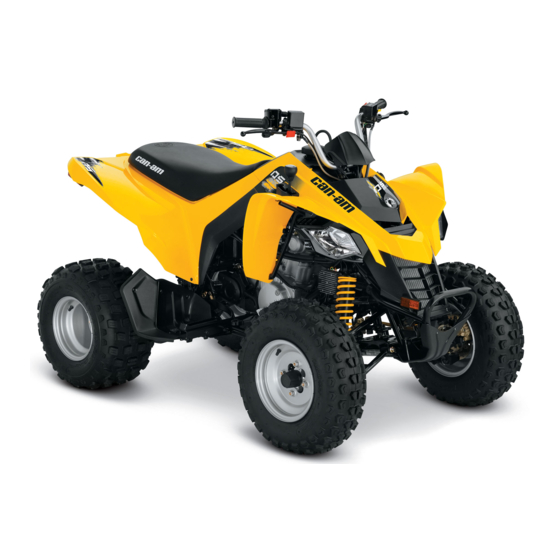

Can-Am DS 250 Operator's Manual
  1. Manuals
  2. Brands
  3. Can-Am Manuals
  4. Offroad Vehicle
  5. DS250
  6. Operator's manual

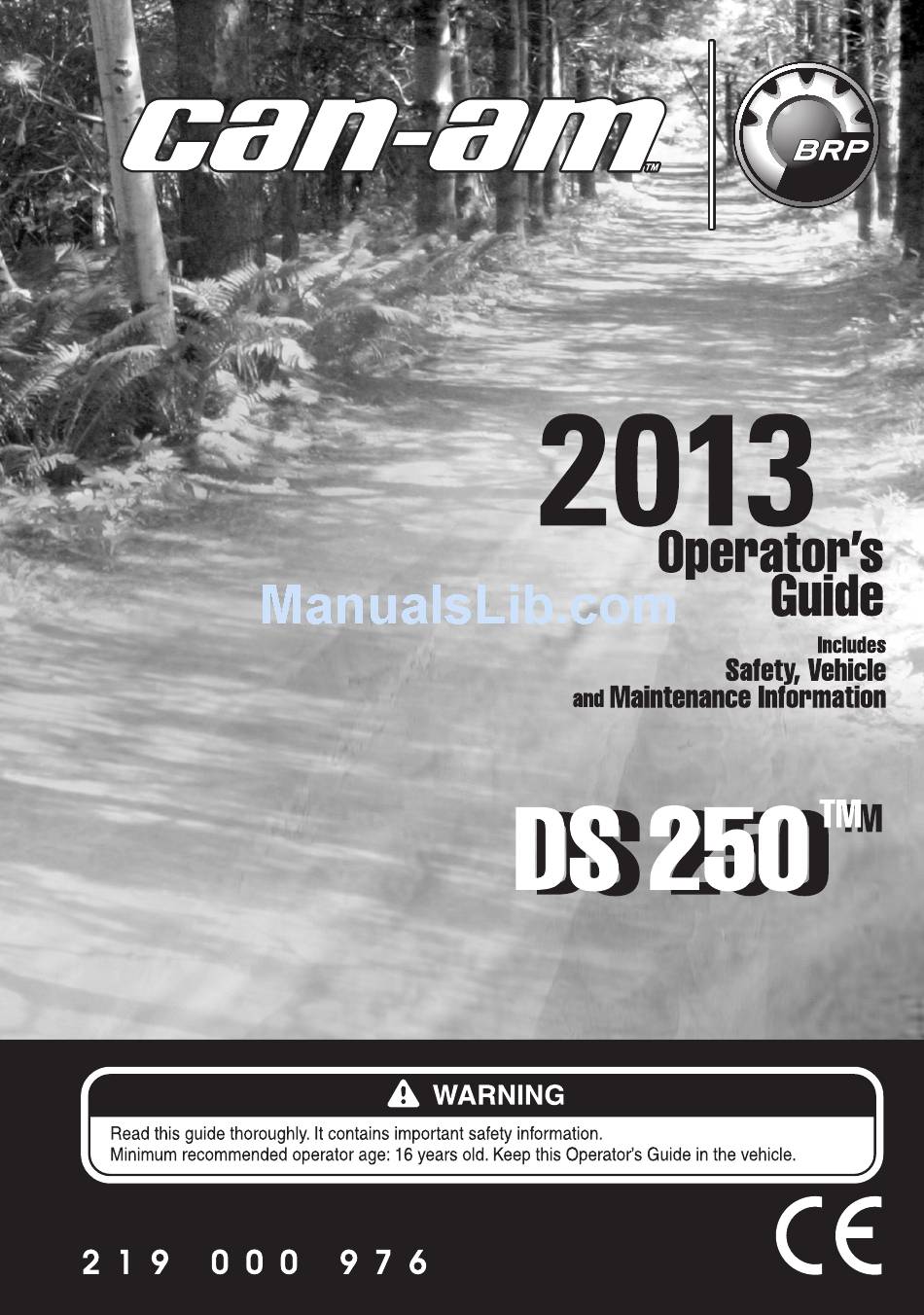

Can-Am DS 250 Operator's Manual

Hide thumbs Also See for DS 250:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS 250 and is the answer not in the manual?

Questions and answers

Related Manuals for Can-Am DS 250

Summary of Contents for Can-Am DS 250

  • Page 2 The following trademarks are the property of Bombardier Recreational Products Inc.: Can-Am™ DS 250™ XPS™ vmo2013-003 en ®™ and the BRP logo are trademarks of Bombardier Recreational Products Inc. or its affiliates. ©2012 Bombardier Recreational Products Inc. and BRP US Inc. All rights reserved.

  • Page 3: Foreword

    Congratulations on your purchase of a FOR MORE INFORMATION ABOUT ATV SAFETY, contact an authorized new Can-Am™ ATV. It is backed by the BRP warranty and a network of autho- Can-Am dealer to find out about avail- rized Can-Am dealers ready to provide able training courses nearest you.
  • Page 4 FOREWORD Keep this Operator's Guide in the vehi- cle so that you can refer to it for things such as maintenance, troubleshooting and instructing others. Note that this guide is available in sev- eral languages. In the event of any dis- crepancy, the English version shall pre- vail.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOREWORD ................1 Know Before you Go .
  • Page 6 TABLE OF CONTENTS CONTROLS/INSTRUMENTS/EQUIPMENT (cont’d) 5) Transmission Lever............63 6) Multifunction Switch .
  • Page 7 TROUBLESHOOTING GUIDELINES ......... . . 122 WARRANTY BRP LIMITED WARRANTY USA AND CANADA: 2013 CAN-AM ATV . . 128 BRP INTERNATIONAL LIMITED WARRANTY: 2013 CAN-AM ATV .
  • Page 8 TABLE OF CONTENTS CHANGE OF ADDRESS/OWNERSHIP......... 147 _______________...

  • Page 9: Safety Information

    SAFETY INFORMATION ________ ________ SAFETY INFORMATION...

  • Page 10: General Precautions

    – Never run the vehicle outdoors the vehicle illegal. where engine exhaust can be drawn See your authorized Can-Am dealer for into a building through openings available accessories for your vehicle. such as windows and doors.

  • Page 11: Special Safety Messages

    SPECIAL SAFETY MESSAGES THIS VEHICLE IS NOT A TOY AND CAN BE HAZARDOUS TO OPERATE. – This vehicle handles differently from other vehicles including motorcycles and cars. A collision or rollover can occur quickly if you fail to take proper precau- tions, even during routine maneuvers such as turning and driving on hills or over obstacles.
  • Page 12 SPECIAL SAFETY MESSAGES – Always follow proper procedures for climbing hills as described further in this Operator's Guide. Check the terrain carefully before you start up any hill. Never climb hills with excessively slippery or loose surfaces. Shift your weight forward.

  • Page 13: European Community

    SPECIAL SAFETY MESSAGES – Never modify this vehicle through improper installation or use of accessories. Use only BRP's approved accessories. NEVER install passenger seat. – Any load carried on the vehicle will affect the stability and control of the vehi- cle.

  • Page 14: Operation Warnings

    Beginners and inexperienced operators should complete a training course. They should then regularly practice the skills learned during the course as well as the operating techniques described in this Operator's Guide. For more information about the training course, contact an authorized Can-Am dealer. _______ ________ SAFETY INFORMATION...
  • Page 15 OPERATION WARNINGS WARNING POTENTIAL HAZARD Failure to follow the age recommendations for this vehicle. WHAT CAN HAPPEN A lack of respect for this age recommendation can lead to severe injury or death of the child. Even though a child may be within the age group for which this vehicle is recommended, he may not have the skills, abilities, or judgment needed to operate this vehicle safely and may be involved in a serious accident.
  • Page 16 OPERATION WARNINGS WARNING POTENTIAL HAZARD Carrying a passenger on this vehicle. WHAT CAN HAPPEN Greatly reduces your ability to balance and control this vehicle. Could cause an accident, resulting in harm to you and/or your passenger. HOW TO AVOID THE HAZARD Never carry passenger.
  • Page 17 OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this vehicle on public streets or roads. WHAT CAN HAPPEN You can collide with another vehicle. Paved surfaces may seriously affect handling and control of the vehicle, and may cause the vehicle to go out of control.
  • Page 18 OPERATION WARNINGS WARNING POTENTIAL HAZARD Riding this vehicle without wearing an approved helmet, eye protection and protective clothing. WHAT CAN HAPPEN The following items concern all ATV's operator: – Riding without an approved helmet increases the chances of a severe head injury or death in the event of an accident.
  • Page 19 OPERATION WARNINGS WARNING POTENTIAL HAZARD Riding this vehicle after consuming alcohol or drugs. WHAT CAN HAPPEN Could seriously affect your judgment. Could cause you to react more slowly. Could affect your balance and perception. Could result in an accident or death. HOW TO AVOID THE HAZARD Never consume alcohol or drugs before or while riding this vehicle.
  • Page 20 OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this vehicle at excessive speeds. WHAT CAN HAPPEN Increases your chances of losing control of the vehicle, which can result in an accident. HOW TO AVOID THE HAZARD Always travel at a speed which is proper for the terrain, visibility and operat- ing conditions, and your experience.
  • Page 21 OPERATION WARNINGS WARNING POTENTIAL HAZARD Attempting wheelies, jumps and other stunts. WHAT CAN HAPPEN Increases the chance of an accident, including an overturn. HOW TO AVOID THE HAZARD Never attempt stunts, such as wheelies or jumps. Do not try to show off. WARNING POTENTIAL HAZARD Failure to inspect the vehicle before operating.
  • Page 22 OPERATION WARNINGS WARNING POTENTIAL HAZARD Riding on frozen waterways. WHAT CAN HAPPEN Severe injury or death can result if the vehicle and/or operator break through the ice. HOW TO AVOID THE HAZARD Never ride this vehicle on a frozen surface before you are sure the ice is thick enough and sound enough to support the vehicle and its load, as well as the force that is created by a moving vehicle.
  • Page 23 OPERATION WARNINGS WARNING POTENTIAL HAZARD Failure to use extra care when operating this vehicle on unfamiliar terrain. WHAT CAN HAPPEN You can come upon hidden rocks, bumps, or holes, without enough time to react. Could result in the vehicle overturning or loss of control. HOW TO AVOID THE HAZARD Go slowly and be extra careful when operating on unfamiliar terrain.
  • Page 24 OPERATION WARNINGS WARNING POTENTIAL HAZARD Failure to use extra care when operating on excessively rough, slippery or loose terrain. WHAT CAN HAPPEN Could cause loss of traction or vehicle control, which could result in an acci- dent, including an overturn. HOW TO AVOID THE HAZARD Do not operate on excessively rough, slippery or loose terrain until you have learned and practiced the skills necessary to control this vehicle on...
  • Page 25 OPERATION WARNINGS WARNING POTENTIAL HAZARD Turning improperly. WHAT CAN HAPPEN Vehicle could go out of control, causing a collision or overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for turning as described further in this Op- erator's Guide. Practice turning at low speeds before attempting to turn at faster speeds.
  • Page 26 OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating on excessively steep hills. WHAT CAN HAPPEN The vehicle can overturn more easily on extremely steep hills than on level surfaces or small hills. HOW TO AVOID THE HAZARD Never operate this vehicle on hills too steep for the vehicle or for your abili- ties.
  • Page 27 OPERATION WARNINGS WARNING POTENTIAL HAZARD Climbing hills improperly. WHAT CAN HAPPEN Could cause loss of control or cause vehicle to overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for climbing hills as described further in this Operator's Guide. Always check the terrain carefully before you start up any hill.
  • Page 28 OPERATION WARNINGS WARNING POTENTIAL HAZARD Going down a hill improperly. WHAT CAN HAPPEN Could cause loss of control or cause vehicle to overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for going down hills as described further in this Operator's Guide. NOTE: A special technique is required when braking as you go down a hill.
  • Page 29 OPERATION WARNINGS WARNING POTENTIAL HAZARD Improperly crossing hills or turning on hills. WHAT CAN HAPPEN Could cause loss of control or cause vehicle to overturn. HOW TO AVOID THE HAZARD Never attempt to turn the vehicle around on any hill until you have mastered the turning technique as described further in this Operator's Guide on level ground.
  • Page 30 OPERATION WARNINGS WARNING POTENTIAL HAZARD Stalling, rolling backwards or improperly dismounting while climbing a hill. WHAT CAN HAPPEN Could result in vehicle overturning. HOW TO AVOID THE HAZARD Use proper gear and maintain steady speed when climbing a hill. If you lose all forward speed: Keep your weight uphill.
  • Page 31 OPERATION WARNINGS WARNING POTENTIAL HAZARD Improperly operating over obstacles. WHAT CAN HAPPEN Could cause loss of control or a collision. Could cause the vehicle to overturn. HOW TO AVOID THE HAZARD Before operating in a new area, check for obstacles. Never attempt to ride over large obstacles, such as large rocks or fallen trees.
  • Page 32 OPERATION WARNINGS WARNING POTENTIAL HAZARD Skidding or sliding improperly. WHAT CAN HAPPEN You may lose control of this vehicle. You may also regain traction unexpectedly, which may cause the vehicle to overturn. HOW TO AVOID THE HAZARD Learn to safely control skidding or sliding by practicing at low speeds and on level smooth terrain.
  • Page 33 OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this vehicle through deep or fast flowing water. WHAT CAN HAPPEN Tires may float, causing loss of traction and loss of control, which could lead to an accident. HOW TO AVOID THE HAZARD Never operate this vehicle in fast flowing water or in water deeper than that specified further in this Operator's Guide.
  • Page 34 OPERATION WARNINGS WARNING POTENTIAL HAZARD Improperly operating in reverse. WHAT CAN HAPPEN You could hit an obstacle or person behind the vehicle, resulting in serious injury. HOW TO AVOID THE HAZARD When you select reverse gear, make sure there are no obstacles or people behind the vehicle.
  • Page 35 OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this vehicle with improper tires, or with improper or uneven tire pressure. WHAT CAN HAPPEN Use of improper tires on this vehicle, or operation of this vehicle with improper or uneven tire pressure, may cause loss of control, tire blow outs, tire to move around on its rim and increases the risk of an accident.
  • Page 36 All parts and accessories added to this vehicle should be approved by BRP and should be installed and used according to instructions. If you have questions, consult an authorized Can-Am dealer. NEVER install passenger seat or use the racks to carry a passenger.
  • Page 37 OPERATION WARNINGS WARNING POTENTIAL HAZARD Overloading this vehicle, carrying or towing cargo improperly. WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD Never exceed the stated load capacity for this vehicle including operator, as well as other loads and added accessories.
  • Page 38 OPERATION WARNINGS WARNING POTENTIAL HAZARD Transporting flammable or dangerous material can lead to explosions. WHAT CAN HAPPEN This can cause serious injury or death. HOW TO AVOID THE HAZARD Never transport flammable or dangerous material. _______ ________ SAFETY INFORMATION...

  • Page 39: Riding The Vehicle

    RIDING THE VEHICLE While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious injury or death. To fully appreciate the pleasures and excitement of riding this vehicle, there are some basic rules and tips that you MUST follow. Some may be new to you while others may be common sense or obvious.

  • Page 40: Pre-Ride Inspection

    Correct any problems that you discover to reduce the risk of a breakdown or crash. See an authorized Can-Am dealer as necessary. Before using this vehicle, the operator should always perform the following pre-ride inspection check list.
  • Page 41 RIDING THE VEHICLE ITEMS TO BE INSPECTION TO PERFORM INSPECTED If you transport a cargo, respect the load capacity. Ensure Cargo cargo is properly secured to the racks Service and storage Check if service and storage compartments are properly compartments latched Chassis and Check underneath vehicle for any debris on chassis or...

  • Page 42: Clothing

    RIDING THE VEHICLE ITEMS TO BE INSPECTION TO PERFORM INSPECTED Ensure operation of turn signal indicator lamps in gauge Ensure gauge lighting is functioning properly Gauge Ensure speedometer and odometer function properly when driving forward Emergency engine Check that the emergency engine stop switch is working stop switch properly Check if ignition switch is working properly by restarting...

  • Page 43: Carrying A Passenger

    RIDING THE VEHICLE Carrying a Passenger This vehicle is designed specifically to carry an operator only. Even with a long seat, this vehicle is not designed nor intended to carry passenger(s). Carrying passenger(s) may affect the stability and your control of the vehicle. Carrying Loads Any load carried on the vehicle will affect the handling, stability and braking dis- tance of the vehicle.

  • Page 44: Working With Your Vehicle

    Working with your Vehicle Your vehicle can help you perform some LIGHT tasks. A variety of accessories are available from your authorized Can-Am dealer. However, always respect the load and capacities of the vehicle. Overloading of the vehicle can overstress the com- ponents and cause failure.

  • Page 45: Environment

    RIDING THE VEHICLE Adjustable wrench Knife A rope Mobile phone Provided tool kit Colored lens goggles First aid kit Spare light bulbs Flashlight Snack Friction tape Trail map Environment One of the benefits of this vehicle is that it can take you off the beaten path away from most communities.

  • Page 46: General Operating And Safety Precautions

    RIDING THE VEHICLE An operator who takes a vehicle off-road should always exercise the utmost care in selecting the safest path and keeping close watch on the terrain ahead of him. On no account should the vehicle be operated by anyone who is not completely famil- iar with the driving instructions applicable to the vehicle, nor should it be operated on steep or treacherous terrain.
  • Page 47 RIDING THE VEHICLE Downhill Driving This vehicle can climb slopes that are steeper than it can safely descend. There- fore, it is essential to ensure that a safe route exists to descend a slope before you climb it. Decelerating while negotiating a slippery downhill slope could "toboggan" the vehi- cle.

  • Page 48: Riding Techniques

    RIDING THE VEHICLE frequently to prevent ice or snow accumulation and to dry brake pads and discs. While doing so in low risk driving situations you will test for grip level and keep yourself alerted to how the vehicle reacts to your control inputs. Always keep the brake pedal, footrests, brake and throttle levers free of snow and ice.
  • Page 49 RIDING THE VEHICLE vmo2012-012-520 Even though there is an adequate suspensions system on this vehicle there are "washboard" or rough terrain conditions that will make you feel uncomfortable and can even cause back injuries. "Posting" or riding in a crouched position will often be required.
  • Page 50 RIDING THE VEHICLE vmo2012-012-524 Water will affect the braking ability of your vehicle. Make sure you dry the brakes by applying them several times after the vehicle leaves the water. Mud or marsh lands may be encountered near water. Be prepared for sudden "holes"...
  • Page 51 RIDING THE VEHICLE When riding in sand dunes it is advisable to equip the vehicle with an antenna type safety flag. This will help make your location more visible to others over the next sand dune. Proceed carefully should you see another safety flag ahead. Since the antenna type safety flag can snag and rebound on your body if caught, do not use it in areas where there are low hanging branches or obstacles.
  • Page 52 RIDING THE VEHICLE When stopped or parked always apply the parking device. This is especially impor- tant when parking on a slope. On very steep inclines or if the ATV is carring a cargo, the wheels should be blocked using rocks or bricks. Uphill Keep your body weight forward towards the top of the hill.
  • Page 53 RIDING THE VEHICLE vmo2012-012-523 Side Hilling This is one of the most risky types of riding since it may drastically change the bal- ance of the vehicle. It should be avoided wherever possible. However, if it is nec- essary to do so, it is important that you ALWAYS keep your body weight on the up- side of the slope...
  • Page 54 RIDING THE VEHICLE vmo2012-012-527 While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious injury or death. _______ ________ SAFETY INFORMATION...

  • Page 55: Important On Product Labels

    The safety labels on your vehicle should be considered permanent parts of the ve- hicle. If missing or damaged, they can be replaced free of charge. See an autho- rized Can-Am dealer. NOTE: The following illustrations used in this Operator's Guide are general rep- resentations used only to illustrate the locations of the various safety labels that follow.
  • Page 56 IMPORTANT ON PRODUCT LABELS vmo2008-009-004_a LEFT FRONT FENDER LABEL vmo2008-009-001_b RIGHT REAR FENDER LABELS vmo2008-009-002_c vmo2010-001-002_b LEFT REAR FENDER LABELS vmo2008-009-003_b vmo2010-001-501_b RIGHT FRONT FENDER LABELS FRONT FENDER ACCESS PANEL _______ ________ SAFETY INFORMATION...
  • Page 57 IMPORTANT ON PRODUCT LABELS LABEL 3 vmo2009-003-007_aen LABEL 1 A704901879 LABEL 4 LABEL 2 LABEL 5 ________ ________ SAFETY INFORMATION...
  • Page 58 IMPORTANT ON PRODUCT LABELS vmo2010-004-002_en LABEL 6 vmo2006-006-009_aen LABEL 8 vmo2010-010-100_a LABEL 7 _______ ________ SAFETY INFORMATION...

  • Page 59: Compliance Labels

    IMPORTANT ON PRODUCT LABELS Technical Information Label vmo2006-014-002_aen DRIVE CHAIN ADJUSTMENT LABEL vmo2006-014-003_a vmo2008-009-005_b LABEL 9 5. Location of drive chain adjustment label Compliance Labels These labels indicate vehicle's compli- ance. 704901195 LOCATION: RIGHT FRONT LOWER TUBE OF THE FRAME ________ ________ SAFETY INFORMATION...
  • Page 60 IMPORTANT ON PRODUCT LABELS This page is intentionally blank _______ ________ SAFETY INFORMATION...

  • Page 61: Vehicle Information

    VEHICLE INFORMATION _______________...

  • Page 62: Controls/Instruments/Equipment

    CONTROLS/INSTRUMENTS/EQUIPMENT vmo2006-014-006_c TYPICAL ______________...
  • Page 63 CONTROLS/INSTRUMENTS/EQUIPMENT vmo2006-014-007_c TYPICAL _______________...

  • Page 64: Throttle Lever

    CONTROLS/INSTRUMENTS/EQUIPMENT NOTE: This section provides basic WARNING information on the functions of the var- Check throttle lever operation be- ious controls, instruments and equip- fore you start the engine. If the ment available on your vehicle. Illus- throttle lever does not function trations used in this Operator's Guide smoothly, check for the cause.

  • Page 65: Brake Lock

    CONTROLS/INSTRUMENTS/EQUIPMENT vmo2006-014-053_a vmo2006-014-009_b 1. Brake lever ON POSITION 2. To apply brake 1. Brake lever lock 2. Pull to apply brake lock 4) Brake Lock To release the brake lock: Push brake The brake lock is located on the RH lock back in place.

  • Page 66: Multifunction Switch

    CONTROLS/INSTRUMENTS/EQUIPMENT N: Neutral This position disengages the transmis- sion to allow manual vehicle move- ment or towing. F: Forward It is the normal driving range. It al- lows the vehicle to reach its maximum speed. 6) Multifunction Switch The multifunction switch is located on vmo2006-014-024_b TRANSMISSION LEVER PATTERN the LH side of the handlebar.
  • Page 67 CONTROLS/INSTRUMENTS/EQUIPMENT Engine Start Button To start the engine, set the emergency engine stop switch to RUN position. Press and hold the engine start button, release immediately after engine is started. vmo2006-014-055_a HEADLIGHTS SWITCH FUNCTIONS 1. Headlights switch 2. Low beam and taillight 3.
  • Page 68 CONTROLS/INSTRUMENTS/EQUIPMENT vmo2006-014-055_b vmo2006-014-025 TYPICAL TYPICAL — CHOKE LEVER IN THE OFF 1. Override button POSITION Turn Signal Switch The full choke position is used when the engine is cold. To activate the turn signal lights, move the turn signal switch towards the side you wish to turn.

  • Page 69: Indicator Lamps

    CONTROLS/INSTRUMENTS/EQUIPMENT The other positions between OFF and Engine Temperature (RED) FULL will be used depending on the This light comes ON when engine temperature. the ignition switch is turned ON, and remains ON until the 7) Indicator Lamps engine is running. Indicator lamps located in the gauge When this indicator light is support and in the gauge provide ad-...

  • Page 70: Ignition Switch

    CONTROLS/INSTRUMENTS/EQUIPMENT Turn Signal Indicator Lamps NOTE: While the engine can be (GREEN) stopped by turning the ignition key to OFF position, we recommend the These lights (2) are located engine be stopped by using the emer- within gauge. When gency engine stop switch. an indicator light blinks, it indicates which turn signal, 9) Fuel Valve...

  • Page 71: Brake Pedal

    CONTROLS/INSTRUMENTS/EQUIPMENT RES. (RESERVE) When the normal supply of fuel in the tank is used up (ON position), an emer- gency supply of fuel is available by turn- ing the valve to RES. The reserve con- tains approximately 10% of the fuel tank capacity.

  • Page 72: Horn Button

    CONTROLS/INSTRUMENTS/EQUIPMENT 5. Try to turn the handlebar on both sides to make sure it is properly locked. To unlock steering, simply turn the key counterclockwise. 13) Horn Button The horn button is located on the LH handlebar. To activate horn, press the button. Re- lease immediately after horn is set off.

  • Page 73: 12-Volt Power Outlet

    CONTROLS/INSTRUMENTS/EQUIPMENT vmo2006-014-016_a vmo2006-014-018_a 1. Tab Seat Removal 2. Hook Unlock seat using latch lever. WARNING Gently lift rear of seat while pulling rear- ward to release. Make sure seat is securely latched before riding. 16) 12-Volt Power Outlet vmo2006-014-017_a 1. Seat latch Seat Installation vmo2011-001-001_a TYPICAL...

  • Page 74: Gauge

    An auxiliary supply is available to con- nect additional accessories. Two wires are hidden in the wiring harness at the rear of vehicle. See an authorized Can-Am dealer for more details. 17) Gauge The gauge is comprised of: – a speedometer –...

  • Page 75: Fuel

    FUEL Recommended Fuel Fueling Procedure Use regular unleaded gasoline avail- WARNING able from most service stations, or oxygenated fuel containing a maxi- – Always stop engine before refu- mum of 10% ethanol or methanol. The eling. Open cap slowly. gasoline used must have the following –...
  • Page 76 FUEL 5. Pour fuel slowly to allow the air in the tank time to escape from the tank and prevent fuel flow back. Be careful not to spill fuel. 6. Stop fuelling when the fuel reaches the bottom of filler neck. Do not overfill.

  • Page 77: Break-In Period

    After the break-in period, the vehicle should be inspected by an authorized MAINTE- Can-Am dealer. Refer to NANCE INFORMATION Brakes WARNING New brakes will not perform to their maximum efficiency until their break-in is complete.

  • Page 78: Operating Instructions

    OPERATING INSTRUCTIONS Starting the Engine NOTE: Throttle assist may be used to help start the engine faster. Press the Conditions Required for Engine throttle lever slightly. If too much throt- Starting tle is used the choke system will not be activated.

  • Page 79: Stopping The Engine

    OPERATING INSTRUCTIONS Apply brakes and set the transmission To engage the override function, press selector lever to ”F” (forward), or ”R” and hold the override button, then (reverse). gradually press the throttle lever to increase engine power. Release brakes. WARNING WARNING Never activate the override but- Make sure the brake lock is fully...

  • Page 80: Tune Your Ride

    TUNE YOUR RIDE Suspension Adjustment WARNING Adjust both front springs to the same length. Uneven adjustment can cause poor handling and loss of stability and/or control, and in- crease the risk of an accident. Spring preload may vary from rider to vmo2006-014-072_a rider according to weight.

  • Page 81: Vehicle Transportation

    VEHICLE TRANSPORTATION When transporting this vehicle, secure it to a trailer or in pickup box using suit- able tie-downs. The use of ordinary ropes is not recommended. WARNING Do not tow this vehicle behind a car or other vehicle. Use a trailer. Never tip this vehicle on end for vmo2006-014-063_a transporting.
  • Page 82 VEHICLE TRANSPORTATION This page is intentionally blank ______________...

  • Page 83: Maintenance

    MAINTENANCE _______________...

  • Page 84: Break-In Inspection

    BREAK-IN INSPECTION BRP suggests that after the first 10 hours or 300 km of operation, whichever comes first, your vehicle be inspected by an authorized Can-Am dealer. The break-in inspection is very important and must not be neglected. NOTE: The break-in inspection is at the expense of the vehicle owner.

  • Page 85: Break-In Inspection Chart

    BREAK-IN INSPECTION Break-In Inspection Chart REPLACE ADJUST TIGHTEN BREAK-IN INSPECTION CHART LUBRICATE CLEAN INSPECT ENGINE Engine oil Engine oil strainer Valve Clearance Exhaust system Engine seals Engine mounting fasteners COOLING SYSTEM Radiator cap/cooling system pressure test FUEL SYSTEM Fuel filter Fuel lines, connections, and fuel tank pressure test Throttle lever and cable Carburetor...
  • Page 86 BREAK-IN INSPECTION REPLACE ADJUST TIGHTEN BREAK-IN INSPECTION CHART LUBRICATE CLEAN INSPECT DRIVE SYSTEM Drive chain and sprockets WHEEL/TIRES Wheel nuts/studs STEERING SYSTEM Handlebar fasteners Steering system (column, bearing, etc.) Tie rod ends Front wheel alignment BRAKES Brake fluid Brake lock cable ______________...

  • Page 87: Maintenance Schedule

    MAINTENANCE SCHEDULE Maintenance is very important for keeping your vehicle in safe operating condition. Proper maintenance is the owner's responsibility. The vehicle should be serviced as per maintenance schedule. The maintenance schedule does not exempt the pre-ride inspection. WARNING Failure to properly maintain the vehicle according to the maintenance schedule and procedures can make it unsafe to operate.
  • Page 88 MAINTENANCE SCHEDULE MAINTENANCE SCHEDULE 25 h or 500 km A: Adjust C: Clean 50 h or 1 000 km I: Inspect 100 h or 1 year or 2 000 km L: Lubricate R: Replace 200 h or 2 years or 4 000 km To be performed by PART/TASK LEGEND...
  • Page 89 MAINTENANCE SCHEDULE MAINTENANCE SCHEDULE 25 h or 500 km A: Adjust C: Clean 50 h or 1 000 km I: Inspect 100 h or 1 year or 2 000 km L: Lubricate R: Replace 200 h or 2 years or 4 000 km To be performed by PART/TASK LEGEND...

  • Page 90: Maintenance Procedures

    The carburetion is calibrated to formed by your authorized Can-Am operate specifically with these com- dealer. ponents. Otherwise, engine perfor-...
  • Page 91 MAINTENANCE PROCEDURES vbs2009-012-015_a TYPICAL - SPRAY FOAM ELEMENT INSIDE vmo2006-014-046_a AND OUT 1. Clamp 2. Retaining screw 2. Let stand for 3 minutes. Air Filter Cleaning 3. As stated on air filter cleaner (UNI) container, rinse with plain water. 1. Spray the foam filter element inside and out with AIR FILTER CLEANER 4.

  • Page 92: Air Filter Housing

    MAINTENANCE PROCEDURES Air Filter Housing Air Filter Housing Draining NOTICE Never remove or mod- ify any component in the air filter housing. The engine carburation is calibrated to operate specifically with these components. Otherwise, engine performance degradation or damage can occur. 219700340 Periodically inspect air filter housing AIR FILTER OIL (P/N 219 700 340)

  • Page 93: Engine Oil

    MAINTENANCE PROCEDURES Engine Oil Engine Oil Viscosity Chart Recommended Engine Oil SAE 0W30 For the summer season, use XPS SAE 5W30 4-STROKE SYNTH. BLEND OIL (SUM- MER) (P/N 293 600 121). SAE 10W30 For the winter season, use XPS 4-STROKE SYNTHETIC OIL (ALL CLI- SAE 10W40 MATE) (P/N 293 600 112).
  • Page 94 MAINTENANCE PROCEDURES Properly tighten dipstick. Engine Oil Change The oil change should be carried out on a warm engine. CAUTION The engine oil can be very hot. In order to avoid poten- tial burns, do not remove the engine drain plug or the oil strainer cover if vmo2006-014-019_a the engine is hot.

  • Page 95: Oil Strainer

    MAINTENANCE PROCEDURES Refill engine with the specified quan- CAUTION Always wear tity of the recommended engine oil. propriate skin and eye protection. TECHNICAL SPECIFICA- Refer to Chemicals can cause a skin rash and TIONS for capacity. eye injuries. NOTE: Engine oil quantity is also writ- NOTE: Check cover O-ring and replace ten on the dipstick.

  • Page 96: Engine Coolant

    WHEN HOSING, USE LOW PRES- SURE ONLY. NEVER USE A HIGH PRESSURE WASHER. If engine is overheating even with a clean radiator, see an authorized Can-Am dealer. vmo2006-014-022_a COOLANT LEVEL Engine Coolant With vehicle on a level surface, coolant should be between MIN. and MAX.
  • Page 97 NOTE: A cooling system that fre- quently requires coolant is an indica- tion of leaks or engine problems. See an authorized Can-Am dealer. To gain access to the radiator, remove front fender access cover (see proce- dure above).
  • Page 98 MAINTENANCE PROCEDURES Unscrew the cooling system drain plug located on the right side of engine and drain the coolant into a suitable con- tainer. 529032500 vmo2006-014-040_a 1. Cooling system drain plug vmo2006-014-043_a Disconnect the by-pass hose from the HOSE PINCHER LOCATION top of the thermostat housing.

  • Page 99: Air Injection Valve

    When finished, properly reinstall re- moved parts in the reverse order of their removal. Drive Belt See an authorized Can-Am dealer to in- spect and/or replace the drive belt. CVT Cover CVT Cover Draining Whenever you suspect that water has...
  • Page 100 MAINTENANCE PROCEDURES Gearbox Oil Level There is no dipstick provided with this vehicle, the gear box oil level cannot be checked. The only way to ensure the level is cor- rect is to drain gearbox and refill it with the specified quantity of the recom- GEAR- mended gearbox oil.

  • Page 101: Throttle Cable

    MAINTENANCE PROCEDURES Throttle Cable Unscrew the lock nut of the cable ad- juster then screw in the adjuster to Throttle Cable Inspection release the cable tension. Inspect throttle cable for excessive wear, kinking or fraying. Ensure cable moves freely. WARNING The throttle cable must be re- placed if any signs of wear, fraying or other damage are found.

  • Page 102: Spark Plug

    NEUTRAL position, start the engine. NOTE: If correct adjustment unattainable, authorized Check if the throttle cable is adjusted Can-Am dealer. correctly by turning handlebar fully to the right then fully to the left. If the normal throttle free-play engine RPM increases, readjust the 1 mm to 3 mm.

  • Page 103: Battery

    MAINTENANCE PROCEDURES NOTICE Never remove the battery sealing cap. Battery Inspection Inspect battery connections for tight- ness and cleanliness. Inspect battery support. Battery Removal NOTICE Always disconnect the BLACK (-) battery cable first. vmo2006-014-066_a LH SIDE OF ENGINE Disconnect BLACK (-) cable. 1.

  • Page 104: Lights

    MAINTENANCE PROCEDURES Lights NOTICE Do not use a higher rated fuse as this can cause severe electri- cal system component damage. CAUTION Always turn the ig- nition switch to OFF position before Fuses are located underneath the seat replacing a defective bulb. in the service compartment.
  • Page 105 MAINTENANCE PROCEDURES Disconnect electrical connector from Front Position Light Bulb headlight. Replacement Push the retaining clip round ends for- To replace the front position lamp bulb ward, then outwards to unlock head- located in the headlight housing, pro- light bulb. ceed as follows.
  • Page 106 MAINTENANCE PROCEDURES Install the new bulb by first pushing and holding it in as you turn it clock- wise to lock it in the socket. Check light operation after bulb re- placement. Reinstall lens. Direction Signal Light Bulb Replacement Ensure the ignition switch is in the OFF vmo2009-002-002_a position.

  • Page 107: Drive Chain And Sprockets

    MAINTENANCE PROCEDURES Push the new bulb in while turning it clock wise to lock bulb into its socket. Check light operation after bulb re- placement. Drive Chain and Sprockets NOTICE Check drive chain for proper adjustment and lubrication before each use. CAUTION Ensure the engine is 1.

  • Page 108: Tires And Wheels

    MAINTENANCE PROCEDURES Adjust chain deflection by slowly mov- ing the vehicle forward or backward. deflection chain should between 15 mm and 25 mm. vmo2006-014-048_a TYPICAL 1. Chain tensioner lock bolts DRIVE CHAIN DEFLECTION BETWEEN 15 MM AND 25 MM Loosen caliper support bolt. Tighten the chain tensioner lock bolts to 62 N•m ±...

  • Page 109: Wheel Bearing

    Remove one nut at a time, lubri- for free play. See an authorized cate it, then install and retorque it to Can-Am dealer if any free play is felt. 50 N•m ± 5 N•m. Wheel Removal and Installation Slightly loosen wheel nuts, then lift ve- hicle.

  • Page 110: Suspension

    MAINTENANCE PROCEDURES Swing Arm Check swing arm for distortion, cracks or bending. See an authorized Can-Am dealer if any problem is detected. A-Arms Check A-arms for cracks, bending or other damage. See an authorized Can-Am dealer as necessary. Brakes WARNING...
  • Page 111 Rear Brake The rear brake employs two systems. The first system uses a cable; an ad- justment is necessary. Contact an au- thorized Can-Am dealer. The second system is hydraulic and re- quires no adjustment. vmr2006-085-004 TYPICAL — LH REAR BRAKE FLUID...

  • Page 112: Frame

    MAINTENANCE PROCEDURES See your authorized Can-Am dealer if a problem is detected concerning the brake system. WARNING Brake system maintenance and re- pairs should be performed by an authorized Can-Am dealer. Frame Frame Fasteners Check fastener condition and tight- ness on the vehicle. Retighten as re- quired.

  • Page 113: Vehicle Care

    VEHICLE CARE Post-Operation Care When the vehicle is used in a salt wa- ter environment, rinsing the vehicle with fresh water is necessary to pre- serve the vehicle and its components. Lubrication of metal parts is highly rec- ommended. Use XPS LUBE (P/N 293 600 016) or an equivalent.

  • Page 114: Storage And Preseason Preparation

    When a vehicle is not in use for a period of four months, proper storage is a ne- cessity. See an authorized Can-Am dealer for proper procedures. When using your vehicle after stor- age, a preparation is required. See an authorized Can-Am dealer for proper procedures.

  • Page 115: Technical Information

    TECHNICAL INFORMATION ______________...

  • Page 116: Vehicle Identification

    These numbers are also required by the authorized Can-Am dealer to complete warranty claims properly. No warranty will be allowed by BRP. If the engine identification number (EIN) or vehicle identification number (VIN) is removed, mutilated, or altered in any way.

  • Page 117: Engine Identification Number Location

    VEHICLE IDENTIFICATION Engine Identification Number Location vmo2006-014-005_a TYPICAL ______________...

  • Page 118: Specifications

    SPECIFICATIONS VEHICLE MODEL DS 250 ENGINE 4 stroke. Single overhead camshaft Type engine, liquid cooled Number of cylinders Single cylinder Number of valves 4 valves with mechanical lifters (adjustable) Displacement 249.4 cm³ Bore 71 mm Stroke 63 mm Starting system...
  • Page 119 SPECIFICATIONS VEHICLE MODEL DS 250 ELECTRICAL (cont'd) Type Wet type battery Battery Volt 12 volts, 10 A•h (Ampere-hour) Electric start Starting system Headlight bulbs 2 x 31.5 W Taillight bulb 1 x 5/21 W Turn signal light bulbs 4 x 10 W Indicator lamps 1.7 W...
  • Page 120 SPECIFICATIONS VEHICLE MODEL DS 250 BRAKES Front Hydraulic, 2 discs Rear Hydraulic, 1 disc Parking device Separate RH lock lever on handlebar LOADING CAPACITY AND WEIGHT Dry weight 195 kg 150 kg( includes operator, all other loads Total vehicle load allowed...
  • Page 121 SPECIFICATIONS VEHICLE MODEL DS 250 CAPACITIES Fuel tank 12.5 L Engine 1.2 L (oil change) 800 ml (oil change) Gearbox oil 850 ml Coolant (engine and radiator) ______________...
  • Page 122 SPECIFICATIONS This page is intentionally blank ______________...

  • Page 123: Troubleshooting

    TROUBLESHOOTING ______________...

  • Page 124: Troubleshooting Guidelines

    – Check charging system fuse. – Check connections and terminals condition. – Have the battery checked. – Contact an authorized Can-Am dealer. ENGINE TURNS OVER BUT FAILS TO START 1. Mixture not rich enough to start cold engine. – Check fuel tank level and starting procedure for a cold engine, particularly use of the choke.
  • Page 125 – Start engine with spark plug grounded to the engine away from spark plug hole. If no spark appears, replace spark plug. – If trouble persists, contact an authorized Can-Am dealer. 5. Engine compression. – Crank engine, you should feel a pulsation due to the compression cycle of the engine.
  • Page 126 – Clean radiator fins, check RADIATOR in MAINTENANCE INFORMATION. ENGINE BACKFIRE 1. Exhaust system leakage. – Contact an authorized Can-Am dealer. 2. Engine is running too hot. – See ENGINE LACKS ACCELERATION OR POWER. 3. Ignition timing is incorrect or there is an ignition system failure.
  • Page 127 – Check the position of the air intake tube. 4. CVT dirty or worn, including belt. – Contact an authorized Can-Am dealer. TRANSMISSION LEVER IS HARD TO MOVE 1. Transmission gears are in a position that prevents the transmission lever engagement in a different selection.
  • Page 128 TROUBLESHOOTING GUIDELINES ______________...

  • Page 129: Warranty

    WARRANTY ______________...

  • Page 130: Brp Limited Warranty Usa And Canada: 2013 Can-Am

    Except if otherwise specified, all genuine Can-Am ATV parts and accessories installed by an authorized BRP dealer at the time of delivery of the 2013 Can-Am ATV, carry the same warranty as that of the Can-Am ATV. Without limiting the...
  • Page 131 This warranty coverage is available only if each of the following conditions has been fulfilled: – The 2013 Can-Am ATV must be purchased as new and unused by its first owner from a Can-Am ATV dealer authorized to distribute Can-Am ATVs in the country in which the sale occurred (“Can-Am ATV dealer”);...
  • Page 132 – The 2013 Can-Am ATV must be purchased in the country in which the purchaser resides; – Routine maintenance outlined in the Operator’s Guide must be timely per- formed in order to maintain warranty coverage. BRP reserves the right to make warranty coverage contingent upon proof of proper maintenance.
  • Page 133 A GPS receiver may be supplied by BRP as standard equipment on certain 2013 Can-Am ATV's. The GPS receiver is covered by the limited warranty issued by the GPS receiver’s manufacturer and is not covered by this limited warranty. Please...
  • Page 134 If the issue has not yet been resolved, please submit your complaint in writing or call the appropriate number below: In Canada BOMBARDIER RECREATIONAL PRODUCTS INC. CAN-AM ATV CUSTOMER ASSISTANCE CENTER 75 J.-A. Bombardier Street Sherbrooke QC J1L 1W3 Tel.: 819 566-3366 In USA BRP US INC.

  • Page 135: Brp International Limited Warranty: 2013 Can-Am

    All genuine Can-Am ATV parts and accessories, installed by an authorized Can-Am ATV Distributor/Dealer at the time of delivery of the 2013 Can-Am ATV, carry the same warranty as that of the Can-Am ATV. This limited warranty will become null and void if: (1) The ATV was used for racing or any other competitive activity, at any point, even by a previous owner;...
  • Page 136 BRP or resulting from repairs done by a person that is not an authorized servicing Can-Am ATV Distributor/Dealer; – Damage caused by abuse, abnormal use, neglect or operation of the product in a manner inconsistent with the recommended operation described in the Oper- ator’s Guide;...
  • Page 137 This warranty coverage is available only if each of the following conditions has been fulfilled: – The 2013 Can-Am ATV must be purchased as new and unused by its first owner from a Can-Am ATV Distributor/Dealer authorized to distribute Can-Am ATVs in the country in which the sale occurred;...
  • Page 138 1. In the event of a controversy or a dispute in connection with this limited warranty, BRP suggests that you try to resolve the issue at the Can-Am ATV Dealer level. We recommend discussing the issue with the service manager or owner.
  • Page 139 Isoaavantie 7 FIN-96320 Rovaniemi Finland Tel.: +358 16 3208 111 For all other countries, please contact your local Can-Am ATV Distributor/Dealer (visit our website at www.brp.com for contact information), or contact our North America office at: BOMBARDIER RECREATIONAL PRODUCTS INC.

  • Page 140: Brp Limited Warranty For The European And The Russian Economic Areas And Turkey: 2013 Can-Am Tm Atv

    All genuine Can-Am ATV parts and accessories, installed by an authorized Can-Am ATV Distributor/Dealer at the time of delivery of the 2013 Can-Am ATV, carry the same warranty as that of the ATV.
  • Page 141 This warranty coverage is available only if each of the following conditions has been fulfilled: – The 2013 Can-Am ATV must be purchased as new and unused by its first owner from a Can-Am ATV Distributor/Dealer authorized to distribute Can-Am ATVs in the country in which the sale occurred;...
  • Page 142 – The product must have undergone proper registration by an authorized Can-Am ATV Distributor/Dealer; – The 2013 Can-Am ATV must be purchased in the EEA and the Russian economic areas and Turkey; – Routine maintenance outlined in the Operator’s Guide must be timely per- formed in order to maintain warranty coverage.
  • Page 143 1. In the event of a controversy or a dispute in connection with this limited warranty, BRP suggests that you try to resolve the issue at the Can-Am ATV Dealer level. We recommend discussing the issue with the Can-Am ATV Distributor/Dealer's service manager or owner.
  • Page 144 For all other countries, please contact your local Can-Am ATV Distributor/ Dealer (visit our website at www.brp.com for contact information), or contact our North America office at: BOMBARDIER RECREATIONAL PRODUCTS INC. Customer Assistance Center 75 J.-A. Bombardier Street Sherbrooke QC J1L 1W3 Tel.: 819 566-3366...
  • Page 145 ADDITIONAL TERMS AND CONDITIONS FOR FRANCE ONLY The following terms and conditions are applicable to products sold in France only. The seller shall deliver goods that are complying with the contract and shall be re- sponsible for defects existing upon delivery. The seller shall also be responsible for defects resulting from packaging, assembling instructions or the installation when it is its responsibility per the contract or if accomplished under its responsibility.
  • Page 146 This page is intentionally blank ______________...

  • Page 147: Customer Information

    CUSTOMER INFORMATION ______________...

  • Page 148: Privacy Information

    PRIVACY INFORMATION BRP wishes to inform you that your coordinates will be used for safety and war- ranty related purposes. Furthermore, BRP and its affiliates may use its customer list to distribute marketing and promotional information about BRP and related products.
  • Page 149 STOLEN UNITS: If your personal ATV is stolen, you should notify BRP or an autho- rized Can-Am dealer. We will ask you to provide your name, address, phone num- ber, the vehicle identification number and the date it was stolen.
  • Page 150 CHANGE OF ADDRESS/OWNERSHIP This page is intentionally blank ______________...
  • Page 151 CHANGE OF ADDRESS/OWNERSHIP ______________...
  • Page 152 CHANGE OF ADDRESS/OWNERSHIP ______________...
  • Page 153 CHANGE OF ADDRESS/OWNERSHIP ______________...
  • Page 154 CHANGE OF ADDRESS/OWNERSHIP ______________...
  • Page 155 Please verify with your dealer to ensure your vehicle has been registered with BRP. While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious injury or death.
