Outback PX-H4460 Assembly And Operating Instructions Manual

Phoenix 4 burner black and phoenix 6 burner black gas barbecues
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Assembly and Operating Instructions for Outback®

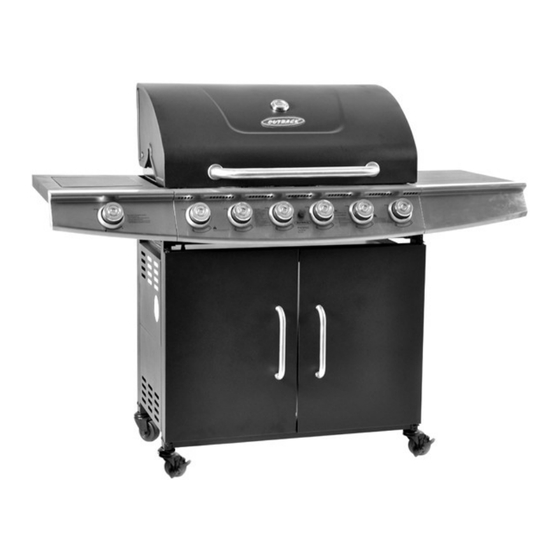

Phoenix 4 Burner Black and Phoenix 6 Burner Black Gas Barbecues
PX-H4460
Photographs are not to scale.
Specifications subject to
change without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check
that the hose connections are tight and leak test each time you reconnect the gas
bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
PX-H5660
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
EN (Europe)
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX-H4460 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outback PX-H4460

Summary of Contents for Outback PX-H4460

  • Page 1 Assembly and Operating Instructions for Outback® Phoenix 4 Burner Black and Phoenix 6 Burner Black Gas Barbecues EN (Europe) PX-H4460 PX-H5660 Photographs are not to scale. Specifications subject to 0359 change without prior notice. For outdoor use only. Not for commercial use.

  • Page 2: Table Of Contents

    1. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® Phoenix 4 Outback® Phoenix 6 CODE PART Burner Black Burner Black Hood (Pre-Assembled to Body) ...

  • Page 3: Burner

    2.1. Parts Diagram: 4 Burner Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

  • Page 4: Burner

    2.2. Parts Diagram: 6 Burner Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

  • Page 5: M4X10 Bolt

    3. Hardware Reference Diagram Specifications subject to change without prior notice. CODE PART ILLUSTRATION CODE PART ILLUSTRATION ST4.0x10 M6x40 Screw Bolt M4x10 M6 Nut Bolt M6x15 Bolt...
  • Page 6 4. Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. The assembly of this barbecue requires 2 people. Remove all cooking components, flame tamer and any internal packaging from the Barbecue Body. Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present.

  • Page 7: M6X15 Bolt

     Phoenix 4B  Phoenix 6B Attach the Back Panel (C15) to the assembled portion of the cabinet using the ST4.0x10 Screws (D1).  Phoenix 4B  Phoenix 6B Attach the Upper Body Support (C8) to the front legs using M6x15 Bolts (D3).

  • Page 8: M6X40 Bolt

     Phoenix 4B  Phoenix 6B Carefully turn the cabinet upside-down. Attach the Casters (C17) into the rear legs and the Lockable Casters (C18) into the Front legs. Carefully turn the completed cabinet over, right side up.  Phoenix 4B ...
  • Page 9  Phoenix 4B  Phoenix 6B Connect the gas hose to the barbecue. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner.
  • Page 10  Phoenix 4B  Phoenix 6B Attach the Side Burner Shelf (C1) to the barbecue body using M4x10 Bolts (D2) and M6x15 Bolts (D3), making sure that the side burner shelf is fixed onto the left side of the body. ...
  • Page 11  Phoenix 4B  Phoenix 6B Place the Side Burner Grid (C2) onto the side burner shelf.  Phoenix 4B  Phoenix 6B Fix the Electronic Ignition Assembly (C19) and Heat Shield (C20) to the front left leg by inserting two ST4.0x10 Screws (D1) through the electronic ignition assembly and heat shield and screwing into the front left leg.
  • Page 12  Phoenix 4B  Phoenix 6B Connect the wires to the electronic ignition assembly as shown in the diagram in the next step. Insert the electronic ignition battery (not supplied) into the battery compartment, ensuring the battery is correctly installed according to the (+) (-) markings. ...
  • Page 13  Phoenix 4B  Phoenix 6B Attach Drip Tray Right Bracket (B10) to the right legs using ST4.0x10 Screws (D1) as shown. Repeat above process for Drip Tray Left Bracket (B9).  Phoenix 4B  Phoenix 6B Phoenix 4B: Fit the Doors (C11, C12) to the cabinet by depressing the spring pins and placing into the cabinet.
  • Page 14  Phoenix 4B  Phoenix 6B Phoenix 4B Users Phoenix 6B Users Carefully lay the Flame Tamer (B6) into the barbecue body ensuring it lies level within the body. Lay the Grills (B7) and Griddle (B8) into place. 4/6 burner model configuration: Left — Cooking Grill, Right — Cooking Griddle. NOTE: Ensure that the flame tamer lies directly underneath the grills.
  • Page 15 Turn off the gas supply at the gas bottle Retighten all joints Repeat test If bubbles form again do not use the barbecue and contact your local Outback distribu- tor for assistance. Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints...

  • Page 16: Important Information

    5. Important Information  Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and before assembly and use of your barbecue. connections of the barbecue after assembly.
  • Page 17 SAFELY AND EFFICIENTLY. USE OF AN with more than 50% of the cooking area as a INCORRECT OR FAULTY REGULATOR IS solid plate — this includes baking dishes. DANGEROUS AND WILL INVALIDATE ANY Full coverage will cause excessive build-up WARRANTY. Please consult your local gas of heat and damage the barbecue.
  • Page 18 or lid before lighting. Never light your 8.7. Roasting Hood Cooking barbecue or side burner with the hood or lid Barbecues equipped with a roasting hood give closed. the option to form an ‘oven’ for roasting or baking food, such as joints of meat or whole Ensure all knobs are in the off position.

  • Page 19: Care And Maintenance

    meat towards the centre of the rod. Make gatherings, it will be necessary to turn off and sure the fork is fully into the meat. Slide the cool the barbecue every two hours to remove other fork onto the rod, into the meat, and food debris from the drip tray (and foil liner, if tighten the thumb screw once in place.
  • Page 20 Outback® in storage, clean with a soft brass wire brush. barbecue covers and other accessories are available from your local Outback® stockist. 9.3. Flame Tamer (where supplied) Remove any food residue from the flame tamer Even when your barbecue is covered for its...

  • Page 21: Technical Specifications

    Store your barbecue in a Heat Injector Burners Gas /Pressure Approval Input Size cool dry place. Outback® 0.89mm 28-30 mbar Butane Phoenix 0359 11.8 Cover the burners with aluminium foil in order to or 37 mbar Propane 4 Burner 359BR665 0.89mm...

  • Page 22: Troubleshooting

    11. Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas Clean jets and gas hose hose Electrode or ignition button wire is...
