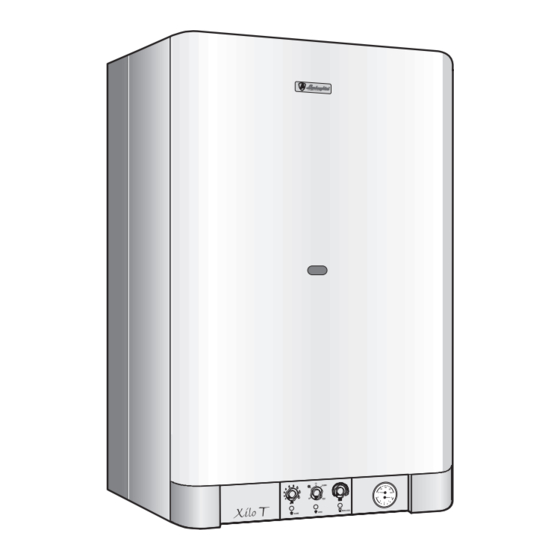

- Page 1 CERTIFICATED COMPANY ISO 9001 WALL-HUNG GAS BOILER FOR HEATING FOR HIGH EFFICIENCY - MODULATING USER MANUAL For the attention of the INSTALLATION TECHNICIAN: make sure that this manual is handed over to the USER THIS APPLIANCE CONFORMS TO ISA 13 20 MS W TOP...
-
Page 3: Table Of Contents
Carefully read this manual to know all information about the appliance operation. “LAMBORGHINI AFTER-SALE SERVICE”, is at your disposal to grant you a QUALIFIED MAINTENANCE and a VERY PROMPT AFTER-SALE SERVICE LAMBORGHINI CALORECLIMA For boiler installation and location: STRICTLY FOLLOW LOCAL SPECIFICATIONS IN FORCE. -
Page 4: General Instructions
GENERAL INSTRUCTIONS This booklet constitutes an integral and essential part of the product and should be preserved for any further consultation. Read carefully the instructions contained in this booklet as they provide important directions regarding the operation of the appliance, allowing a great saving in its use and maintenance. If the appliance is sold or transferred to other people or if you move house and leave your apartment, ensure that the manual remains with the appliance so that it can be used by the new owner. -
Page 5: Instruction For The Use
INSTRUCTION FOR THE USE G In case of breakdown and/or malfunctioning of the appliance, disconnect it avoiding any attempt of repair or direct intervention. Call exclusively professionally qualified personnel. Any repair must be carried out by an after-sale service centre “LAMBORGHINI SERVICE” authorised by the manufacturing firm, and using original replacements exclusively. -
Page 6: Checks And Maintenance
CHECKS AND MAINTENANCE G Prima di avviare la caldaia far verificare da Personale Qualificato “LAMBORGHINI SERVICE”: a) that the data on the information plate corresponds to that required by the gas, electrical and water supply networks; b) that the pipes which branch off from the boiler are lined with suitable thermally-insulated sheathing; the proper functioning of the flue pipe;... -
Page 7: Dimensions Mm
DIMENSIONS mm XILO T 20 MS W TOP Max. 3000 Max. 3000 CONTROL PANEL AND ADJUSTMENTS Constant light: Ignition shutdown Constant light: No water Fast flashing light: Sensor fault Fast flashing light: TST shutdown Slowly flashing light: Air pressure switch(MS) Should the boiler shut down it must be reset by rotating functions selector switch 6 to position A. -
Page 8: Ignition - Operation - Shutdown Instructions
IGNITION - OPERATION - SHUTDOWN INSTRUCTIONS IGNITION Open the gas tap and tun the selector switch (6) to the desired position. The burner will ignite automatically. Should ignition fail to take place check the lock-out warning light (1) and fault warning light (3) to see if they have come on. -
Page 9: Fault-Finding Chart
FAULT-FINDING CHART FAULT CAUSE REMEDY 1 NO IGNITION A. Gas cock closed A. Open gas cock B. “Lock-out” button locked B. Reset by pressing C. No flame detection C. Call technical service D. No ignition spark D. Call technical service E. - Page 12 BURNERS WALL HUNG AND FLOOR STANDING GAS BOILERS CAST IRON AND STEEL BOILERS WARM AIR HEATERS WATER TREATMENT AIR CONDITIONING Le illustrazioni e i dati riportati sono indicativi e non impegnano. La LAMBORGHINI si riserva il diritto di apportare senza obbligo di preavviso tutte le modifiche che ritiene più...
