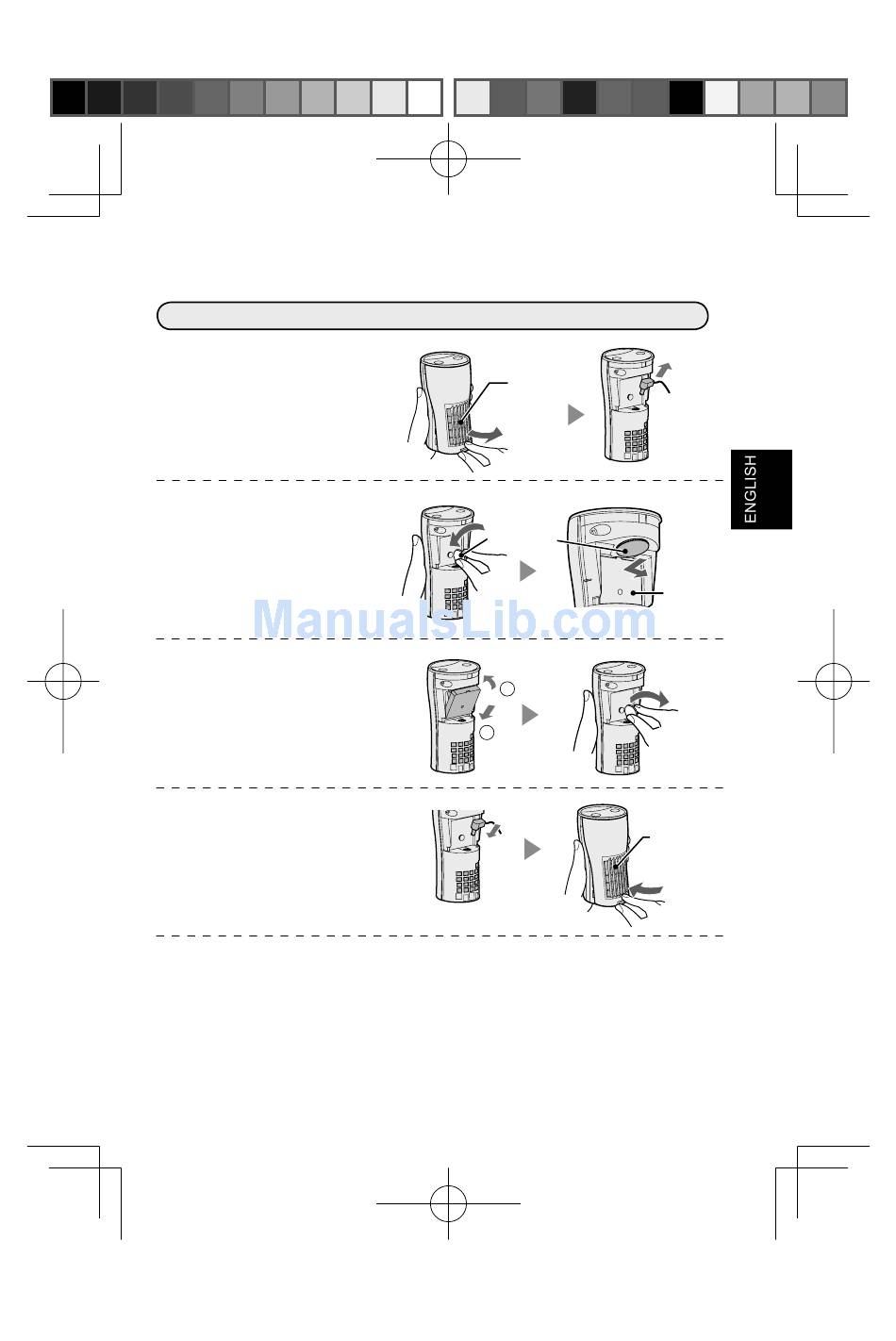

How to replace Plasmacluster Ion Generating Unit
Remove the fi lter
1
cover and pull
out the plug for
connecting the

main unit

Unscrew the screw
2
that fi xes the
Plasmacluster Ion
Generating Unit
and remove it
Attach a new
3
Plasmacluster Ion
Generating Unit and
fi x it with a screw
Connect the plug for
4
connecting the main
unit and attach the
fi lter cover
Insert the cigar plug in the cigar lighter socket and check
5
the Unit Replacing Light is turned OFF
• After the replacement, you may feel the sound "Zi, Zi ..."(sound generated by
Plasmacluster ion) become larger, however, you feel it because the Plasmacluster
Ion Generating Unit is replaced with a new one. It is not a failure.
IG-DC2A.EN.indd 13 IG-DC2A.EN.indd 13
Filter
cover
With a
coin or
other item
2
1
E-11
Remove
Plasmacluster
Ion Generating
Unit
Filter
cover
Attach
