Know Your Machine; Set-Up And Assembly - Nilfisk-Advance SPECTRUM 12D Instructions For Use Manual

1
4
7
18
9
10
2
Insert the handle at the
opening at the top of the
bag housing, until the button
at handle snaps in place.
8
3
6
15
16
5
19
11
8

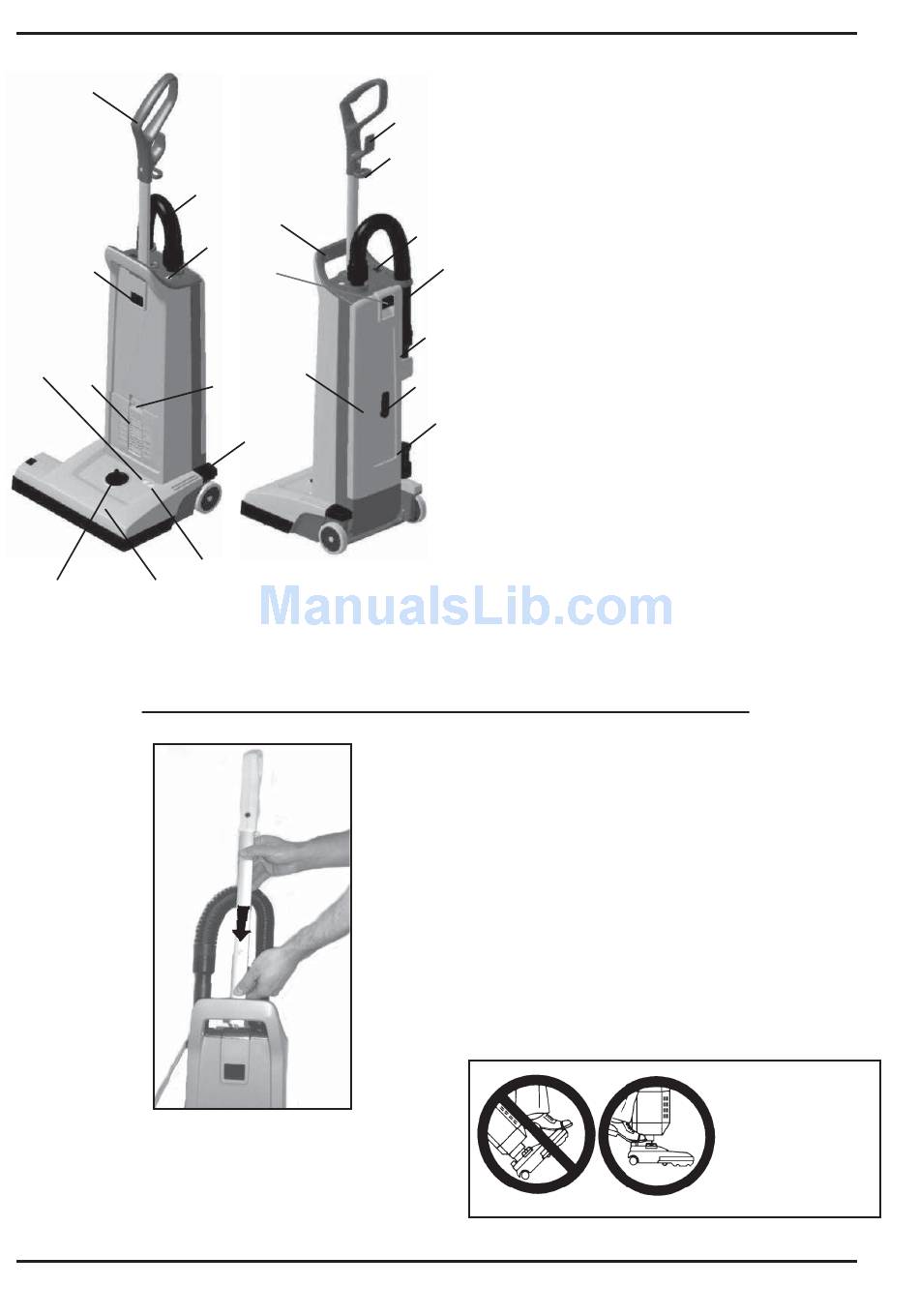

KNOW YOUR MACHINE

As you read this manual, you will occasionally run across
2
a bold number in parentheses - example: (2). These
20
numbers refer to an item shown on this page. Refer back
to this page whenever necessary, to pinpoint the location
of an item mentioned in the text.
17
13
21
7 Light, Green - Only Double Motor Unit (Dual-versions)
2
8 Light, Red Only Double Motor Unit (Dual-versions)
14
10 Brush Height Adjustment Knob
15 "Restricted Airfl ow Light"
SET UP AND ASSEMBLY
1. Carefully take out the vacuum cleaner from its carton.
2. Push the Handle (1) into the opening at the top of the Dust
compartment until the button at the rod snaps in place and
secure the handle to the housing.
Never operate the vacuum cleaner without a Dust Bag in
place. These machines are equipped with an "no bag" clip.
This means that if a dust bag not is fi tted or fi tted
uncorrectly - the dust lid (5) would not be able to close.
1 Handle
2 Cord Hook
3 Vacuum Hose
4 Handle Lock Button
5 Dust lid
6 Carrying Handle
9 Brush Housing
11 Pedal
13 Wand
14 Crevice Tool
16 Dust lid button
17 Main Power Switch
18 Exhaust Filter Cover
19 Filter Cover Latch
20 Power Cord Clamp
21 Upholstery Tool
IMPORTANT !
Foot pedal must be used
to release base to
operating/non operation
position. Failure to do so
could result in damage to
the release mechanism.
