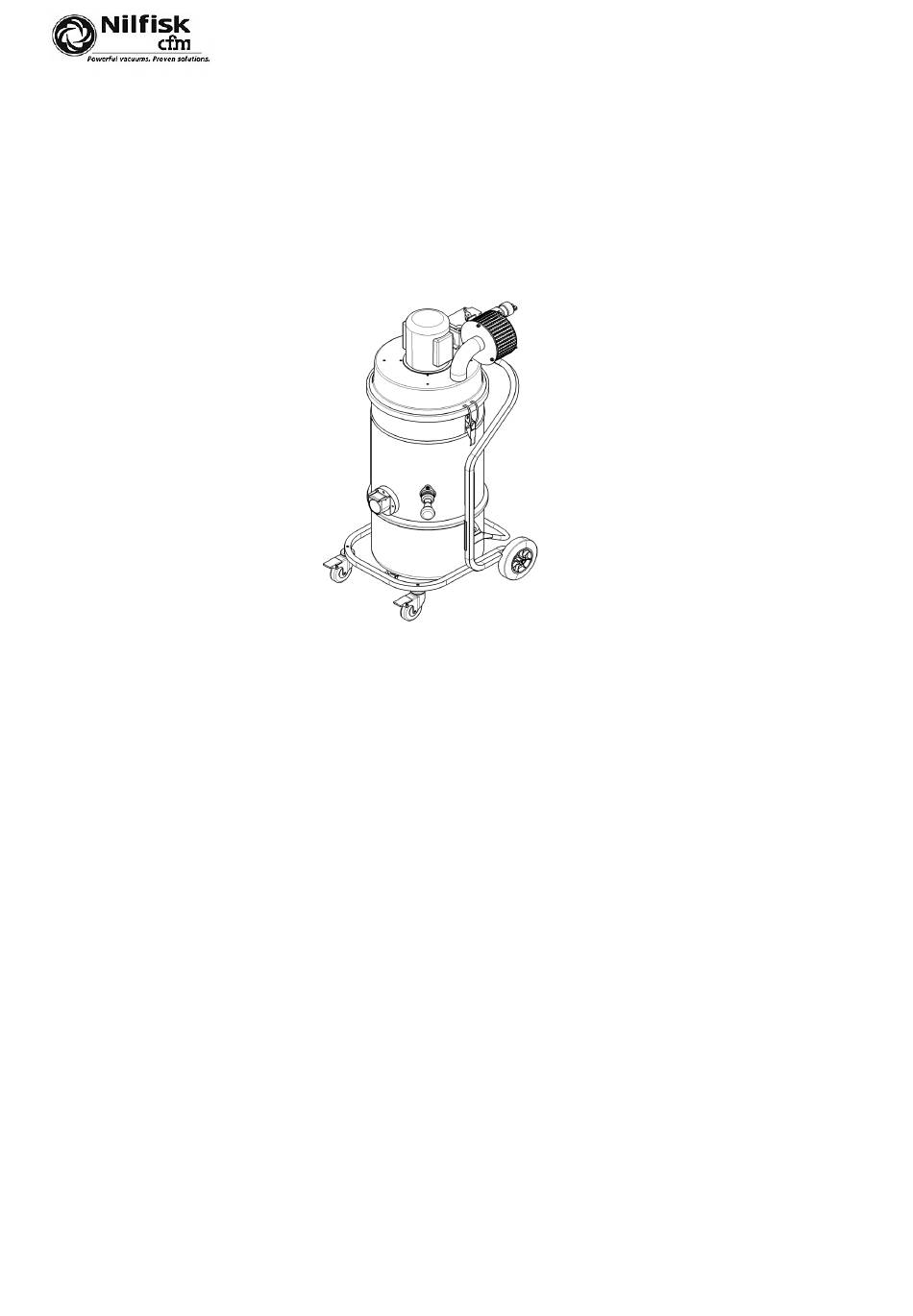

ELECTRIC EXPLOSION PROOF VACUUM CLEANER MODEL
MODELO DE ASPIRADOR ELÉCTRICO A PRUEBA DE EXPLOSIÓN
ASPIRATEUR ANTI-DÉFLAGRANT ÉLECTRIQUE MODÈLE
118EXP
(dry use only) (sólo uso en seco) (utilisation sèche seulement)
INSTRUCTIONS FOR USE
INSTRUCCIONES DE USO
INSTRUCTIONS D'UTILISATION
For Use in Class I - Group D
Class II - Group E, F and G Hazardous Locations
P/N 7 24190 A CONTACT DE MISE À LA TERRE DU FABRICANT
Para la utilización en lugares peligrosos de
clase I - grupo D, Clase II - grupo E, F y G
Pour utilisation dans les emplacements
dangereux de Classe I - Groupe D, Classe II - Groupes E, F et G
CAUTION: TO INSURE THE SAFE USE OF THIS VACUUM MACHINE,
OPERATORS MUST READ AND UNDERSTAND THE FOLLOWING
INSTRUCTIONS BEFORE ATTEMPTING TO PLACE THE MACHINE IN SERVICE
ATENCIÓN: PARA GARANTIZAR LA UTILIZACIÓN SEGURA DE ESTE ASPIRADOR,
LOS OPERADORES DEBEN LEER Y COMPRENDER LAS SIGUIENTES
INSTRUCCIONES ANTES DE INTENTAR PONER LA MÁQUINA EN MARCHA
MISE EN GARDE: AFIN D'ASSURER UNE UTILISATION SECURITAIRE DE CET
ASPIRATEUR, LES OPERATEURS DOIVENT LIRE ET COMPRENDRE LES
INSTRUCTIONS QUI SUIVENT AVANT LA MISE EN MARCHE DE CETTE MACHINE
INSTRUCTIONS QUI SUIVENT AVANT LA MISE EN MARCHE DE CETTE MACHINE
C309
02/2010
Nilfisk-Advance America, Inc., 300 Technology Drive, Malvern, Pa 19355, (610) 647-6420
