X11SSH-F/-LN4F User Manual
Power LED
The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin definitions.

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the
table below for pin definitions.
1
Power Button
PWR
Reset Button Reset
3.3 V
Red+
(Blue LED Cathode)
3.3V Stby
3.3V Stby
ID_UID_SW/3.3V Stby
3.3V
X
2 NMI
19
Power LED

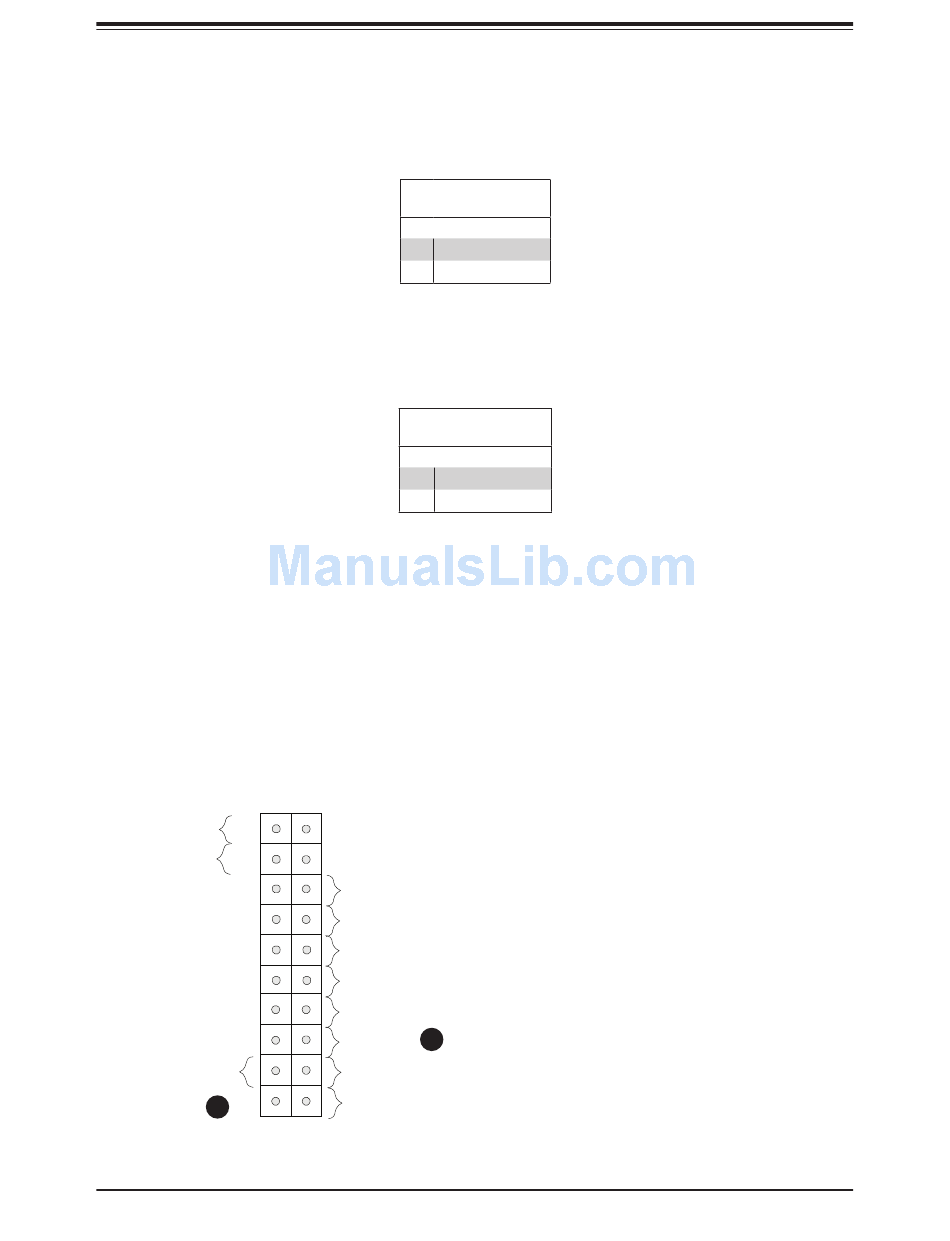

Pin Definitions (JF1)
Pin# Definition
15 3.3V
16 PWR LED
NMI Button
Pin Definitions (JF1)
Pin# Definition
19 Control
20 Ground
2
Ground
Ground
Power Fail LED
Blue+
(OH/Fan Fail)
NIC2 Activity LED
NIC1 Activity LED
HDD LED
1
FP PWRLED
X
Ground
20
44
1. PWR LED
2. NMI Button
