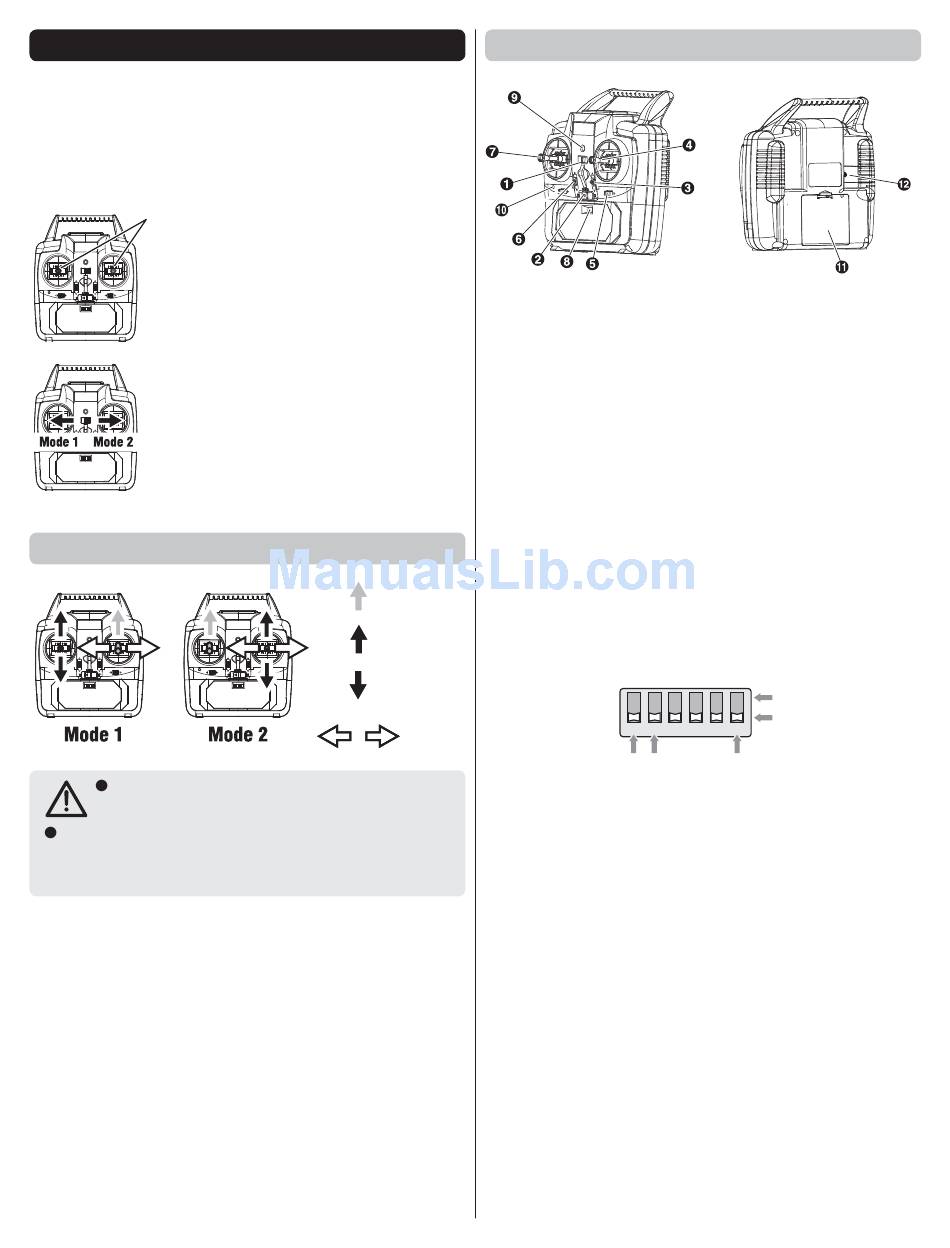

TRANSMITTER MODE SELECTION

As supplied, the transmitter is in Mode 2.
NOTE: The transmitter can be used in Mode 1 or Mode
2 with the mode change switch. After the Mode has been
changed, the throttle stick spring is cancelled.
Neutral
Position
Mode Stick Functions
The Mode change switch will only slide if the
throttle stick is in neutral.
Be sure to slide the Mode change switch all the way to
the end. The sticks will not move correctly unless the
switch is moved all the way to the end.
1. Move the left and right sticks
to the neutral position.
2. Make sure the Mode change
switch is moved all the way to
the end.
Throttle
Elevator
Mode 1 Transmitter Information
1 Mode Change Switch
2 Power Switch
3 Throttle Trim (Up/Down)
Adjusts throttle so motor will not move at the down
position.
4 Throttle Stick (Up/Down)
Controls propeller speed.
Rudder Stick (Left/Right)
Controls plane's left/right movement.
5 Rudder Trim (Left/Right)
Adjust left/right so plane flies straight.
6 Elevator Trim (Up/Down)
Adjust left /right so plane flies straight.
7 Elevator Stick (Up/Down)
Controls plane's upwards/downwards movement.
8 Function Selector
Rudder
9 On/Off Indicator
10 Charge Lamp
11 Battery Cover
12 Charger Terminal Cover
9
MODE 1 SHOWN
MODE 1
MODE 2
MODE 1 SHOWN
MODE 1 SHOWN
LOW
HIGH
1 2 3 4 5 6
RUDDER ELEVATOR CH1 CH2
REVERSER REVERSER D/R-Dual Rate
