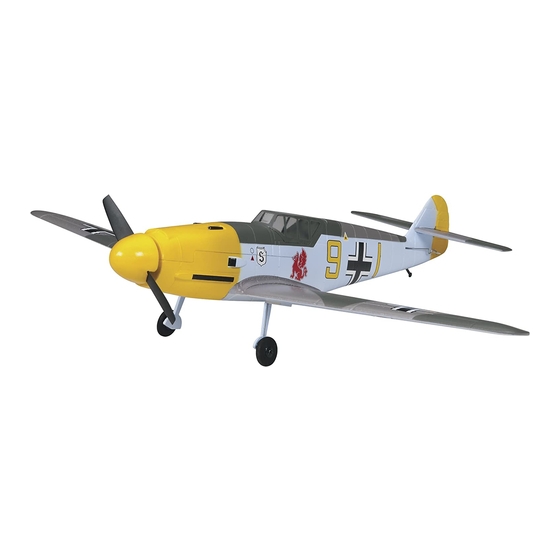

Flyzone AIRcore Me 109 Instruction Manual
  1. Manuals
  2. Brands
  3. Flyzone Manuals
  4. Toy
  5. AIRcore Me 109
  6. Instruction manual

Flyzone AIRcore Me 109 Instruction Manual

Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
Me 109
Instruction
Manual
BATTERY HATCH REMOVAL
WING INSTALLATION
flyzoneplanes.com
REQUIRED
● AirCore Power Core (FLZA6400)
● AirCore Battery (FLZA6401)
● SLT Compatible Radio System
● AirCore 2S LiPo AC/DC Charger (FLZA6411)
FLIGHT SETUP
Because transmitters other than the Tactic transmitters
may be used, the following information is included to
properly set the throws and C.G. (center-of-gravity) on
the AirCore Me 109.
The measurements are taken at the widest part of the
control surface.
Aileron Throw 3/8in [9mm] 21 deg. Up and down
Rudder Throw 7/16 in [11mm] 18 deg. Left and right
Elevator Throw 1/4 in [6mm] 16 deg. Up and down
™

Advertisement

loading
Need help?

Need help?

Do you have a question about the AIRcore Me 109 and is the answer not in the manual?

Questions and answers

Related Manuals for Flyzone AIRcore Me 109

Summary of Contents for Flyzone AIRcore Me 109

  • Page 1 Because transmitters other than the Tactic transmitters may be used, the following information is included to properly set the throws and C.G. (center-of-gravity) on the AirCore Me 109. The measurements are taken at the widest part of the control surface.
  • Page 2 REPLACEMENT PARTS FLYING THE AIRCORE AIRPLANES To order replacement parts for the AirCore Me 109, use Take off (or hand launch) directly into the wind. the order numbers in the list below. Replacement parts Hand launch with throttle set at ¾...
