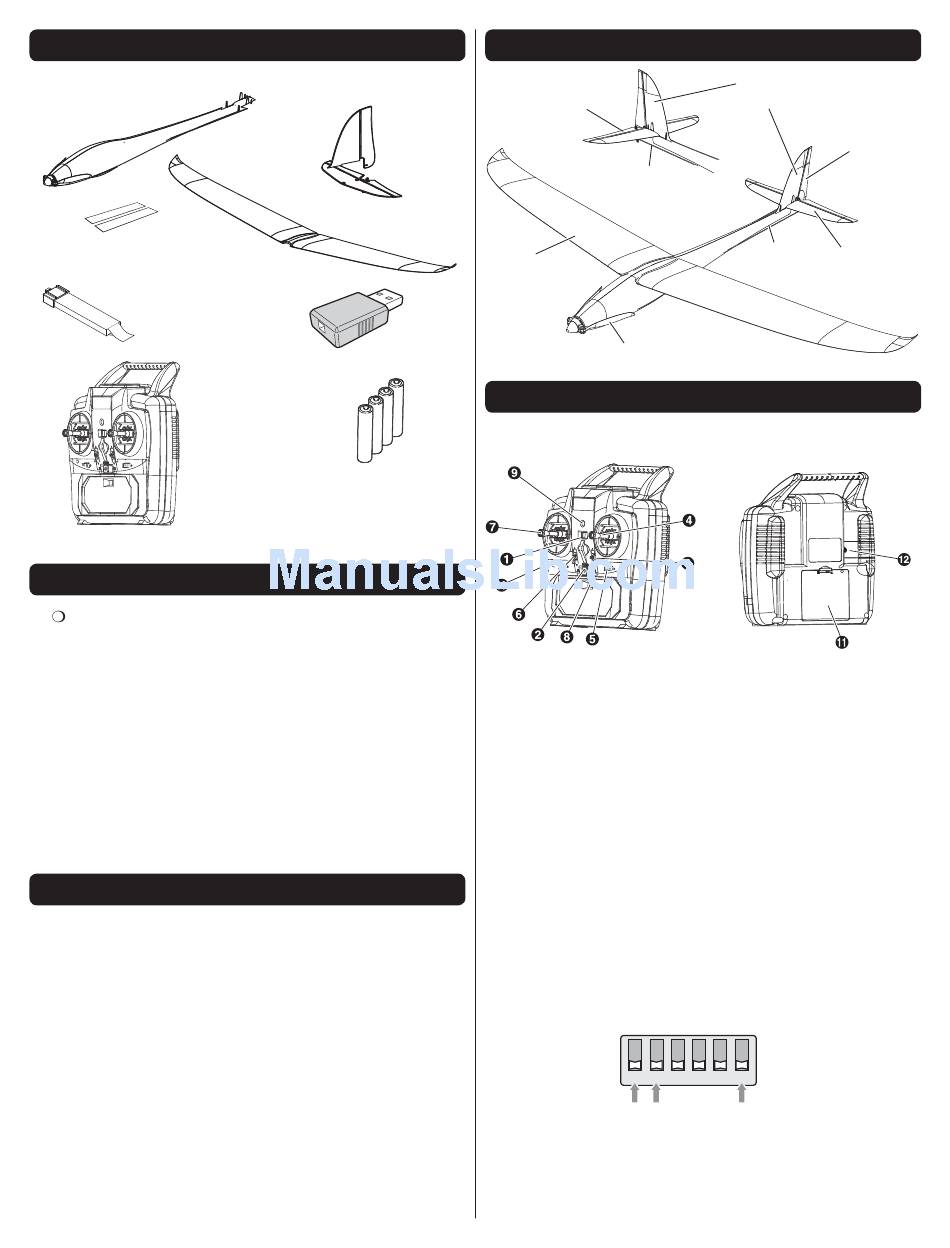

ITEMS INCLUDED
Completely Assembled
Fuselage
Tape Strips
3.7 V - 200 mAh Lithium
Polymer Battery
2.4G Radio
System
(RTF Only)
Tx-R ADDITIONAL ITEMS REQUIRED
4-channel SLT Protocol Transmitter
The Micro Calypso can be flown with Tactic transmitters (SLT
protocol). When doing this please refer to the Tactic radio
instructions and be aware some channels may need to be
reversed or re-assigned for proper operation. This includes
the throttle channel, so extra care must be taken to be sure
the throttle direction is correct.
TACJ2403 Tactic TTX403 4-Channel SLT Mini Transmitter
TACJ2410 Tactic TTX410 4-Channel SLT System
TACJ2610 Tactic TTX610 6-Channel SLT System
TACJ2650 Tactic TTX650 6-Channel SLT Computer
Transmitter
AVAILABLE PARTS
FLZA6470 Fuselage
FLZA6471 Wing
FLZA6472 Tail Surface Set
FLZA6473 Folding Prop Set
FLZA6474 Prop Blade Set
FLZA6475 Spinner/Hub
FLZA6476 Motor Set
FLZA6477 Pushrod Set
FLZA6478 Nose Cone
FLZA6479 USB Charger
FLZA6480 Receiver/Servos
FLZA6481 Gearbox Set
FLZA6482 Motor Shaft Set
FLZA6483 LiPo 3.7V 200 mAh
FLZA6484 Transmitter
Tail
Surfaces
Wing
Charger
(TxR Only)
AA Alkaline
Batteries x 4
(RTF Only)
Elevator
Wing
USB
RTF TRANSMITTER
MODE 2 SHOWN. SEE PAGE 9 FOR MODE 1.
1 Mode Change Switch
2 Power Switch
3 Elevator Trim (Up/Down)
Adjust up/down so plane flies horizontal.
4 Elevator Stick (Up/Down)
Controls plane's upwards/downwards movement.
Rudder Stick (Left/Right)
Controls plane's left/right movement.
5 Rudder Trim (Left/Right)
Adjust left/right so plane flies straight.
6 Throttle Trim (Up/Down)
Adjusts throttle so motor will not move at the down
position.
7 Throttle Stick (Up/Down)
Controls propeller speed.
8 Function Selector
Additional details on page 7 .
9 Power Indicator
10 Charge Lamp
11 Battery Cover
12 Charger Cover
3
PARTS GUIDE
Vertical
Stabilizer
Rudder
Control
Rod
Elevator
Control
Rod
Propeller
1 2 3 4 5 6
RUDDER ELEVATOR D/R-Dual Rate
REVERSER REVERSER
Rudder
Horizontal
Stabilizer
