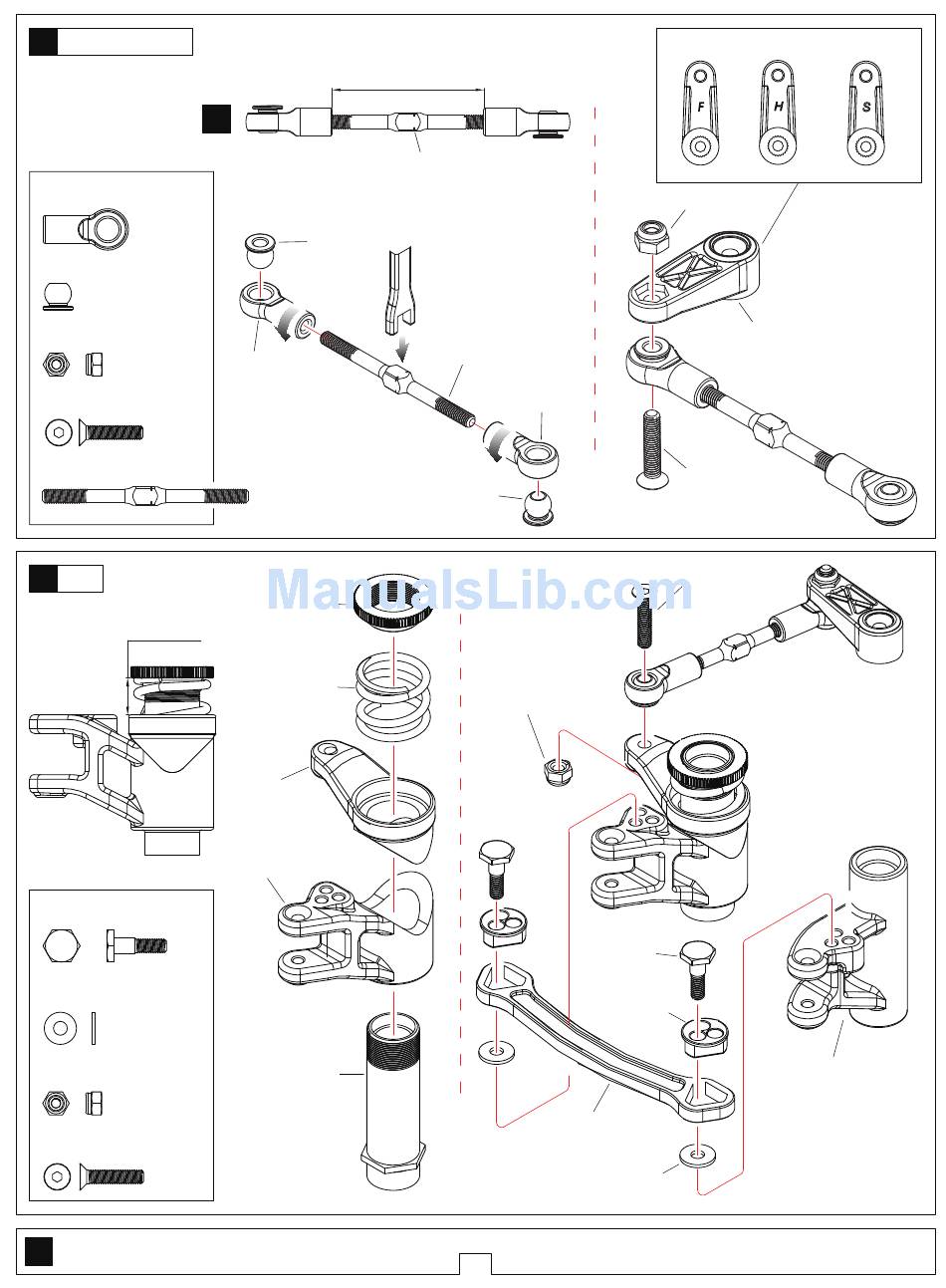

Team C T8TEt8te Assembly Instructions Manual page 4

1
Servo Saver Turnbuckle
Bag
伺服拉杆
1:1
T08760 5.8 Ball End
5.8 球头座
............2
T08759 5.8 Ball stud
5.8球头
........................2
T08666 M3 Nylon Nut
M3尼龙螺母
.....................1
T08674 M3x14 Screw
M3x14螺丝
.........1
TG8019 3x45 Turnbuckle
3x45拉杆
............1
A
2 -
Buffer
Bag
缓冲
Approx.8mm
大约8mm
T08651 Buffer Screw
缓冲螺丝
......2
T02081 3x7x0.8 Washer
3x7x0.8垫片
.....................2
T08666 M3 Nylon Nut
M3尼龙螺母
.....................1
T08674 M3x14 Screw
M3x14 螺丝
.........1
Ture-to -scale diagram
1:1
图形比例
A
-
Approx.33mm
大约33mm
▲Projection.Note direction
注意方向
T08759
5.8 Ball stud
5.8球头
T08760
5.8 Ball End
5.8 球头座
T08650
Servo Saver Nut
缓冲螺母
T08650
Servo Saver Spring
缓冲弹簧
T08762
Servo Saver-Top
缓冲座-上
T08762
Servo Saver-Bottom
缓冲座-下
T08650
Servo Saver Body
缓冲筒身
4mm
TG8019
3x45 Turnbuckle
3x45拉杆
T08760
5.8 Ball End
5.8 球头座
T08759
5.8 Ball stud
5.8球头
T08666 M3
T08651
Buffer Screw
缓冲螺丝
T08651
Steering Rack
转向缓冲连接板
T02081 3x7x0.8
1
Select the servo horn matching the servo being used.
根据伺服机选择伺服臂
Futaba-25T Hitec-24T
T08666 M3
T08620
Steering Servo Horn-F
转向伺服臂-F
T08674 M3x14
T08674 M3x14
T08651
Buffer Bushing
缓冲轴套
Sanwa/JR/KO-23T
T08762
Servo Saver-Left
缓冲座-左
