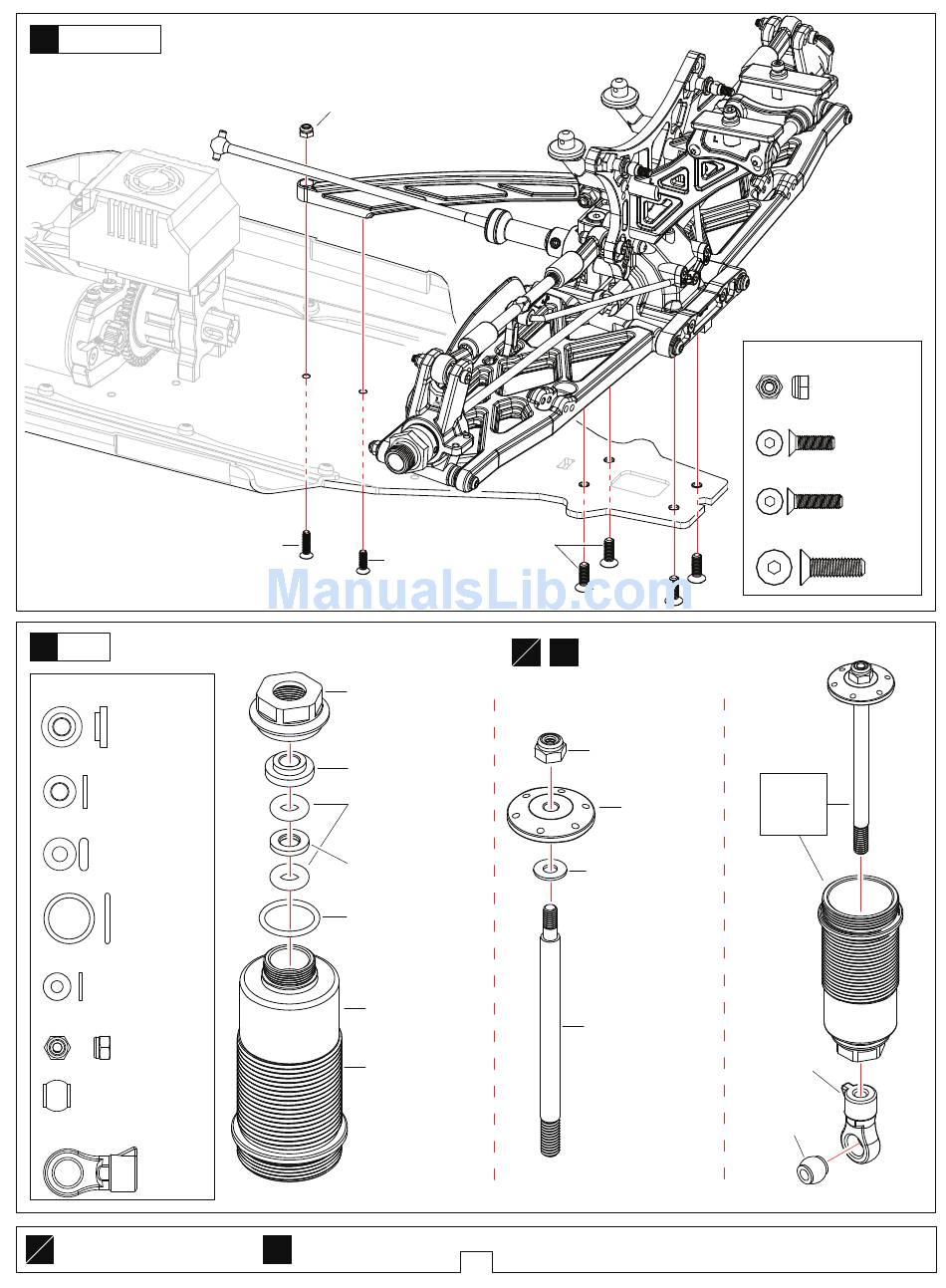

Team C T8TEt8te Assembly Instructions Manual page 18

-
29
Rear Suspension
Bag
后悬吊系统
T08674 M3x12
F
30 -
Shock
Bag
避震器
T08627 2.75mm Plastic Washer
2.75mm塑胶垫片
.....................4
T08627 1mm Plastic Washer
1mm 塑胶垫片
........................4
T08627 3.3x1.9 O-ring
3.3x1.9 O环
........................8
T08625/T08626 9x1.0 O-ring
9x1.0 O环
.....................4
T08624 2.7x5.8x0.5 Washer
2.7x5.8x0.5 垫片
........................4
T08624 M2.5 Nylon Nut
M2.5 尼龍螺母
.....................4
T08622 6.8 Ball stud
6.8 球头
...........................4
T08622 6.8 Ball End
6.8 球头座
...............4
Assemble both Front and Rear
F
R
组装前和后
F
T08666 M3
T08674 M3x10
T08625/
Shock Bottom cover
避震下盖
T08627
2.75mm Plastic Washer
2.75mm 塑胶垫片
T08627
3.3x1.9 O-ring
3.3x1.9 O环
T08627
1mm Plastic Washer
1mm 塑胶垫片
T08625/T08626
9x1.0 O-ring
9x1.0 O环
T08625
Front Shock Body-Short
前避震筒身-短
T08626
Rear Shock Body-Long
后避震筒身-长
Assemble as many times as specified
x2
需组装数量
T08674 M4x14
x2
F
R
T08624 M2.5
T08627
Shock Piston
避震活塞
T08624 2.7x5.8x0.5
T08624
Front Shock Shaft-Short
前避震轴-短
Rear Shock Shaft-Long
后避震轴-长
15
T08666 M3 Nylon Nut
M3尼龙螺母
.....................1
T08674 M3x10 Screw
M3x10螺丝
...............1
T08674 M3x12 Screw
M3x12螺丝
............1
T08674 M4x14 Screw
M4x14螺丝
.........4
Front-Short
前-短
Rear-Long
后-长
T08622
6.8 Ball End
6.8 球头座
T08622
6.8 Ball stud
6.8 球头
