Team C T8TEt8te Assembly Instructions Manual page 12

17

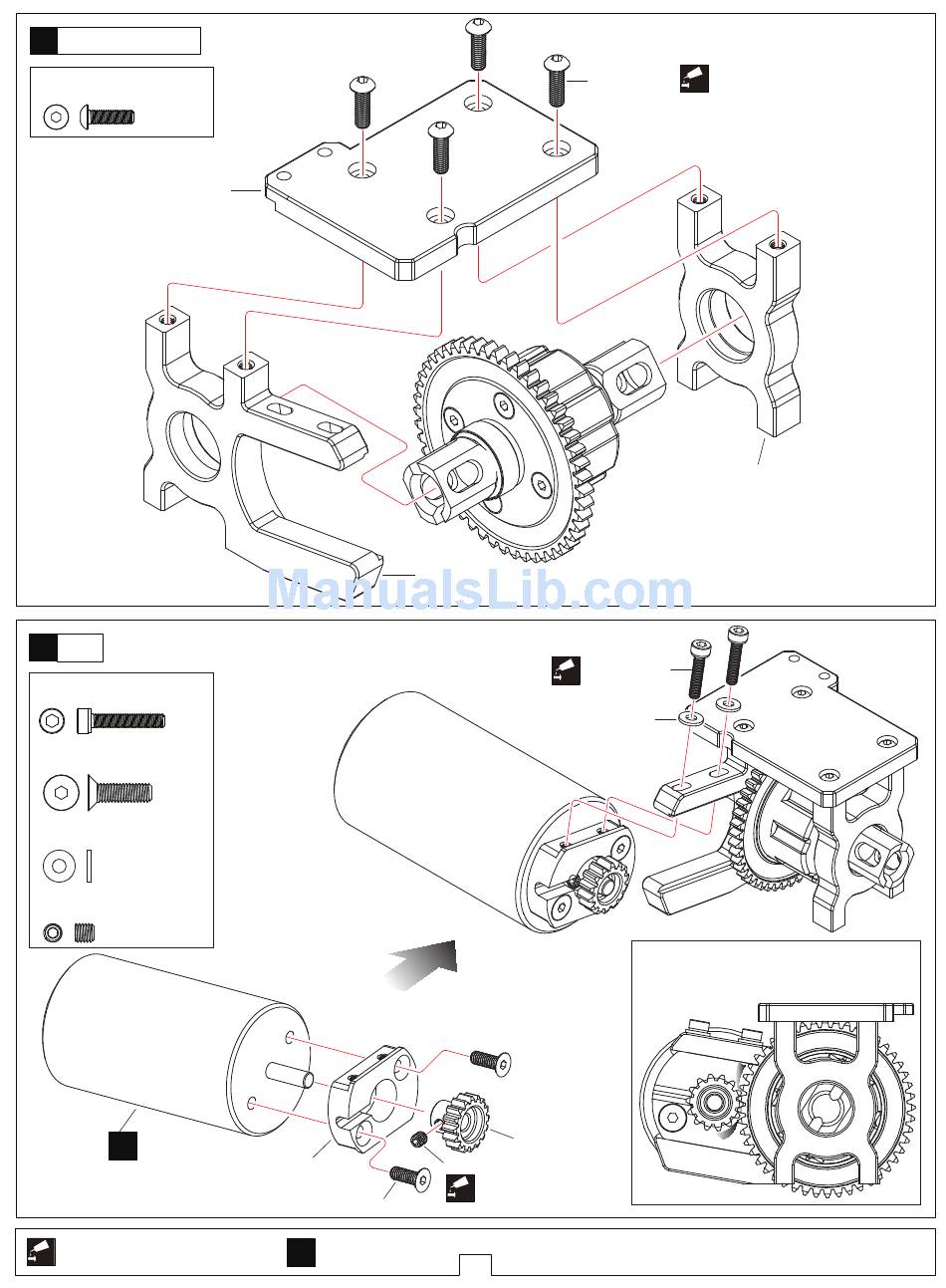

Center Differential Mount
Bag
中央差速器固定座
T08673 M3x10 Screw
M3x10 螺丝
............4
TG8031
Center Differential Plate
中央差速器固定板
C
18 -
Motor
Bag
马达
TG8028 M3x14 Screw
M3x14螺丝
......2
TG8028 M4x14 Screw
M4x14螺丝
.........2
TG8028 3x7x0.8 Washer
3x7x0.8垫片
.....................2
H393 M4x4 Screw
M4x4螺丝
.....................1
X
Motor
马达
Apply threadlocker(screw cement)
打螺丝胶水
Screw
Cement
C
-
TG8028
Motor Mount
马达固定座
TG8028
Motor Mount
马达固定座
TG8028 M4x14
X Must be purchased separately
需另购物品
T08673 M3x10
TG8028 M3x14
Screw
Cement
TG8028 3x7x0.8
H393 13T
H393 M4x4
Screw
Cement
9
Screw
Cement
TG8028
Center Differential Mount-Rear
中央差速器固定座-后
Tighten the screws with one sheet of paper
inserted between both gears.
两齿轮之间的间隙大约为一张普通纸的厚度。
