Team C T8TEt8te Assembly Instructions Manual page 2

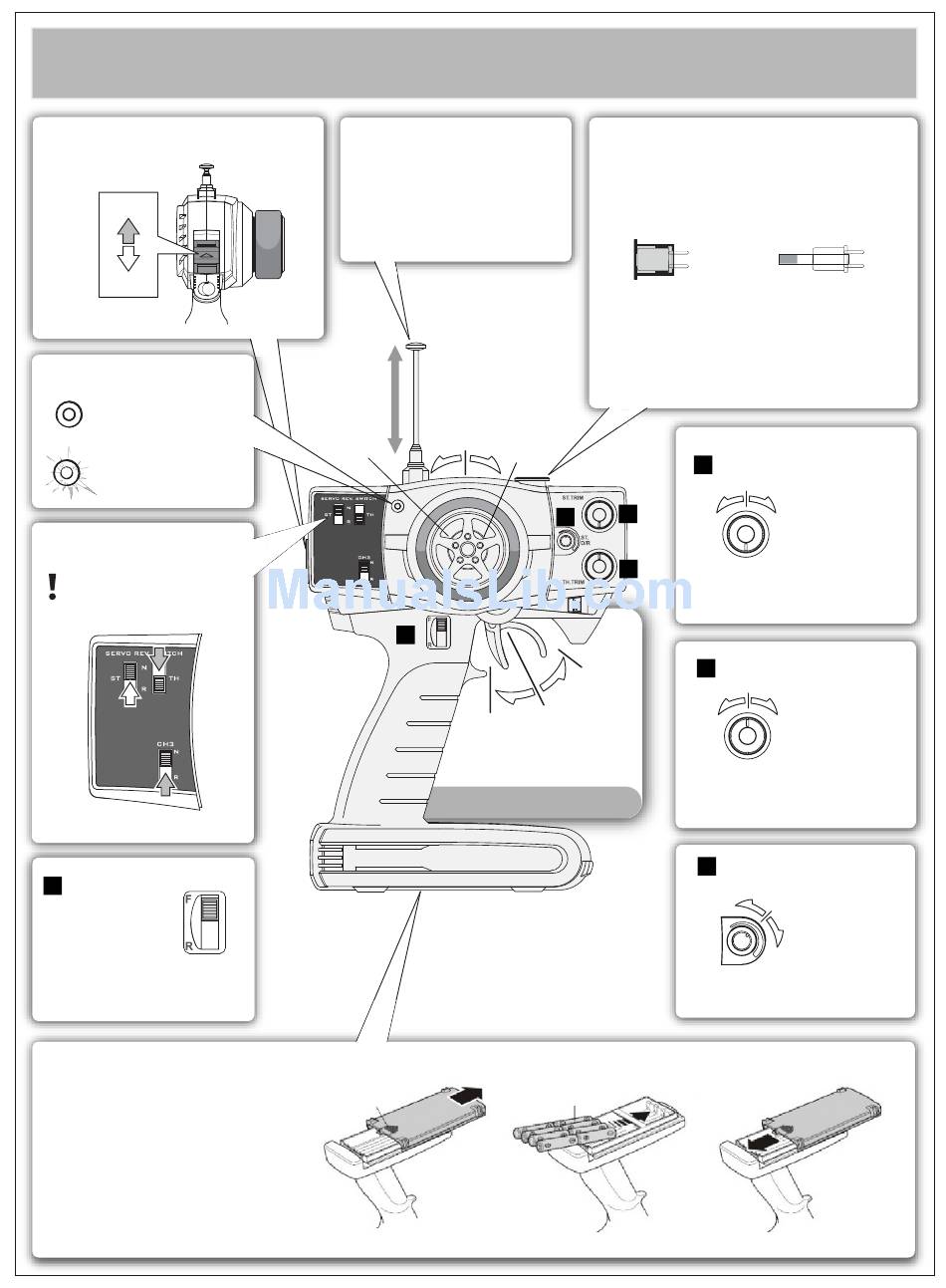

Transmitter Preparation
调整遥控器
Power Switch
电源
ON
OFF
Battery Level Indicator
电池标准指示灯
Good Batteries
标准的电池
Low Batteries(Light Blinks)
低电的电池(电灯闪烁)
Reverse Switch
反向开关
Servo Factory Settings
工厂安装(当转向/油门反向时调整用)
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
3ch Switch
4
第三动作开关
This switch is used for optional parts.
这个开关用于选择部分
Transmitter Battery Installation
遥控器电池安装
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
在遥控器的底部打开电池盖子，安装电池。
跟随电池的指示在电池盒里面指定
Antenna
天线
Extend the antenna to the maximum
Length for best performance
天线拉的越长性能越好
Straight (neutral)
Left turn
竖直(中立)
向左旋转
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
4
Forward
前进
To be used for throttle operation
用於操作油门
Throttle Trigger
油门启动
Battery Cover
电池盖
27MHzTransmitter Crystal （TX）
27MHz 发射机晶片(TX)
Transmitter crystal(TX)
发射机晶片
The crystal can be replaced to change frequencies.
Note : You must also change receiver crystals!
Do not use AM crystals
更换晶片可以改变频率
注意︰ 你也必须改变接收机晶片﹗
Right turn
向右旋转
1
3
2
Brake
刹车
Stop(Neutral)
停止位置
8X
AA Alkaling Batteries
AA 碱性电池
Receiver crystal(RX)
接收机晶片
Steering Trim
1
方向调整
To be used for trimming the steering
operation
用于调整转向中立点
Throttle Trim
2
油门/后退(刹车)调整
To be used for trimming the throttle
operation
用于调整油门中立点
Steering Dual Rate
3
转向舵角量
To be used to adjust steering servo throw
用来调整转向伺服
