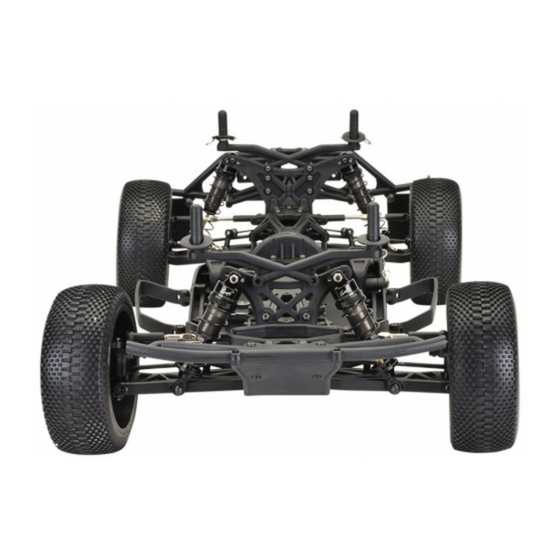

Team C TS4-TE Manual

1:10 scale radio 4wd electric short-course
Hide thumbs Also See for TS4-TE:

Advertisement

Quick Links

Download this manual
1:10 Scale Radio 4wd electric
short-course
Length
......................................................................................................515mm
Width
......................................................................................................290mm
Height
......................................................................................................160mm
All manuals and user guides at all-guides.com
TS4-TE

Advertisement

loading

Related Manuals for Team C TS4-TE

Summary of Contents for Team C TS4-TE

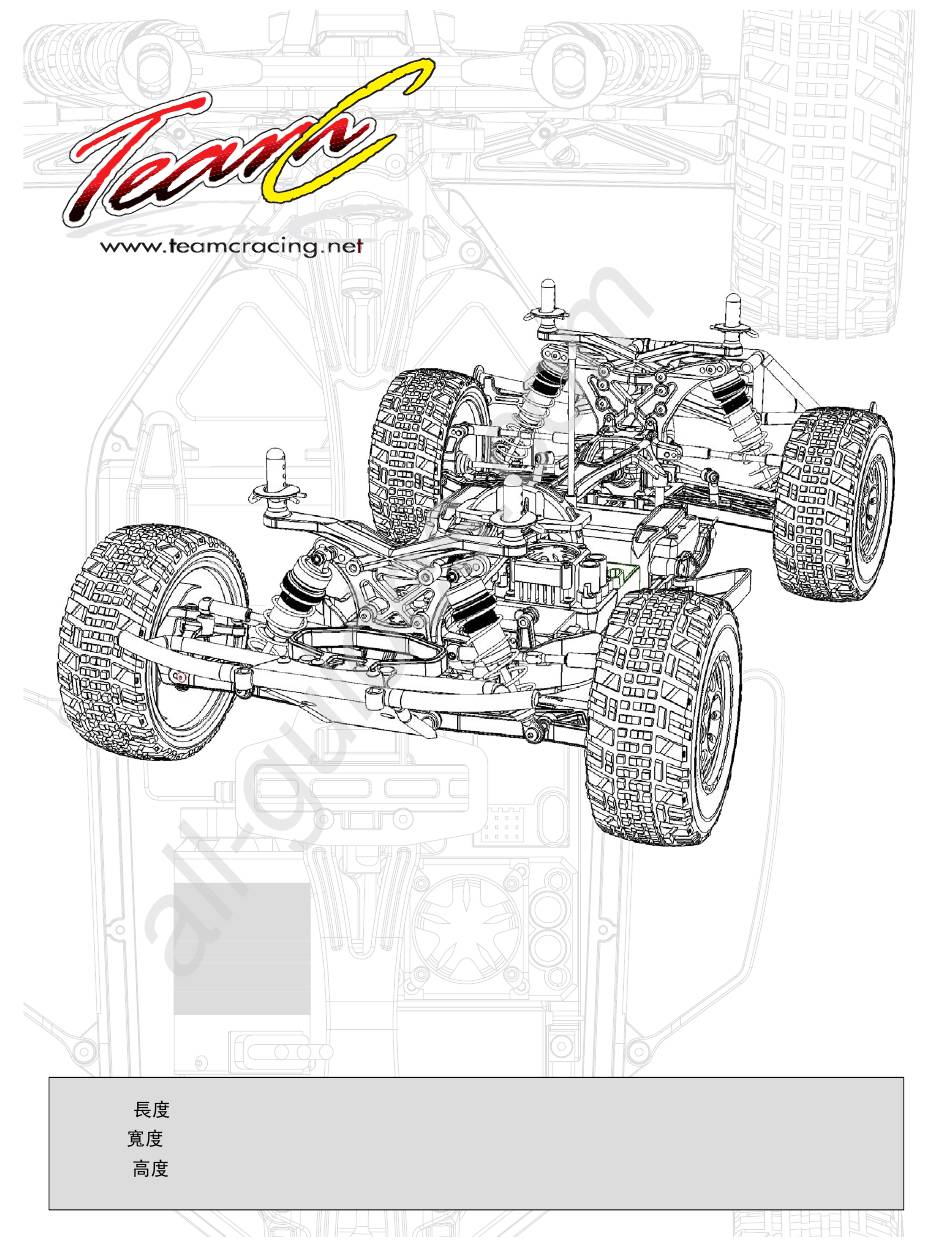

  • Page 1 All manuals and user guides at all-guides.com TS4-TE 1:10 Scale Radio 4wd electric short-course Length …………………………………………………………………………………………515mm Width …………………………………………………………………………………………290mm Height …………………………………………………………………………………………160mm...

  • Page 2: Transmitter Preparation

    All manuals and user guides at all-guides.com Transmitter Preparation Power Switch 27MHzTransmitter Crystal Antenna Transmitter crystal(TX) Receiver crystal(RX) Extend the antenna to the maximum Length for best performance The crystal can be replaced to change frequencies. Note : You must also change receiver crystals! Do not use AM crystals Battery Level Indicator Good Batteries...

  • Page 3: Tools Required

    All manuals and user guides at all-guides.com Transmitter Preparation A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging. Set up the radio control system as indicated below Motor Battery Electronic Speed Controller Switch Transmitter...
  • Page 4 All manuals and user guides at all-guides.com TS4044 TU0418 Chassis Upper deck column Rear Arm Mount-Rear TS4015 Right Side plate-R TS4044 Upper deck column TS4015 Left Side plate-R TS4022 Battery mount TS4015 TS415 Right Side plate-F Chassis TR4058 M3x10 TR4058 TR4058 M3x10 M3x10 T08807...
  • Page 5 All manuals and user guides at all-guides.com Diff TS4039 16T gear TS4040 3.0 E-ring TS4039 Diff shaft TS4039 5.1x13x0.2 TS4040 3.0 ………………………3 TS4039 5.1x13x0.2 Washer T04040 4.8x1.6 …………………3 T04040 4.8x1.6 O-ring T04040 Diff housing TS4039 ……………………3 10T gear T02099 10x15x4 Ball Bearing ……………3 T02099 10x15x4 TS4039 Diff shaft...
  • Page 6 All manuals and user guides at all-guides.com Diff T04040 M2.5x6 T04040 M2.5x6 30000# for Front 10000# for Rear T04040 M2.5x6 Screw ……………12 Mid CVD Center Front TS4032 105mm center front CVD TS4032/TS4033 M3x8 Screw T02100 5x10x4 ……………2 86000 T04041 5.1x8x0.2 16T gear 86000 5.1x8x0.2 Washer TS4032...
  • Page 7 All manuals and user guides at all-guides.com Center Diff Steering Servo T02081 3x7x0.8 TR4059 M3x10 TS4043 Ball stud-short TS4021 TR4059 M3x8 Screw Servo Mount ……………1 Servo TR4059 M3x10 Screw Select the servo horn matching the servo being used. ……………4 TS4043 Ball stud-Short ……………1 T04006 Steering servo horn...
  • Page 8 All manuals and user guides at all-guides.com Steering Servo Receiver TS4021 M3x8 T02087 Double-sided tape TS4021 Electronic equipment mount TR4058 M3x8 TR4058/TS4021 M3x8 Screw ………………7 Buffer T04003 Servo Saver-left TR4049 TS4042 Servo Saver Body Ball stud-Long T04003 Servo Saver-Top T04038 M3 TU4024 TS4042 Steering Rack...
  • Page 9 All manuals and user guides at all-guides.com Buffer 15mm 4.0mm T04024 3x40 T04014 T04014 T04031 4x7x2.5 TR4058 M3x8 Screw T04031 4x7x2.5 ………………2 TR4049 T04031 4x7x2.5 Ball bearing …………………4 T04014 4.8mm Ball End-Long ……2 T04024 3x40 Turnbuckle TR4058 M3x8 …………1 TR4059 M3x10 Upper Deck-Front / Front Upper Suspension Arm Mount T04019 TR4004...
  • Page 10 All manuals and user guides at all-guides.com Upper Deck-Rear / Rear Upper Suspension Arm Mount TS409 M3x16 TS409 Carbon Center diff upper plate T02087 TS4020 Center diff upper plate TR4059 M3x10 T08814 M3x5 TR4004 Upper Suspension Arm Mount-R TR4014 Upper Deck-R TS4042 T08814 M3x5 Screw Ball stud-Long...
  • Page 11 All manuals and user guides at all-guides.com Front Hub Carrier TR4007 TR4007 Front Hub Carriers Front Hub Carriers 10 Degree-Right 10 Degree-Left TS4027 M3x3 Screw TR4008 TR4008 TS4042 … ……… ……………2 Front Hub Carriers Front Hub Carriers Ball stud-Long 13 Degree-Left 13 Degree-Right TS4027 2X9.8 Pin …………………2...
  • Page 12 All manuals and user guides at all-guides.com Front Suspension T04002 Brace bushing TU0416 Front arm mount-F TR4059 M3x10 TR4059 M3x10 Screw ……………2 T04034 3x48.5 T04034 3x48.5 Arm shaft ………………2 Turnbuckle Front upper Rod-L 29.5mm 1:1 x1 4.0mm T04014 3x51 Turnbuckle TS4035 3x56 Front upper Rod-R 29.5mm...
  • Page 13 All manuals and user guides at all-guides.com Turnbuckle Front suspension TS2026 Swaybay ball end TS2026 Swaybay ball TS2026 M3x10 TS2026 Swaybay ball end TS4026 M3x10 Screw ………………2 TS4026 Swaybar ball ……………………2 Assemble both Left and Right Ture-to -scale diagram Assemble as many times as specified...
  • Page 14 All manuals and user guides at all-guides.com Front suspension TS4025 M2x6 TS4041 1.8 Swaybar TS4025 Swaybar mount TS4026 M3x3 TS4026 M3x3 Screw ……………………2 TS4025 M2x6 Screw ………………2 Front suspension TR4059 M3x12 Screw …………2 TR4059 M3x14 Screw …………2 TR4059 M3x12 TR4059 M3x14 TR4059 M3x12 TS4011...
  • Page 15 All manuals and user guides at all-guides.com Front bumper TR4059 M3x8 TS4017 Front bumper stick TR4059 M3x12 TS4017 Front bumper plate T02081 3x7x0.8 Washer ……………………2 TR4059 M3x8 Screw T02081 3x7x0.8 ……………4 TR4059 M3x8 TR4059 M3x12 Screw TR4059 M3x12 …………4 Rear hub carriers <...
  • Page 16 All manuals and user guides at all-guides.com Rear hub carriers < L > TR4059 M2.5x4 Screw …………………2 TR4046 2.5x30 Arm pin TR4011 2.5x6x1 ………………2 TR4011 2.5x6x1 Washer ……………………4 TR4011 2.5x6x1 < R > TS4013 Rear lower arm-L TR4059 M2.5x4 TR4046 2.5x30 Rear suspension TR4058 M3x10 Screw ……………2...
  • Page 17 All manuals and user guides at all-guides.com Rear suspension T04014 4.8mm Ball End-Long ……4 TS4035 3x56 Turnbuckle …………2 Rear upper Rod 32.5mm T04014 T04014 TS4035 3x56 Projection.Note direction Rear suspension TS4026 Swaybay ball end TS4026 M3x10 Screw TS4026 ………………2 Swaybay ball TS4026 M3x10 TS4026 Swaybar ball TS4026...
  • Page 18 All manuals and user guides at all-guides.com Rear suspension TS4026 M3x3 Screw TS4018 Rear bumper stick-below ……………………2 T08795 M3x18 TS4025 M2x6 Screw ………………2 TS4026 Screw T08795 M3x18 Screw M3x3 Cement ……2 TS4025 M2x6 TS4025 Swaybar mount TS4041 1.8 Swaybar Rear suspension TR4059 M3x12 TS4018 TR4059...
  • Page 19 All manuals and user guides at all-guides.com Shock Absorber TU0250-7 Front Shock Piston-Black TU0250-8 Rear Shock Piston-White TU0250-8 1mm Washer-Black TU0250-8 2.8x1.9 O-ring TU0250-8 2.5mm Washer-White TU0266-3/TU0266-4 Front For Short TU0250-8 Rear For Long 2.8x1.9 O-ring TU0266-1/TU0266-2 TU0250-8 2.3 E-ring 1mm Washer-White TU0250-8 9x1 O-ring...
  • Page 20 All manuals and user guides at all-guides.com Shock Absorber TU0250-8 14x1.5 O-ring TU0266-3/TU0266-4 Spring Adjuster TS406-2F Front Spring-Medium TS406-2R Front For Short Rear Spring-Medium TU0266-3/TU0266-4 Rear For Long Shock Top Cover Front For Short Rear For Long TU0250-8 14x1.5 O-ring TU0250-5 Below Spring mount end Front Shock Absorber...
  • Page 21 All manuals and user guides at all-guides.com Rear Shock Absorber TS4046 M3x25 TU0250-6 3.1x5.5x2 Aluminium Washer T02084 M3 TU0250-6 Shock cap ball TS4045 M3x12 Screw Versa tooth TS4045 M3x12 Screw-Versa tooth TR4059 M3x12 Screw ……1 …………1 T02084 M3 Nylon Nut TS4046 M3x25 Screw ………………2 ………2...
  • Page 22 All manuals and user guides at all-guides.com Rear bumper set TR4059 M3x10 TR4059 M3x14 TR4059 M3x10 Screw ……………2 TR4059 M3x14 Screw …………2 Body mount TS4019 Body washer TS4019 Mid clip TR4059 M3x12 TS4019 Body mount TR4059 M3x12 TS4019 Mid clip …………4 TR4059 M3x12 Screw …………4...
  • Page 23 All manuals and user guides at all-guides.com Body support / Battery holder TR4019 Battery holder TR4059 M3x10 TR4019 TS4016 Battery holder Body support-R TR4059 M3x10 TR4059 M3x10 TR4059 M3x10 TR4058 M3x10 Screw ……………4 TS4016 Body support-L TR4059 M3x10 Screw TR4058 ……………4 TR4058 M3x10...
  • Page 24 All manuals and user guides at all-guides.com Tyre TS2028 TS2029 Tyre Sponge TS2029 Tyre Tyre HLM4FS M4 locknut with flange ………………4 HLM4FS M4 Assemble as many times as specified Must be purchased separately Assemble both Left and Right...
  • Page 25 All manuals and user guides at all-guides.com Body 11mm 11mm TS4024 Body-Lexan Body TS4024 Mask sticker Mask the windows from the inside. Paint the body shell from the inside using spray colors.
  • Page 26 All manuals and user guides at all-guides.com Body < R > TS4024 M3x8 Screw TS4024 M3 …………8 TS4024 M3 Nylon Nut < L > TS4024 M3x8 ………………8 Body H135B Mid clip ……………4 H135B Mid clip H135B Body pin holder Assemble as many times as specified Assemble Both Left And Right...
  • Page 27 All manuals and user guides at all-guides.com...
  • Page 28 All manuals and user guides at all-guides.com Parts list for TS4-TE 1/10 4WD Short-Course-1 TU0250-6 TU0250-5 TU0250-8 TS4046 2.8x1.9 O-Ring 1mm Washer-White 8pcs 8pcs 4pcs 3.1x5.5x2.0 Aluminium Washer 9x1 O-Ring 1mm Washer-Black 4pcs 4pcs 4pcs M3x25 Button head hex screw...
  • Page 29 All manuals and user guides at all-guides.com Parts list for TS4-TE 1/10 4WD Short-Course-2 TS4026 TS4027 TS4029 TS4030 TS4031 2pcs 2pcs 2pcs 2pcs 2pcs 4pcs 4pcs 78mm rear CVD 83mm front CVD 4pcs 2pcs 2pcs Motor mount Swaybar ball set...
  • Page 30 All manuals and user guides at all-guides.com Parts list for TS4-TE 1/10 4WD Short-Course-3 TR4006 TR4007 TR4004 TR4002 TR4003 Left - 1pcs Right - 1pcs Left - 1pcs Right - 1pcs 1pcs Front 1pcs 1pcs 1pcs Rear 1pcs 1pcs Steering Block...
  • Page 31 All manuals and user guides at all-guides.com Parts list for TS4-TE 1/10 4WD Short-Course-4 TS406-1F TS406-1R TU0423 TU0430 TC1002 8pcs Front Spring-Soft Rear Spring-Soft Rear Arm Mount-Ball Dust proof cover-Lexan Short Course Racing Tyre - Soft 2pcs 2pcs 1pcs TS406-3F...
  • Page 32 All manuals and user guides at all-guides.com TS4-TE Driver Track / City Event Date SETUP SHEET for the TeamC TS4-TE Conditions Smooth Bumpy Low traction Med traction High traction Sandy Soft dirt Grass Hard soil Clay Dusty Other Front Suspension Front Shocks Shock Mounting&Camber link...
  • Page 33 All manuals and user guides at all-guides.com...
