INSTALLATION

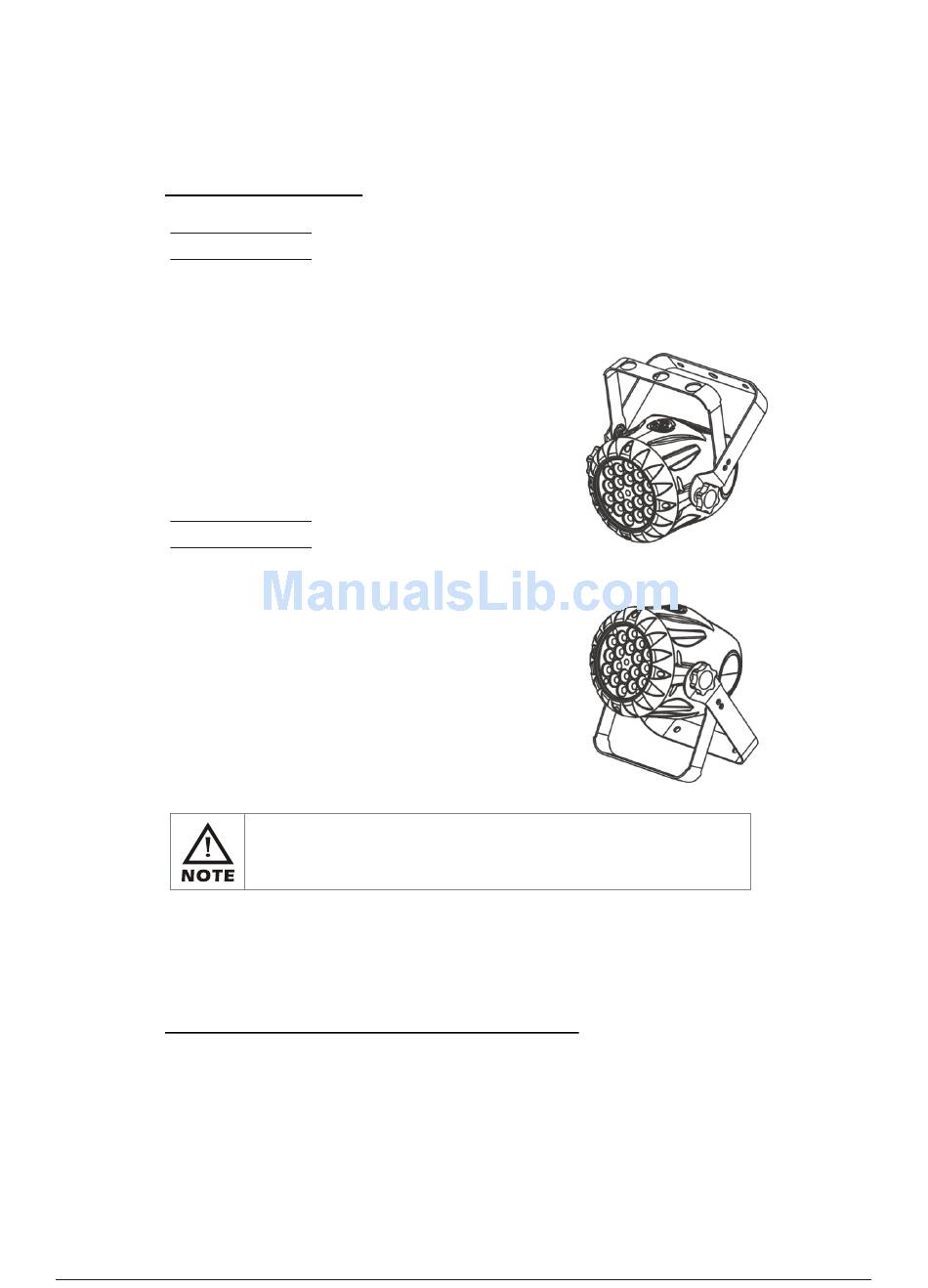

2.1 MOUNTING
HANGING
The LED PAR can be mounted in a hanging position using the supporting bracket.
The bracket should be secured to the mounting truss or structure using a
standard mounting clamp. Please note that when hanging the unit a safety cable
should also be used.
UPRIGHT
The LED PAR can be mounted in an upright or
sitting position using the supporting brackets.
2.2

POWER CONNECTIONS

@ 220V: 40 units may be connected in series
@120V: 20 units may be connected in series
Note: As this fixture's DMX signal cable connection had been changed to Parallel connection,
so if over 30 units to be connected, then a DMX signal amplifier is needed.
2 INSTALLATION
The LED MODULE can be mounted at any angle and in any
position. It is possible to further adjust the angle of the LED
MODULE using the two adjustment knobs located on the side of
the fixture.
