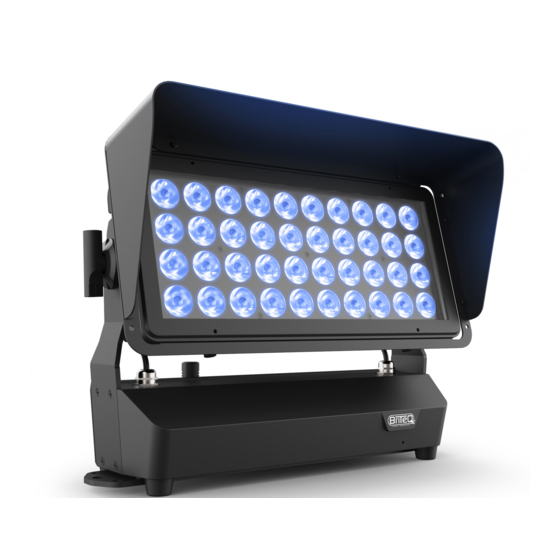

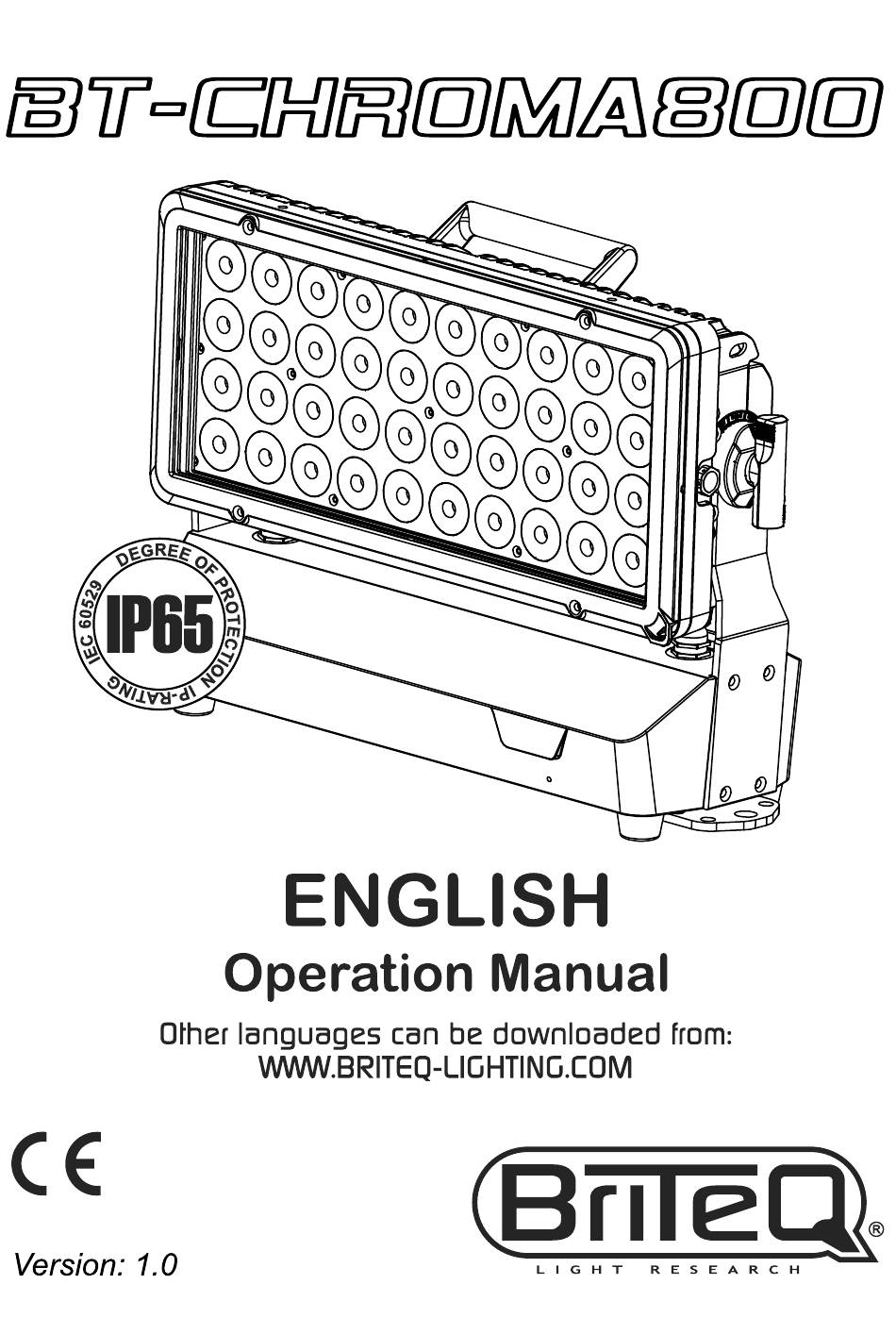

Summary of Contents for Briteq BT-CHROMA 800

  • Page 3: Before Use

    • RENTAL / ENTERTAINMENT applications: standard equipped with 3pin XLR and lockable IP65- Power connector in/outputs for easy daisy chaining. • FIXED installations: with an optional set called “BT-CHROMA 800 - FIX install set” (POWER & DMX in/output modules with stainless-steel cable glands + 2 stainless-steel bolts for fixed TILT-positioning) the projector can very easily be transformed for permanent outdoor installation.
  • Page 4: Safety Instructions

    • Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/18 BT-CHROMA800 ®...
  • Page 5 12. SAFETY HOLE: used to attach a safety cable when the unit is rigged, see paragraph “overhead rigging”. 13. FILTERFRAME SAFETY CABLE: A small safety cable is included to secure the filter frame when it is used with the magnetic holders. BRITEQ 3/18 BT-CHROMA800...
  • Page 6: Overhead Rigging

    • RGBL 5px 8bit 4 colors set in 8bit resolution + 5-pixel control • RGBL 10px 8bit 4 colors set in 8bit resolution + 10-pixel control • RGBL 10px 16bit 4 colors set in 16bit resolution + 10-pixel control BRITEQ 4/18 BT-CHROMA800 ®...
  • Page 7 W-DMX ON/OFF Used to switch the internal wireless DMX receiver on/off. • Press the ▼/▲ buttons to browse the menu until the required function shows up. • Use ▼/▲ buttons to toggle between ON & OFF. BRITEQ 5/18 BT-CHROMA800 ®...
  • Page 8: Functions Menu

    • Press the ▼/▲ buttons to browse the menu until the required function shows up. • Press the ENTER button: the values can be changed • Use ▼/▲ buttons to select the desired mode: • Once the correct option shows on the display, press the ENTER button to save it. BRITEQ 6/18 BT-CHROMA800 ®...
  • Page 9 • Once the desired value shows on the display, press the ENTER button to confirm. Remark: the program speed depends on the amount of Afterglow: reduce the afterglow value if the program speed is not high enough. BRITEQ 7/18 BT-CHROMA800...
  • Page 10 • Use ▼/▲ buttons to select YES / NO • Press the ENTER button to confirm. • SAVE was selected: the current settings of the setup menu are saved to memory. • LOAD was selected: the previously saved settings are loaded. BRITEQ 8/18 BT-CHROMA800 ®...
  • Page 11: Information Menu

    • Press the ▼/▲ buttons to browse the firmware versions of the other processors. Note: The firmware of this unit can be upgraded using our special “Firmware Updater 2+” (separately available from Briteq). More information about this can be found in the user manual of the firmware updater or our website: https://briteq-lighting.com/firmware-updater-2-plus...
  • Page 12: Hidden Menu

    Optional DMX and POWER in/output modules are available with stainless-steel cable glands for fixed installation: can be purchased separately as “BT-CHROMA 800 - FIX install set” The set consists of 2 modules that can be easily installed instead of the standard connectors and 2 stainless- steel hex socket bolts to secure the TILT-mechanism in the right position.
  • Page 13 • Color Effects: select one of the colors, make a customs color or chose a color fade with the desired speed. • Master Dimmer: set the desired level for the light output Note: No DMX-controller should be connected, otherwise the DMX-signal will have priority. BRITEQ 11/18 BT-CHROMA800 ®...
  • Page 14 C. Before you can pair the projector with a new W-DMX transmitter, the current connection (if any) should be removed (unlinked) first → see setup menu, DMX functions, W-DMX Unlink D. On the external DMX-transmitter: press the pair / link button → the projector should now pair automatically to the W-DMX transmitter. BRITEQ 12/18 BT-CHROMA800 ®...
  • Page 15: Dmx Charts

    38 75 PIXEL 10 - GREEN 76 PIXEL 10 - GREEN FINE 39 77 PIXEL 10 - BLUE 78 PIXEL 10 - BLUE FINE 40 79 PIXEL 10 - LIME 80 PIXEL 10 - LIME FINE 21 41 81 FUNCTION CHANNEL BRITEQ 13/18 BT-CHROMA800 ®...
  • Page 16 4000K (neutral white) 017-022 5600K (daylight) 023-028 Orange 029-034 Yellow 035-040 Cyan 041-046 Purple Red/Blue switching (slow → 047-082 fast) Red/Green switching (slow → 083-118 fast) Blue/Green switching (slow → 119-154 fast) 155-255 COLORFADE (very slow → fast) BRITEQ 14/18 BT-CHROMA800 ®...
  • Page 17 PIXEL 10 - BLUE 000-255 PIXEL 10 - BLUE FINE 40 79 000-255 PIXEL 10 - LIME 000-255 PIXEL 10 - LIME FINE FUNCTION CHANNEL 21 41 81 000-007 No function 008-108 DIMMER SPEED (fast → slow) BRITEQ 15/18 BT-CHROMA800 ®...
  • Page 18: Maintenance

    • The DMX-controller asks each RDM device for some basic data so it knows which devices are connected. The projector will respond: • Device name: the actual name of the unit • Manufacturer: ® Briteq • Category: LED Dimmer • Firmware: x.x.x.x (firmware version of the projector) • DMX address: xxx (current DMX start address of the projector) •...
  • Page 19: Specifications

    Lamp type 40pcs 20W RGBL led Beam angle 15° + included 30° frost filter LED refresh rate 3,6 kHz Enclosure temperature (T : 40°C) Surface: 65°C max. Dimensions LxWxH (mm) 450x152x312 (see drawing) Weight (kg) 12,3 BRITEQ 17/18 BT-CHROMA800 ®...
  • Page 20 (order code: B05553) 1°x40° beam shaper (without frame) BT-CHROMA 800 - 60° beam (order code: B05554) 60°x60° beam shaper (without frame) The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 18/18 BT-CHROMA800...
