Page 1: Table Of Contents

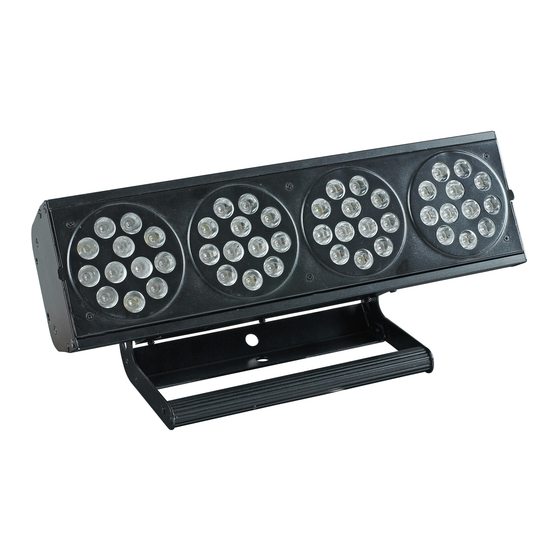

TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 3. How To Set The Unit 4. How To Control The Unit 5. Troubleshooting 6. Fixture Cleaning STAGE COLOR 48 Preliminary User Guide Official version will follow soon on: WWW.BRITEQ-LIGHTING .COM... -
Page 2: Safety Instruction
The housing, the lenses must be replaced if they are visibly damaged. 1. Safety Instruction Please read carefully the instruction, which includes important Caution information about the installation, usage and maintenance. There are no user serviceable parts inside the unit. Do not open the housing or attempt WARNING any repairs yourself. -
Page 3: How To Set The Unit
3. How To Set The Unit 3.2 Main Function To select any of the given functions, press the MENU button up to when the required one is 3.1 Control Panel showing on the display. Select the function by ENTER button and the display will blink. Use DOWN and UP button to change the mode. - Page 4 change press the MENU button or wait for 8 seconds. Black Out Show Mode Press the MENU button up to when the Black Out is showing on the display. Pressing Press the MENU button up to when the Show Mode is showing on the display. Press ENTER button and the display will blink.
-
Page 5: How To Control The Unit
higher than 75 ）or High Speed, press ENTER button to store. To go back to the functions 4.2 Easy Controller press the MENU button. The easy remote control is used only in master/slave mode. By connecting Fixture Temp to the 1/4” microphone jack of the first unit, you will find that the remote Press the MENU button up to when the Fixture Temp is blinking on the display. - Page 6 4.4 DMX 512 Configuration...
- Page 7 4.5 DMX512 Connection 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.
-
Page 8: Troubleshooting
5. Troubleshooting 6. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
