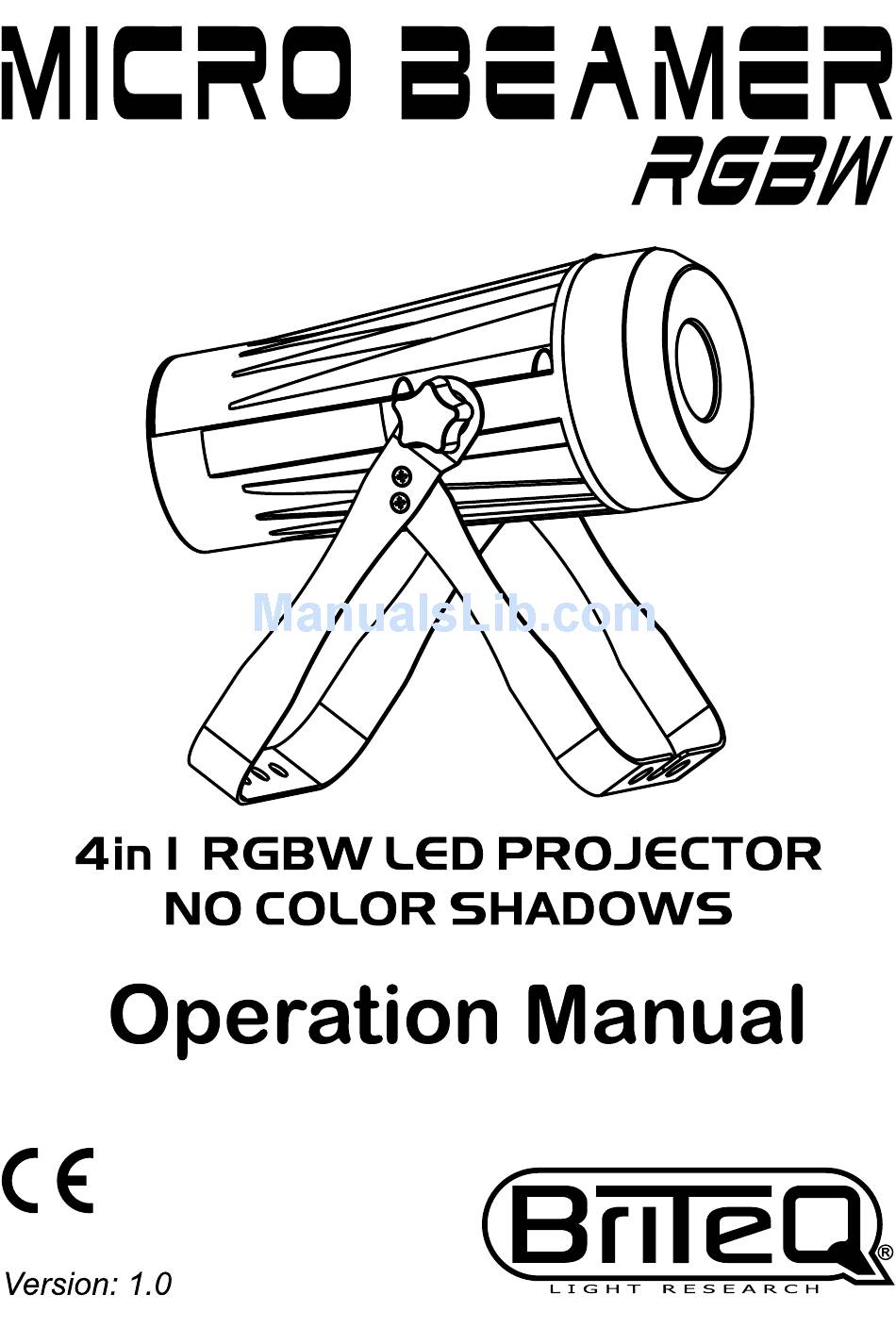

Briteq MICRO BEAMER RGBW Operation Manual

4in1 rgbw led projector no color shadows
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MICRO BEAMER RGBW and is the answer not in the manual?

Questions and answers

Related Manuals for Briteq MICRO BEAMER RGBW

Summary of Contents for Briteq MICRO BEAMER RGBW

  • Page 3: Table Of Contents

    ABLE OF CONTENTS PART 1 PRODUCT (GENERAL)............1. 1.1 TECHNICAL SPECIFICATIONS .............1. 1.2 SAFETY WARNING ..............2. PART 2 INSTALLATION...............3. 2.1--MOUNTING...................3. 2.2--SIGNAL CONNECTIONS...............3. 2.3--SETTING UP WITH A DMX512 CONTROLLER(STAGE 1 MODE) ..4. PART 3 DISPLAY PANEL OPERATION.........5. 3.1--BASIC..................5. 3.2--MENU..................5. 3.3--EDIT STATIC COLOUR..............

  • Page 4: Part 1 Product (General)

    PRODUCT (GENERAL) TECHNICAL SPECIFICATIONS LED MODULE LED MODULE: Voltage 100~240V, 50/60Hz Rated Power Model 12W LED(1xtri-RGBW) Environment Temperature -20℃~40℃ Cooling Direct air convection Dimensions 212 x 120 x 80mm Weight 1.01Kg 212mm 120mm ·1·...

  • Page 5: Safety Warning

    SAFETY WARNING IMPORTANT 【ALWAYS READ THE USER MANUAL BEFORE OPERATION. 】 【PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA.】 ● This product must be installed by a qualified professional. ●...

  • Page 6: Part 2 Installation

    2 INSTALLATION MOUNTING UPRIGHT The LED Fixture can be mounted in a sitting or wall mounted position using the supporting brackets. The LED Fixture should be placed on a non- flammable flat surface in any orientation and fixed by screws. There are four holes into the supporting bracket.

  • Page 7: Setting Up With A Dmx512 Controller(Stage 1 Mode)

    SETTING UP WITH A DMX512 CONTROLLER(STAGE 1 MODE) ● Connect the DMX512 controller to the units in series. ● Each unit has 9 DMX channels so the DMX Addresses should increase by increments of 9 (e.g. 1,10,19,28...) ● Each DMX Address may be used as many times as required. ●...

  • Page 8: Part 3 Display Panel Operation

    DISPLAY PANEL OPERATION BASIC Choose one or retum to the previous menu ENTER scroll 'UP' through the menu list or increase the value of the current function scroll 'DOWN' through the menu list or decrease the value of the current function ENTER DOWN MENU...

  • Page 9: Edit Static Colour

    Y.01 (0~255) (0~255) Y.02 (0~255) (0~255) Y.11 (0~255) (0~255) (0~255) (0~255) EDIT STATIC COLOUR ENTER (0~255) (0~255) (0~255) (0~255) (0~20) 【STATIC COLOUR】 ● Combine 【Red】, 【Green】, 【Blue】 and 【White】 to create an infinite range of colors (0-255) ● Set the value of the 【Strobe】 (0-20Hz) ACTIVATING AUTO PROGRAMS ENTER A.01...

  • Page 10: Dmx512 Settings

    DMX512 SETTINGS ENTER (001~512) 【DMX】 ● Enter the【DMX】mode to set the DMX ADD. PERSONALITY ENTER A1.D A2.D A2.S 【PERSONALITY】 ● Enter the【PERSONALITY】mode to select DMX mode:【TOUR】,【A1】, 【A1.D】,【A.2】,【A2.D】,【A2.S】,【HSU】. 3.8 SPECIAL SETTINGS ENTER 【SETTING】 ● Select【UPLD】to upload the custom programs from the current MASTER unit to the SLAVE units.

  • Page 11: Activate The Password

    ACTIVATE THE PASSWORD ENTER 【LOC】 ● Enter the【LOC】mode to select whether the access password is on or off. ● When the fixture is set as PASS 【ON】, after 30 seconds or turn on the fixture next time, the fixture will need an access password to enter the display menu control.

  • Page 12: Basic Addressing

    4 CONTROL WITH A DMX512 CONTROLLER BASIC ADDRESSING ● Connect all of the units in series using standard DMX512 signal cable. ● Set the DMX512 address in the DIP switch PCB. ● It is possible to have the same DMX address or independent addresses for each fixture. CHANNEL ASSIGNMENT Note: This product has three DMX512 channel configurations: 【STAGE1】...
  • Page 13 CHANNEL VALUE FUNCTION WHITE 5: 5600K WHITE 6: 5900K WHITE 7: 6500K WHITE 8: 7200K WHITE 9: 8000K WHITE 10: 8500K WHITE 11: 10000K STROBE NO FUNCTION FROM SLOW TO FAST AUTO NO FUNCTION AUTO1 AUTO2 AUTO3 AUTO4 AUTO5 AUTO6 AUTO7 AUTO8 AUTO9...
  • Page 14 Arc.1 CHANNEL VALUE FUNCTION GREEN BLUE Ar1.d CHANNEL VALUE FUNCTION MASTER DIMMER GREEN BLUE Arc.2 CHANNEL VALUE FUNCTION GREEN BLUE WHITE ·11·...
  • Page 15 Ar2.d CHANNEL VALUE FUNCTION MASTER DIMMER GREEN BLUE WHITE Ar2.s CHANNEL VALUE FUNCTION MASTER DIMMER GREEN BLUE WHITE STROBE CHANNEL VALUE FUNCTION HUE(0~100%) SATURATION(0~100%) VALUE(0~100%) ·12·...

  • Page 16: Part 5 Appendix

    APPENDIX MAINTENANCE ITEM Head cover Abrazine slice Lens frame2 Lens Lens frame1 LED board Thermal protection device Screw Head casing main section1 Bracket 1 Bracket 2 Display PCB Control board Prive PCB Heat sink Display glass Isolator sheet Power supply Head casing main section2 ·13·...
