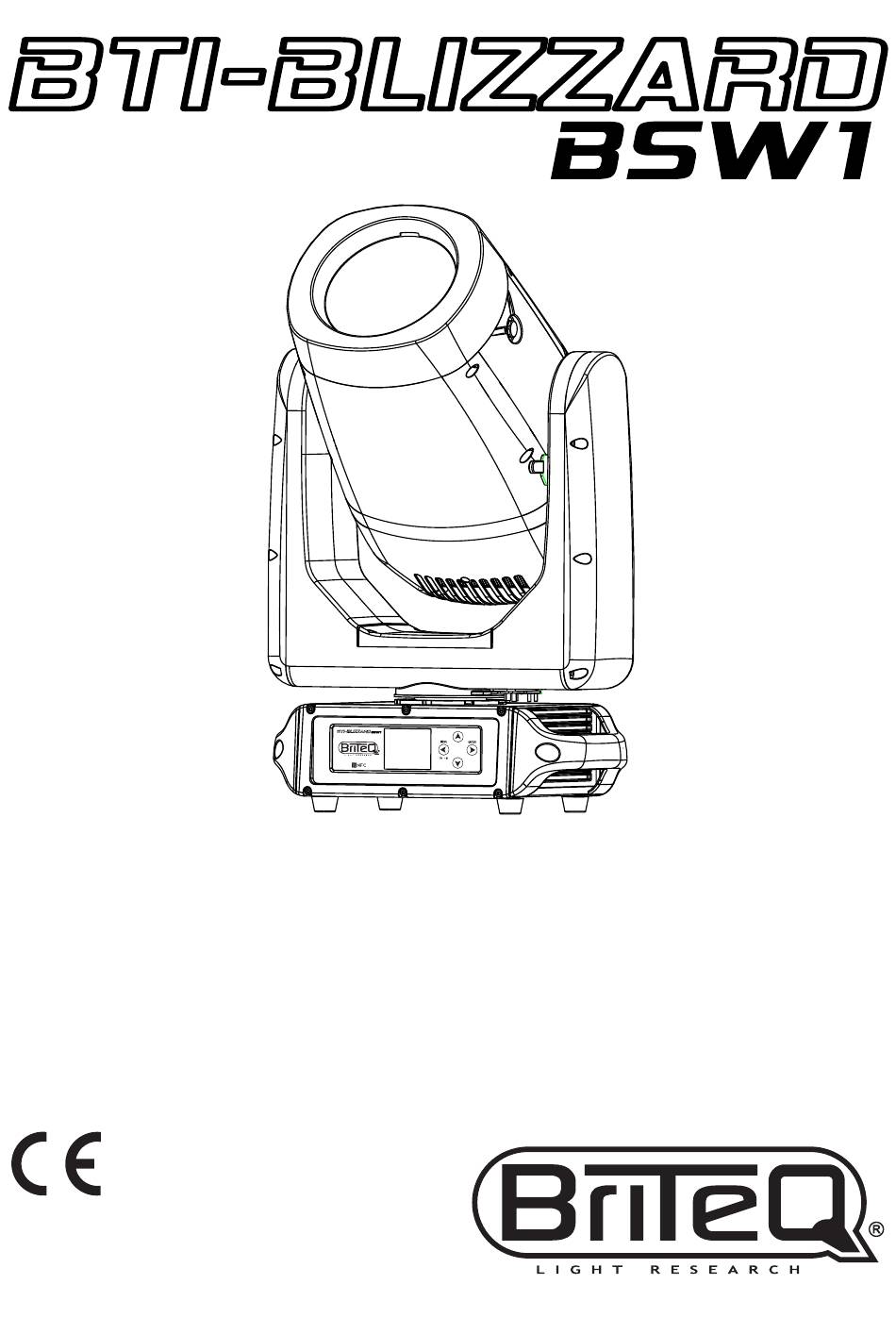

- Page 1 ENGLISH Operation Manual Other languages can be downloaded from: WWW.BRITEQ-LIGHTING.COM Version: 1.0...
-
Page 3: Before Use
FEATURES • BTI-BLIZZARD BSW1 is a powerful compact HYBRID moving head, based on a 350W white LED module. • IP65 protection and low noise operation: perfect for both outdoor and indoor use! •... -
Page 4: Safety Instructions
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/17 BTI-BLIZZARD BSW1 ®... -
Page 5: Rear Panel
• Fix the optional Truss hooks to the omega brackets with screw and locking nut. • Fasten the omega brackets on the bottom of the base by inserting quick-lock fasteners into the holes of the base and tighten fully clockwise. (you should hear or feel a ‘click’) BRITEQ 3/17 BTI-BLIZZARD BSW1 ®... -
Page 6: Electrical Installation
• Each unit in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. In the next section you will learn how to set the DMX addresses. Wiring of the DMX connectors: BRITEQ 4/17 BTI-BLIZZARD BSW1 ®... - Page 7 **** CLEAN EDIT1 **** SETTING CLEAN EDIT2 **** WDMX HIDE YES/NO PT SENSORS WDMX PAIRING RESET ONLY XLRDMX XLRDMX FIRST SIGNAL ONLY WDMX Only XLRDMX WDMX FIRST WDMX TO XLRDMX EDIT EDIT 1-2 STEP(01-30) TILT BRITEQ 5/17 BTI-BLIZZARD BSW1 ®...
- Page 8 ALL RESET MANUAL PT RESET RESET COLOR SYSTEM GOBO SYSTEM OTHER FIXTURE HOURS LED USE HOURS TEMPERATURE INFO FIRMWARE VER. 0x21220056xxxx LABEL BTI-BLIZZARD BSW1 SYSTEM ERROR ±127 TILT ±127 CMY-C ±127 CMY-M ±127 CMY-Y ±127 COLOR ±127 ROTA. GOBO ±127...
- Page 9 • Press the ▲/▼ buttons to select OPTION and hit the ENTER button to select • Press the ▲/▼ buttons to select the SUN PROTECTION option and hit the ENTER button to select. • Use the ▲/▼ buttons to select OFF/ON Press the ENTER button to confirm. BRITEQ 7/17 BTI-BLIZZARD BSW1 ®...
- Page 10 • Press the ▲/▼ buttons to select the LOAD PARA option and hit the ENTER button to select. • Use the ▲/▼ buttons to select ON: Download data off the DMX line OFF: Share data on the DMX line • Press the ENTER button to confirm. BRITEQ 8/17 BTI-BLIZZARD BSW1 ®...
- Page 11 • Press the ENTER button to set the values for step 1 Tilt …: Set the desired value for the channel Time: duration of the step between 0-25s Use: Activate/Disable step • Press the ENTER button to confirm. • Continue for step 2-30 BRITEQ 9/17 BTI-BLIZZARD BSW1 ®...
- Page 12 Displays the RDM information of the fixture RDM UID: 0x21220056**** (**** = unique number) RDM Label: BTI-BLIZZARD BSW1 SYSTEM ERROR Displays possible system errors SERVICE Used to calibrate the base pan/tilt position • Press the ENTER button to open the menu. (Enter the password if prompted) •...
- Page 13 2. When the bottom is removed you see the empty battery slot at the display side 3. Insert the battery (model: 18650 * 3,7V Li-ion) in the battery slot. Pay attention to the correct direction and polarity. 4. Put the bottom plate back and fix screw the hex screws tightly. BRITEQ 11/17 BTI-BLIZZARD BSW1 ®...
-
Page 14: Dmx Channels
167-185 Cyan 0% Magenta 100% Yellow > 186-204 Cyan 0% Magenta < Yellow 100% 205-223 Cyan > Magenta 0% Yellow 100% 224-242 Cyan 100% Magenta 0% Yellow < 243-255 Cyan 100% Magenta > Yellow 0% BRITEQ 12/17 BTI-BLIZZARD BSW1 ®... - Page 15 Shake gobo 1 064-068 Shake gobo 2 069-073 Shake gobo 3 074-078 Shake gobo 4 079-083 Shake gobo 5 084-088 Shake gobo 6 089-093 Shake gobo 7 094-098 Shake gobo 8 099-103 Shake gobo 9 BRITEQ 13/17 BTI-BLIZZARD BSW1 ®...
- Page 16 25000Hz (hold for 3s) 201-210 Reset all (hold for 3s) 211-220 P/T reset (hold for 3s) 221-230 Color rest (hold for 3s) 231-240 Zoom reset (hold for 3s) 241-250 Gobo reset (hold for 3s) 251-255 No function BRITEQ 14/17 BTI-BLIZZARD BSW1 ®...
-
Page 17: Maintenance
DMX connections: 3+5pin XLR IN/OUT, RDM compatible, (W-DMX optional) Movement: Pan: 540° Tilt: 210° Beam angle: 2°→ 35° DMX channels used: 21, 25 and 28 Channels Lamp: 350W LED Size: See picture below Weight: 22 kg BRITEQ 15/17 BTI-BLIZZARD BSW1 ®... -
Page 18: Lux Chart
USER MANUAL V1.0 ENGLISH DIMENSIONS LUX CHART BRITEQ 16/17 BTI-BLIZZARD BSW1 ®... - Page 19 Max. thickness for glass gobos = 1.1mm • Max. image diameter = 11mm Static gobo wheel All the information is subject to change without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 17/17 BTI-BLIZZARD BSW1 ®...
-
Page 20: Mailing List
Suscríbete hoy a nuestra lista de correo para recibir las últimas noticias! Inscreva-se hoje na nossa mailing list para estar a par das últimas notícias! WWW.BRITEQ-LIGHTING.COM Copyright © 2024 by BEGLEC NV ‘t Hofveld 2C ~ B1702 Groot-Bijgaarden ~ Belgium...
