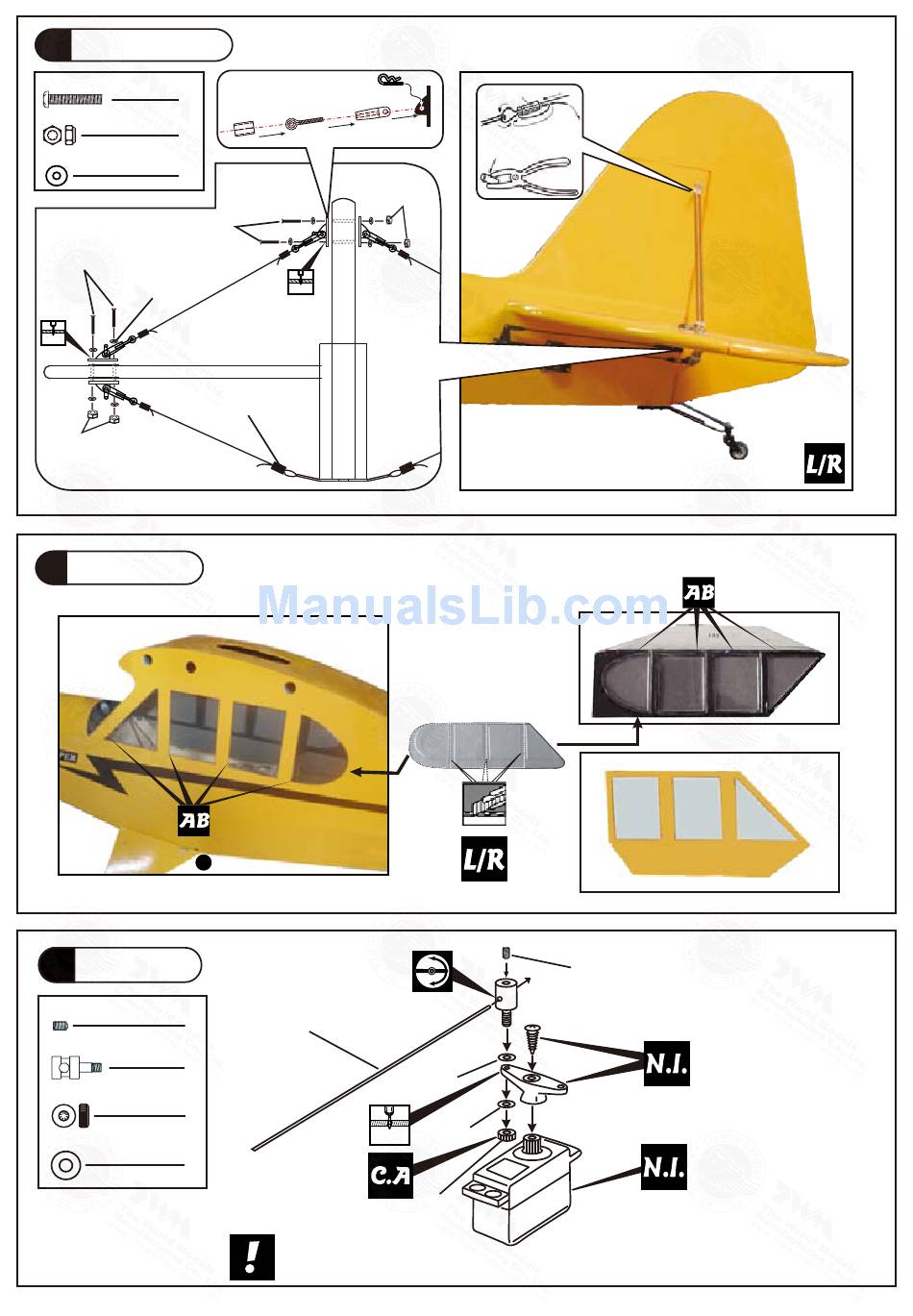

THE WORLD MODELS 1/3 PIPER J-3 CUB Instruction Manual page 9

Flying Wire
14
PM2x18mm Screw
12
M2 NYLON INSERT LOCK NUT
12
d2xD5mm Washer
24
PM2x18mm
PM2x18mm
d2xD5mm
Washer
3mm
d2.5xD3.2x8mm
M2 NYLON INSERT LOCK NUT
Windows
15
Window A
Securely glue the windows to the fuselage.
16
Servo Set
3x3mm Set Screw
1
Linkage Connector
1
M2 Nut
1
2mm Washer
2
A186RPO27761212
3mm
Completed
Throttle Pushwire
1.5mm
Please refer to the attached sheet for linkage connector installation.
Copper Tube
Press down the center
1/3 portion
M2
Window B
Washer
2mm
Washer
2mm
M2 Nut
P.8
COMPLETED
3mm
Throttle Servo.
