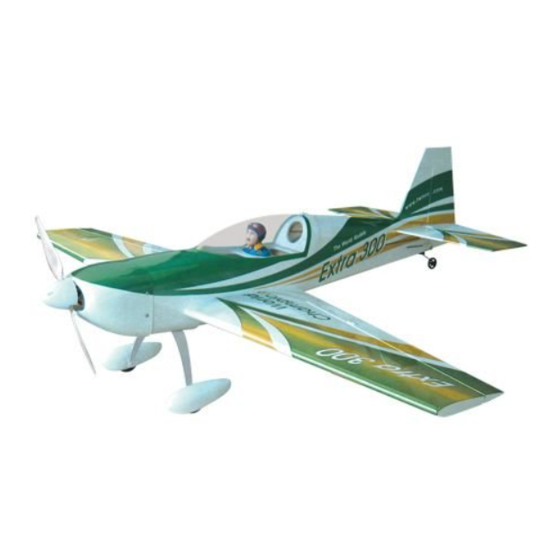

THE WORLD MODELS Extra 300 EP Instruction Manual

THE WORLD MODELS Extra 300 EP Instruction Manual

Hide thumbs Also See for Extra 300 EP:

Advertisement

Quick Links

Requires : 4-channel radio w/ 4 micro servos,
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
E252XMPO26401107
Outrunner Motor w/ Propeller Adaptor
20A Brushless ESC, 3 cells 11.1V
2100mAh Li - Po battery & charger.
Wing Span
Wing Area
Flying Weight
Fuselage Length
*Specifications are subject to change without notice.*
Specifications
40.5 in / 1030 mm
288 sq in / 18.6 sq dm
26.5 oz / 750 g
34.5 in / 880 mm
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extra 300 EP and is the answer not in the manual?

Questions and answers

Summary of Contents for THE WORLD MODELS Extra 300 EP

  • Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. FACTORY PRE-FABRICATED The World Models ALMOST-READY-TO-FLY (ARF) SERIES Manufacturing Co., LTD. MADE IN CHINA www.theworldmodels.com...
  • Page 2: Before You Begin

    INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.10 SAFETY PRECAUTIONS P.10 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
  • Page 3: Parts List

    Parts List 1. MAIN WING -- 1 pair 9. MAIN LANDING GEAR -- 1 set MAIN WHEEL Ø40mm -- 2 pcs 2. SCREW PB2x14mm -- 4 pcs WHEEL PANTS -- 1 pair SCREW PA1.7x8mm -- 8 pcs SCREW PA2.6x10mm -- 3 pcs STRAPER PL4112106 -- 2 pcs SCREW PM3x25mm -- 2 pcs FUEL TUBE d2xD4x4mm -- 4 pcs...
  • Page 4: Aileron Servo

    Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servo PA1.7x8mm Fuel Tube Straper d2xD4x4mm PB2x14mm Screw PA1.7x8mm Screw TWM PL8210010 CLEVIS WRENCH Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces.
  • Page 5: Stabilizer & Elevator

    Stabilizer & Elevator Temporary install the main wing, adjust (Stabilizer) Apply instant type CA glue leveling of the stabilizer to make it as to both sides of each hinge. (Main Wing) parallel to the main wing as possible. *Also refer to step 13 Wing Setting Vertical Fin &...
  • Page 6: Tail Landing Gear

    Tail Landing Gear PA2x8mm Screw PA2x8mm PM2x8mm Screw 1.5mm M2 Nut 1.5mm Plastic Collar M2 Nut PM2x8mm Bottom View Ø1mm pilot holes for World Models horn are pre-drilled. Elevator Pushrod Please look for pin-hole marks at under side of control surfaces. PB2x10mm Screw 40mm TWM PL8210010...
  • Page 7: Main Landing Gear

    Outrunner Motor / Cowling Optional Parts PM3x6mm Screw PWA2x8mm Screw Outrunner Motor 28/ 30 KM0283010 PM2x12mm Screw PA2.6x8mm Screw Make sure rotating Propeller Adaptor d3xD7mm Washer motor casing is not in (d3xD5) HW2340100 contact with wirings or anything. Don't over-tighten the PM3 screws, too much KP0011310 stress on the screws...
  • Page 8 Main Wing Bottom 1.5mm Eye Screw PA2.5x10x23mm Bottom View Wing Tube D9.6x240mm Aileron Servo Lead Rubber Band E252XMPO26401107...
  • Page 9: Radio Equipment

    Radio Equipment Install and arrange the servo as shown in the diagram. Front Straper Battery Tie Elevator Servo Elevator Servo Pushrod Connector Elevator Pushrod Ø1.4x52mm KA1.7x6mm J1(Pushrod Ø1.4x52mm) Fuel Tube Receiver Sponge d2xD4x4mm Battery Rudder Servo J2(Pushrod Ø1.4x375mm) Canopy PM2x8mm Screw d2xD5mm Washer M2 Nylon Insert Lock Nut Pilot...
  • Page 10 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C' E252XMPO26401107...
  • Page 11: Control Throws

    Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Rudder 30mm 30mm Elevator 20mm 20mm Aileron 10mm 10mm The ideal C.G. position is 63.5mm (2.5 in.) behind the leading edge C.G.
  • Page 12 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 13 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA. 1.
  • Page 14 Pl8210010 Large Clevis • Small Clevis • E252XMPO26401107...
  • Page 15 E252XMPO26401107...
  • Page 16 The World Models Manufacturing Co., LTD. www.theworldmodels.com E252XMPO26401107...
