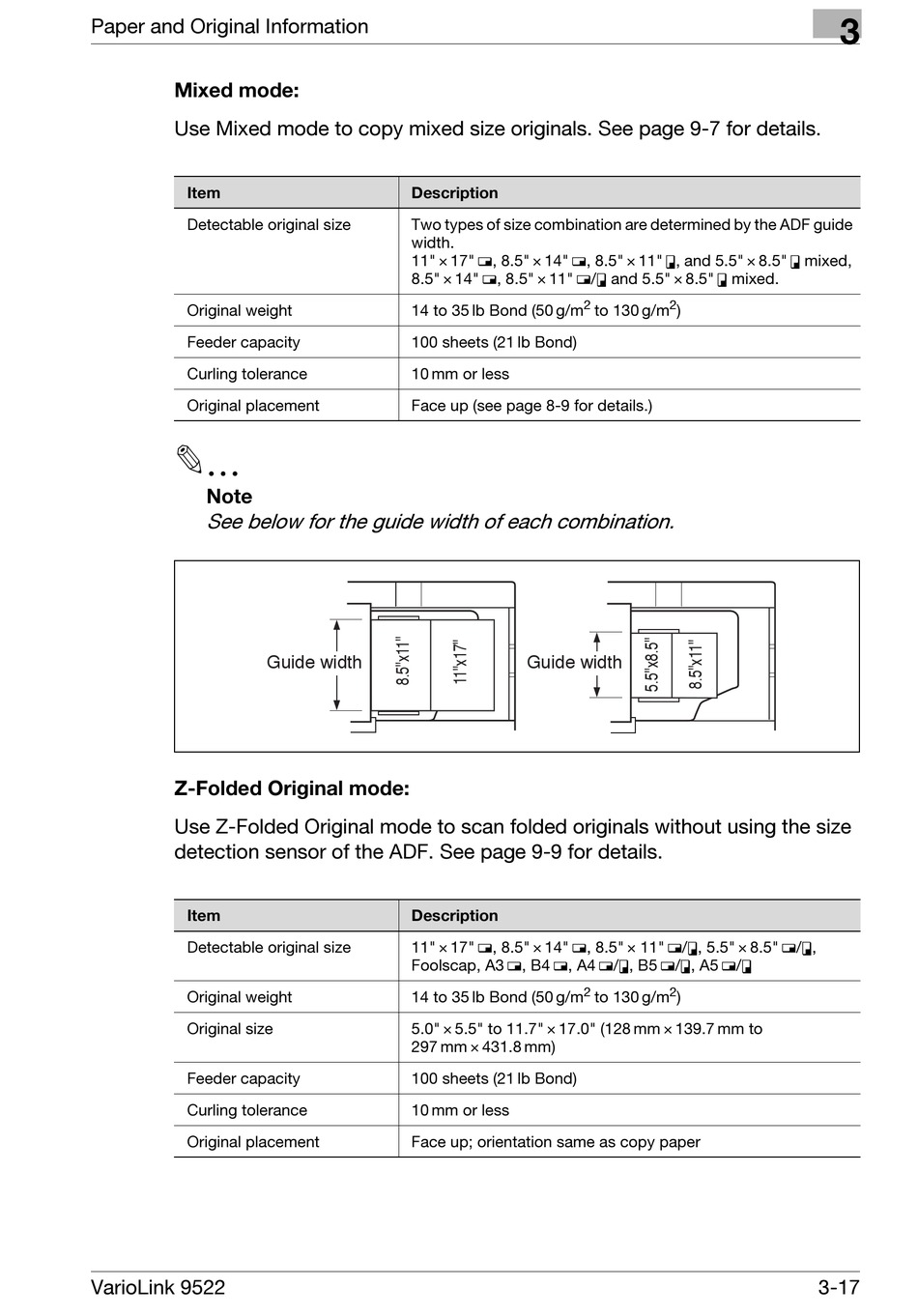

Oce variolink 9522 User Manual page 99

Paper and Original Information
Mixed mode:
Use Mixed mode to copy mixed size originals. See page 9-7 for details.
Item
Detectable original size
Original weight
Feeder capacity
Curling tolerance
Original placement
Note
See below for the guide width of each combination.
Z-Folded Original mode:
Use Z-Folded Original mode to scan folded originals without using the size
detection sensor of the ADF. See page 9-9 for details.
Item
Detectable original size
Original weight
Original size
Feeder capacity
Curling tolerance
Original placement
VarioLink 9522
Description
Two types of size combination are determined by the ADF guide
width.
11" × 17" w, 8.5" × 14" w, 8.5" × 11" v, and 5.5" × 8.5" v mixed,
8.5" × 14" w, 8.5" × 11" w/v and 5.5" × 8.5" v mixed.
14 to 35 lb Bond (50 g/m
100 sheets (21 lb Bond)
10 mm or less
Face up (see page 8-9 for details.)
Guide width
Description
11" × 17" w, 8.5" × 14" w, 8.5" × 11" w/v, 5.5" × 8.5" w/v,
Foolscap, A3 w, B4 w, A4 w/v, B5 w/v, A5 w/v
14 to 35 lb Bond (50 g/m
5.0" × 5.5" to 11.7" × 17.0" (128 mm × 139.7 mm to
297 mm × 431.8 mm)
100 sheets (21 lb Bond)
10 mm or less
Face up; orientation same as copy paper
2 2
to 130 g/m )
Guide width
2 2
to 130 g/m )
3
3-17
