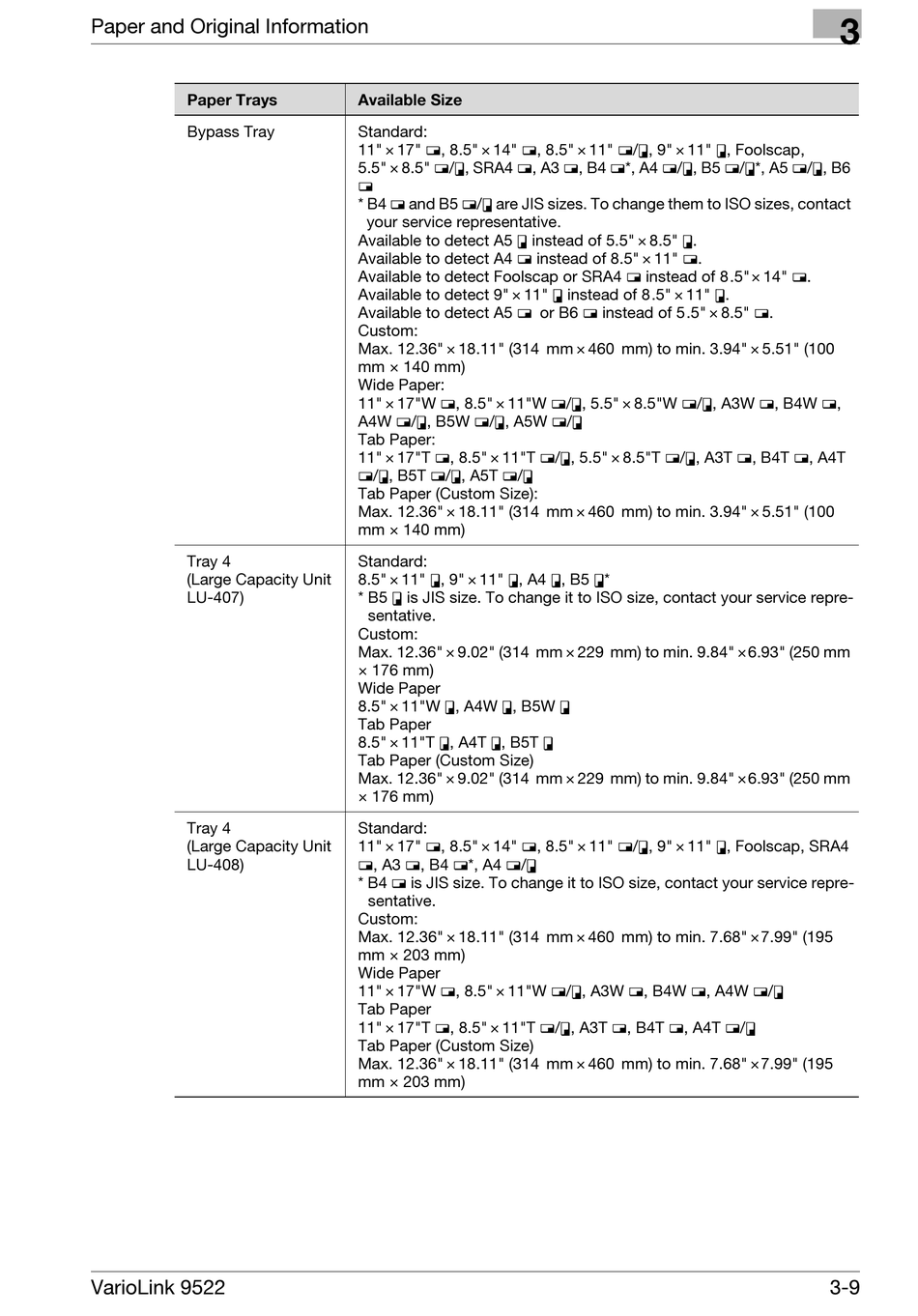

Oce variolink 9522 User Manual page 91

Paper and Original Information
Paper Trays
Bypass Tray
Tray 4
(Large Capacity Unit
LU-407)
Tray 4
(Large Capacity Unit
LU-408)
VarioLink 9522
Available Size
Standard:
11" × 17" w, 8.5" × 14" w, 8.5" × 11" w/v, 9" × 11" v, Foolscap,
5.5" × 8.5" w/v, SRA4 w, A3 w, B4 w*, A4 w/v, B5 w/v*, A5 w/v, B6
w
* B4 w and B5 w/v are JIS sizes. To change them to ISO sizes, contact
your service representative.
Available to detect A5 v instead of 5.5" × 8.5" v.
Available to detect A4 w instead of 8.5" × 11" w.
Available to detect Foolscap or SRA4 w instead of 8.5"× 14" w.
Available to detect 9" × 11" v instead of 8.5" × 11" v.
Available to detect A5 w or B6 w instead of 5.5" × 8.5" w.
Custom:
Max. 12.36" × 18.11" (314 mm × 460 mm) to min. 3.94" × 5.51" (100
mm × 140 mm)
Wide Paper:
11" × 17"W w, 8.5" × 11"W w/v, 5.5" × 8.5"W w/v, A3W w, B4W w,
A4W w/v, B5W w/v, A5W w/v
Tab Paper:
11" × 17"T w, 8.5" × 11"T w/v, 5.5" × 8.5"T w/v, A3T w, B4T w, A4T
w/v, B5T w/v, A5T w/v
Tab Paper (Custom Size):
Max. 12.36" × 18.11" (314 mm × 460 mm) to min. 3.94" × 5.51" (100
mm × 140 mm)
Standard:
8.5" × 11" v, 9" × 11" v, A4 v, B5 v*
* B5 v is JIS size. To change it to ISO size, contact your service repre-
sentative.
Custom:
Max. 12.36" × 9.02" (314 mm × 229 mm) to min. 9.84" ×6.93" (250 mm
× 176 mm)
Wide Paper
8.5" × 11"W v, A4W v, B5W v
Tab Paper
8.5" × 11"T v, A4T v, B5T v
Tab Paper (Custom Size)
Max. 12.36" × 9.02" (314 mm × 229 mm) to min. 9.84" ×6.93" (250 mm
× 176 mm)
Standard:
11" × 17" w, 8.5" × 14" w, 8.5" × 11" w/v, 9" × 11" v, Foolscap, SRA4
w, A3 w, B4 w*, A4 w/v
* B4 w is JIS size. To change it to ISO size, contact your service repre-
sentative.
Custom:
Max. 12.36" × 18.11" (314 mm × 460 mm) to min. 7.68" ×7.99" (195
mm × 203 mm)
Wide Paper
11" × 17"W w, 8.5" × 11"W w/v, A3W w, B4W w, A4W w/v
Tab Paper
11" × 17"T w, 8.5" × 11"T w/v, A3T w, B4T w, A4T w/v
Tab Paper (Custom Size)
Max. 12.36" × 18.11" (314 mm × 460 mm) to min. 7.68" ×7.99" (195
mm × 203 mm)
3
3-9
