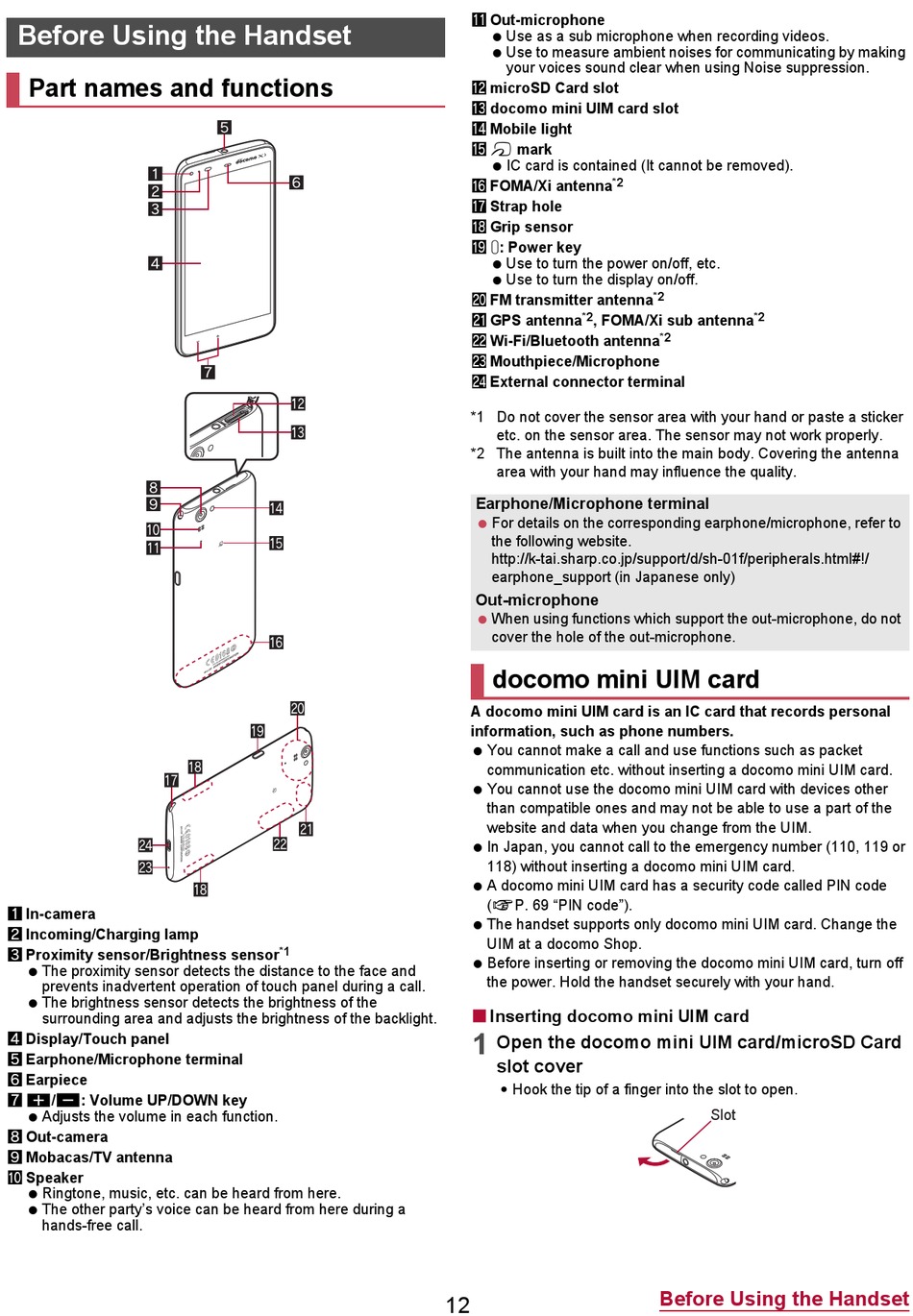

Before Using the Handset

Part names and functions

1 In-camera
2 Incoming/Charging lamp
3 Proximity sensor/Brightness sensor
The proximity sensor detects the distance to the face and
prevents inadvertent operation of touch panel during a call.
The brightness sensor detects the brightness of the
surrounding area and adjusts the brightness of the backlight.
4 Display/Touch panel
5 Earphone/Microphone terminal
6 Earpiece
7 x/y: Volume UP/DOWN key
Adjusts the volume in each function.
8 Out-camera
9 Mobacas/TV antenna
a Speaker
Ringtone, music, etc. can be heard from here.
The other party's voice can be heard from here during a
hands-free call.
*1
12
b Out-microphone
Use as a sub microphone when recording videos.
Use to measure ambient noises for communicating by making
your voices sound clear when using Noise suppression.
c microSD Card slot
d docomo mini UIM card slot
e Mobile light
f a mark
IC card is contained (It cannot be removed).
*2
g FOMA/Xi antenna
h Strap hole
i Grip sensor
j H: Power key
Use to turn the power on/off, etc.
Use to turn the display on/off.
k FM transmitter antenna
l GPS antenna *2
, FOMA/Xi sub antenna
m Wi-Fi/Bluetooth antenna
n Mouthpiece/Microphone
o External connector terminal
*1 Do not cover the sensor area with your hand or paste a sticker
etc. on the sensor area. The sensor may not work properly.
*2 The antenna is built into the main body. Covering the antenna
area with your hand may influence the quality.
Earphone/Microphone terminal
For details on the corresponding earphone/microphone, refer to
the following website.
( h ttp://k-tai.sharp.co.jp/support/d/sh-01f/peripherals.html#!/
earphone_support) (in Japanese only)
Out-microphone
When using functions which support the out-microphone, do not
cover the hole of the out-microphone.

docomo mini UIM card

A docomo mini UIM card is an IC card that records personal
information, such as phone numbers.
You cannot make a call and use functions such as packet
communication etc. without inserting a docomo mini UIM card.
You cannot use the docomo mini UIM card with devices other
than compatible ones and may not be able to use a part of the
website and data when you change from the UIM.
In Japan, you cannot call to the emergency number (110, 119 or
118) without inserting a docomo mini UIM card.
A docomo mini UIM card has a security code called PIN code
(nP. 69 "PIN code").
The handset supports only docomo mini UIM card. Change the
UIM at a docomo Shop.
Before inserting or removing the docomo mini UIM card, turn off
the power. Hold the handset securely with your hand.
■ Inserting docomo mini UIM card
1
Open the docomo mini UIM card/microSD Card
slot cover
: Hook the tip of a finger into the slot to open.
*2
*2
*2
Slot
Before Using the Handset
