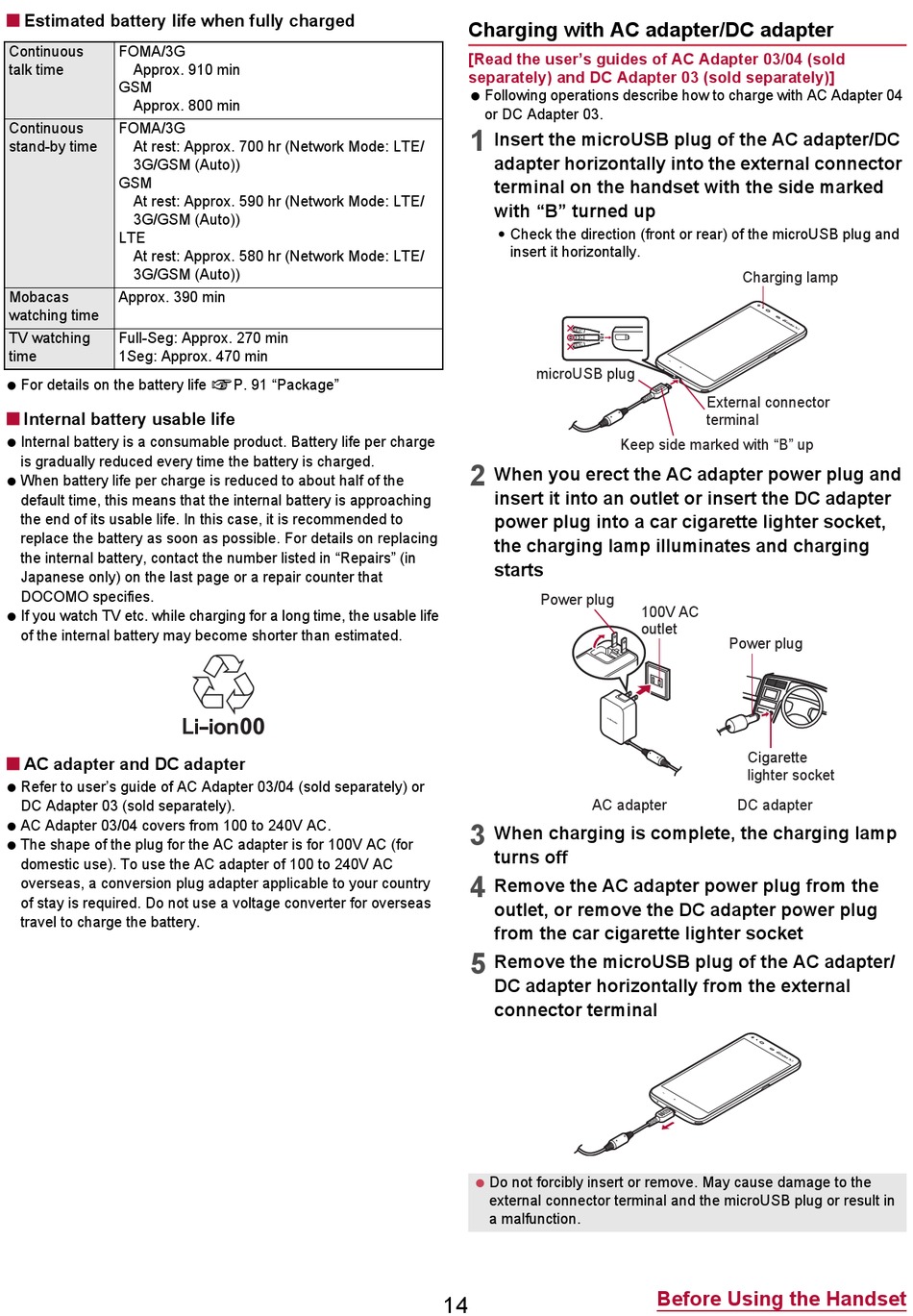

Docomo dragon quest sh-01f Instruction Manual page 16

Estimated battery life when fully charged
■
Continuous FOMA/3G
talk time Approx. 910 min
GSM
Approx. 800 min
Continuous FOMA/3G
stand-by time At rest: Approx. 700 hr (Network Mode: LTE/
3G/GSM (Auto))
GSM
At rest: Approx. 590 hr (Network Mode: LTE/
3G/GSM (Auto))
LTE
At rest: Approx. 580 hr (Network Mode: LTE/
3G/GSM (Auto))
Mobacas Approx. 390 min
watching time
TV watching Full-Seg: Approx. 270 min
time 1Seg: Approx. 470 min
For details on the battery life nP. 91 "Package"
Internal battery usable life
■
Internal battery is a consumable product. Battery life per charge
is gradually reduced every time the battery is charged.
When battery life per charge is reduced to about half of the
default time, this means that the internal battery is approaching
the end of its usable life. In this case, it is recommended to
replace the battery as soon as possible. For details on replacing
the internal battery, contact the number listed in "Repairs" (in
Japanese only) on the last page or a repair counter that
DOCOMO specifies.
If you watch TV etc. while charging for a long time, the usable life
of the internal battery may become shorter than estimated.
AC adapter and DC adapter
■
Refer to user's guide of AC Adapter 03/04 (sold separately) or
DC Adapter 03 (sold separately).
AC Adapter 03/04 covers from 100 to 240V AC.
The shape of the plug for the AC adapter is for 100V AC (for
domestic use). To use the AC adapter of 100 to 240V AC
overseas, a conversion plug adapter applicable to your country
of stay is required. Do not use a voltage converter for overseas
travel to charge the battery.
Charging with AC adapter/DC adapter
[Read the user's guides of AC Adapter 03/04 (sold
separately) and DC Adapter 03 (sold separately)]
Following operations describe how to charge with AC Adapter 04
or DC Adapter 03.
1
Insert the microUSB plug of the AC adapter/DC
adapter horizontally into the external connector
terminal on the handset with the side marked
with "B" turned up
: Check the direction (front or rear) of the microUSB plug and
insert it horizontally.
microUSB plug
2
When you erect the AC adapter power plug and
insert it into an outlet or insert the DC adapter
power plug into a car cigarette lighter socket,
the charging lamp illuminates and charging
starts
Power plug
AC adapter
3
When charging is complete, the charging lamp
turns off
4
Remove the AC adapter power plug from the
outlet, or remove the DC adapter power plug
from the car cigarette lighter socket
5
Remove the microUSB plug of the AC adapter/
DC adapter horizontally from the external
connector terminal
Do not forcibly insert or remove. May cause damage to the
external connector terminal and the microUSB plug or result in
a malfunction.
14
Charging lamp
External connector
terminal
Keep side marked with "B" up
100V AC
outlet
Power plug
Cigarette
lighter socket
DC adapter
Before Using the Handset
