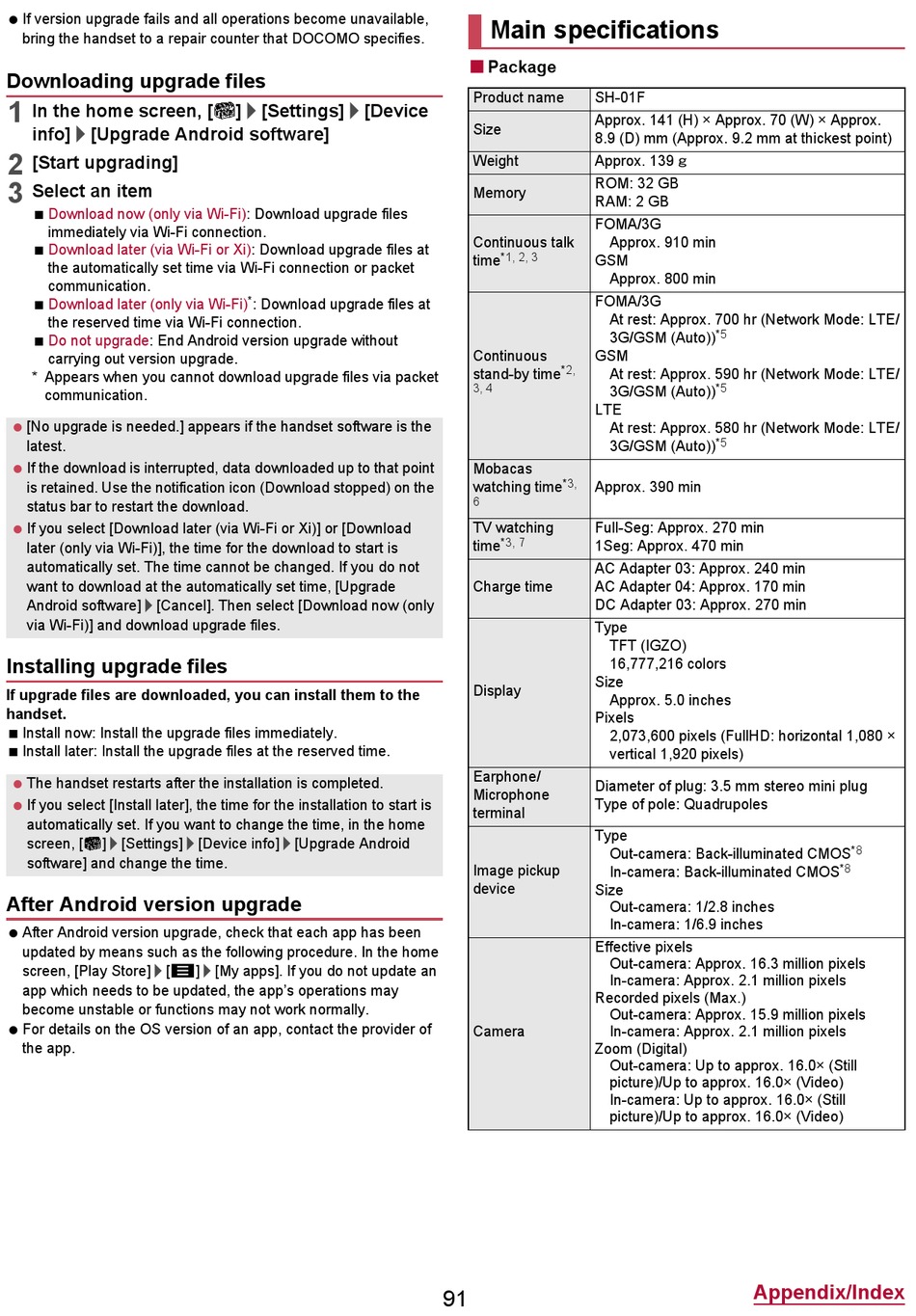

Main Specifications - Docomo dragon quest sh-01f Instruction Manual

If version upgrade fails and all operations become unavailable,
bring the handset to a repair counter that DOCOMO specifies.
Downloading upgrade files
1
In the home screen, [R]/[Settings]/[Device
info]/[Upgrade Android software]
2
[Start upgrading]
3
Select an item
Download now (only via
immediately via Wi-Fi connection.
Download later (via Wi-Fi or
the automatically set time via Wi-Fi connection or packet
communication.
Download later (only via Wi-Fi)
the reserved time via Wi-Fi connection.
Do not upgrade: End Android version upgrade without
carrying out version upgrade.
* Appears when you cannot download upgrade files via packet
communication.
[No upgrade is needed.] appears if the handset software is the
latest.
If the download is interrupted, data downloaded up to that point
is retained. Use the notification icon (Download stopped) on the
status bar to restart the download.
If you select [Download later (via Wi-Fi or Xi)] or [Download
later (only via Wi-Fi)], the time for the download to start is
automatically set. The time cannot be changed. If you do not
want to download at the automatically set time, [Upgrade
Android software]/[Cancel]. Then select [Download now (only
via Wi-Fi)] and download upgrade files.
Installing upgrade files
If upgrade files are downloaded, you can install them to the
handset.
Install now: Install the upgrade files immediately.
Install later: Install the upgrade files at the reserved time.
The handset restarts after the installation is completed.
If you select [Install later], the time for the installation to start is
automatically set. If you want to change the time, in the home
screen, [R]/[Settings]/[Device info]/[Upgrade Android
software] and change the time.
After Android version upgrade
After Android version upgrade, check that each app has been
updated by means such as the following procedure. In the home
screen, [Play Store]/[z]/[My apps]. If you do not update an
app which needs to be updated, the app's operations may
become unstable or functions may not work normally.
For details on the OS version of an app, contact the provider of
the app.
Wi-Fi): Download upgrade files
Xi): Download upgrade files at
*
: Download upgrade files at

Main specifications

Package
■
Product name SH-01F
Approx. 141 (H) × Approx. 70 (W) × Approx.
Size
8.9 (D) mm (Approx. 9.2 mm at thickest point)
Weight Approx. 139 g
ROM: 32 GB
Memory
RAM: 2 GB
FOMA/3G
Continuous talk Approx. 910 min
*1, 2, 3
time GSM
Approx. 800 min
FOMA/3G
At rest: Approx. 700 hr (Network Mode: LTE/
3G/GSM (Auto))
Continuous GSM
*2,
stand-by time At rest: Approx. 590 hr (Network Mode: LTE/
3, 4
3G/GSM (Auto))
LTE
At rest: Approx. 580 hr (Network Mode: LTE/
3G/GSM (Auto))
Mobacas
*3,
watching time Approx. 390 min
6
TV watching Full-Seg: Approx. 270 min
*3, 7
time 1Seg: Approx. 470 min
AC Adapter 03: Approx. 240 min
Charge time AC Adapter 04: Approx. 170 min
DC Adapter 03: Approx. 270 min
Type
TFT (IGZO)
16,777,216 colors
Size
Display
Approx. 5.0 inches
Pixels
2,073,600 pixels (FullHD: horizontal 1,080 ×
vertical 1,920 pixels)
Earphone/
Diameter of plug: 3.5 mm stereo mini plug
Microphone
Type of pole: Quadrupoles
terminal
Type
Out-camera: Back-illuminated CMOS
Image pickup
In-camera: Back-illuminated CMOS
device
Size
Out-camera: 1/2.8 inches
In-camera: 1/6.9 inches
Effective pixels
Out-camera: Approx. 16.3 million pixels
In-camera: Approx. 2.1 million pixels
Recorded pixels (Max.)
Out-camera: Approx. 15.9 million pixels
Camera In-camera: Approx. 2.1 million pixels
Zoom (Digital)
Out-camera: Up to approx. 16.0× (Still
picture)/Up to approx. 16.0× (Video)
In-camera: Up to approx. 16.0× (Still
picture)/Up to approx. 16.0× (Video)
91
*5
*5
*5
*8
*8
Appendix/Index
