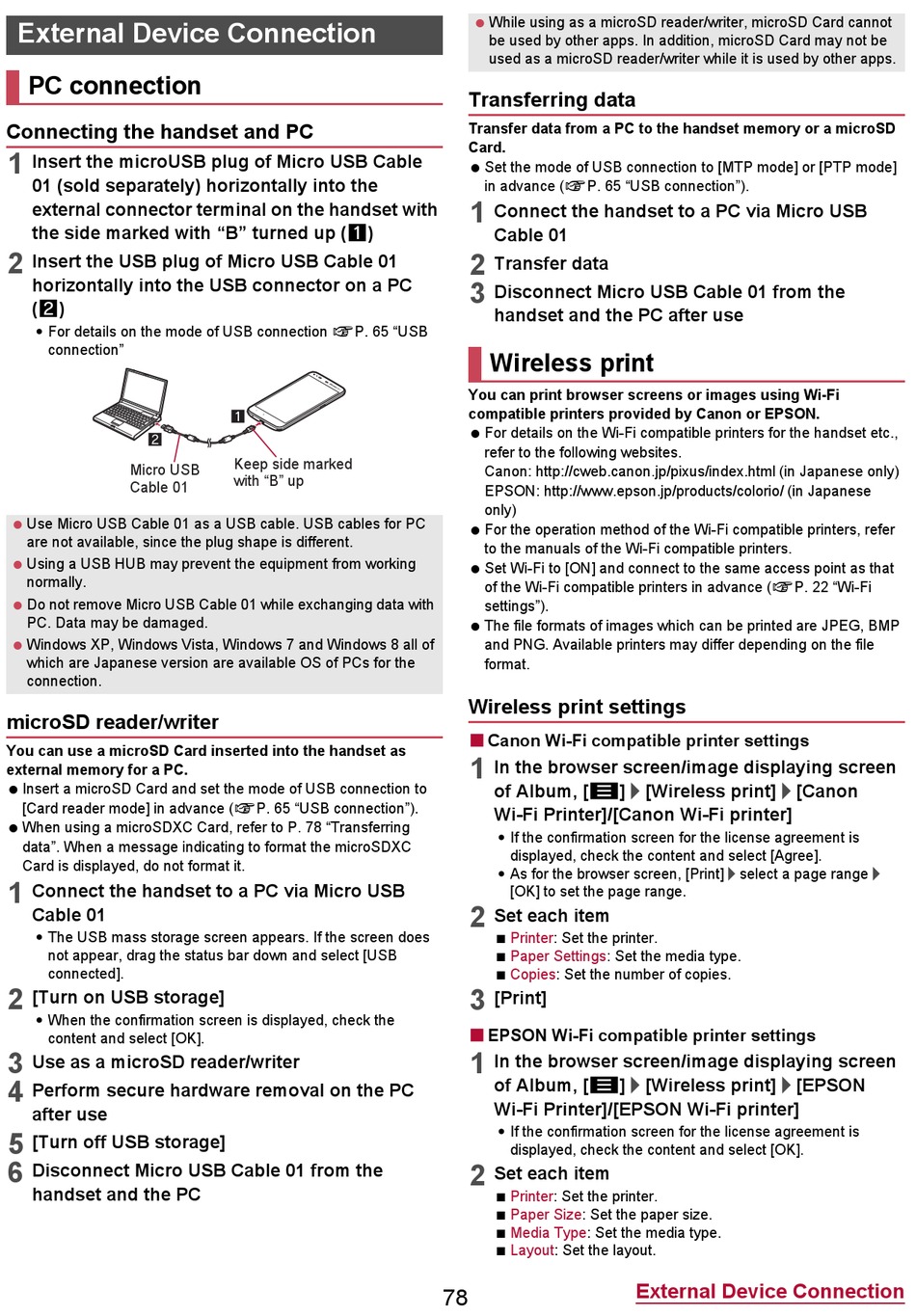

External Device Connection

PC connection

Connecting the handset and PC
1
Insert the microUSB plug of Micro USB Cable
01 (sold separately) horizontally into the
external connector terminal on the handset with
the side marked with "B" turned up (1)
2
Insert the USB plug of Micro USB Cable 01
horizontally into the USB connector on a PC
(2)
: For details on the mode of USB connection nP. 65 "USB
connection"
Micro USB
Cable 01
Use Micro USB Cable 01 as a USB cable. USB cables for PC
are not available, since the plug shape is different.
Using a USB HUB may prevent the equipment from working
normally.
Do not remove Micro USB Cable 01 while exchanging data with
PC. Data may be damaged.
Windows XP, Windows Vista, Windows 7 and Windows 8 all of
which are Japanese version are available OS of PCs for the
connection.
microSD reader/writer
You can use a microSD Card inserted into the handset as
external memory for a PC.
Insert a microSD Card and set the mode of USB connection to
[Card reader mode] in advance (nP. 65 "USB connection").
When using a microSDXC Card, refer to P. 78 "Transferring
data". When a message indicating to format the microSDXC
Card is displayed, do not format it.
1
Connect the handset to a PC via Micro USB
Cable 01
: The USB mass storage screen appears. If the screen does
not appear, drag the status bar down and select [USB
connected].
2
[Turn on USB storage]
: When the confirmation screen is displayed, check the
content and select [OK].
3
Use as a microSD reader/writer
4
Perform secure hardware removal on the PC
after use
5
[Turn off USB storage]
6
Disconnect Micro USB Cable 01 from the
handset and the PC
Keep side marked
with "B" up
While using as a microSD reader/writer, microSD Card cannot
be used by other apps. In addition, microSD Card may not be
used as a microSD reader/writer while it is used by other apps.
Transferring data
Transfer data from a PC to the handset memory or a microSD
Card.
Set the mode of USB connection to [MTP mode] or [PTP mode]
in advance (nP. 65 "USB connection").
1
Connect the handset to a PC via Micro USB
Cable 01
2
Transfer data
3
Disconnect Micro USB Cable 01 from the
handset and the PC after use

Wireless print

You can print browser screens or images using Wi-Fi
compatible printers provided by Canon or EPSON.
For details on the Wi-Fi compatible printers for the handset etc.,
refer to the following websites.
Canon: h ( ttp://cweb.canon.jp/pixus/index.html)
EPSON: ( h ttp://www.epson.jp/products/colorio/)
only)
For the operation method of the Wi-Fi compatible printers, refer
to the manuals of the Wi-Fi compatible printers.
Set Wi-Fi to [ON] and connect to the same access point as that
of the Wi-Fi compatible printers in advance (nP. 22 "Wi-Fi
settings").
The file formats of images which can be printed are JPEG, BMP
and PNG. Available printers may differ depending on the file
format.
Wireless print settings
Canon Wi-Fi compatible printer settings
■
1
In the browser screen/image displaying screen
of Album, [z]/[Wireless print]/[Canon
Wi-Fi Printer]/[Canon Wi-Fi printer]
: If the confirmation screen for the license agreement is
displayed, check the content and select [Agree].
: As for the browser screen, [Print]/select a page
[OK] to set the page range.
2
Set each item
Printer: Set the printer.
Paper Settings: Set the media type.
Copies: Set the number of copies.
3
[Print]
EPSON Wi-Fi compatible printer settings
■
1
In the browser screen/image displaying screen
of Album, [z]/[Wireless print]/[EPSON
Wi-Fi Printer]/[EPSON Wi-Fi printer]
: If the confirmation screen for the license agreement is
displayed, check the content and select [OK].
2
Set each item
Printer: Set the printer.
Paper Size: Set the paper size.
Media Type: Set the media type.
Layout: Set the layout.
78
(in Japanese only)
(in Japanese
External Device Connection
