3 Installation

3.1.1

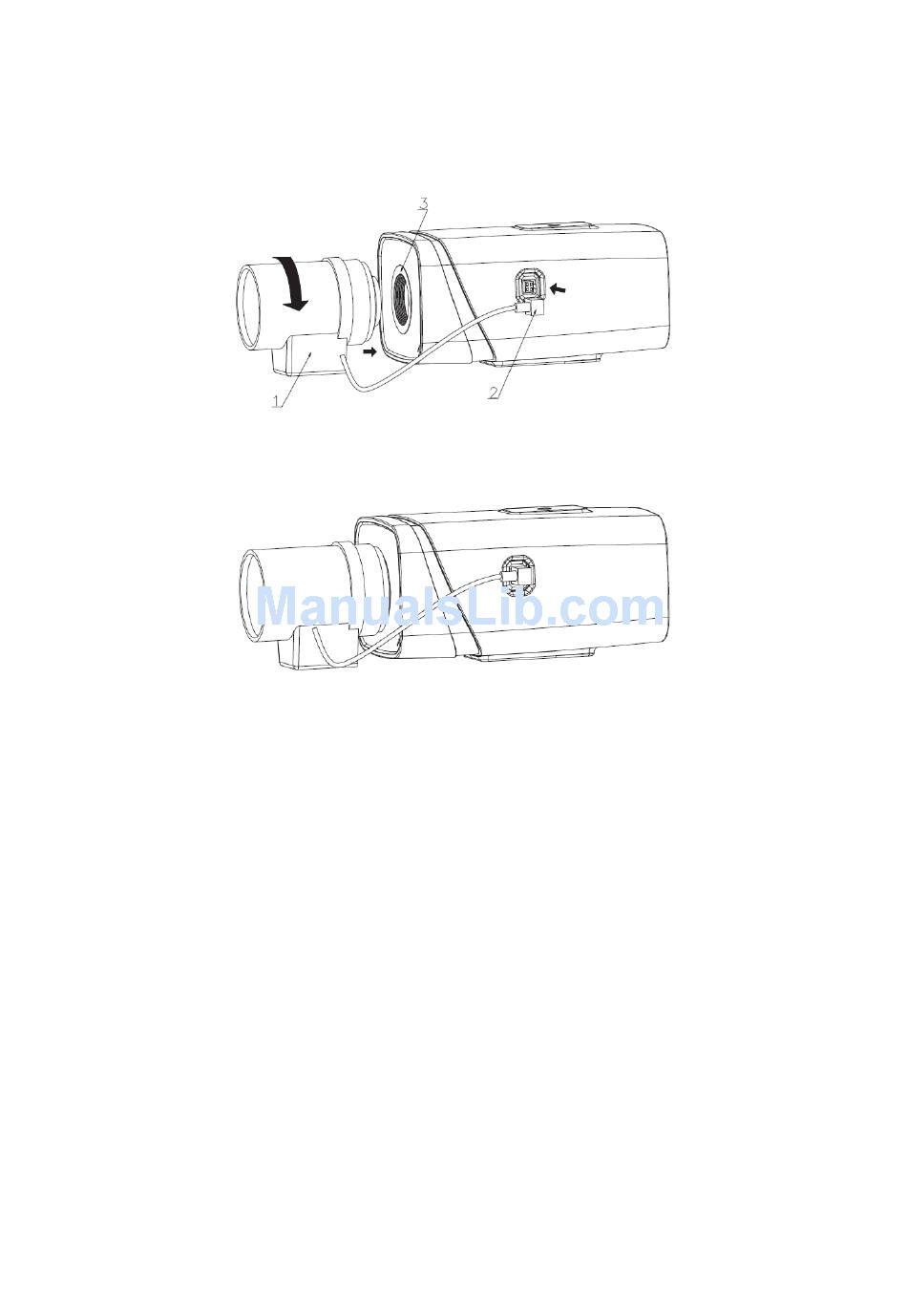

3.1.1.1 Auto Aperture Lens

Please follow the steps listed below for auto aperture lens installation.

Remove the CCD protection cap of the device, and then line up the lens to the proper installation

position. Turn clockwise until the lens is fixed firmly.

Step 1. Insert the lens cable socket to the auto lens connector in the side panel.

Step 2. Adjust focus length.

3.1.1.2 Manual Lens

Install C type lens

Step 1. Remove the CCD protection cap from the device.

Step 2. Install the C/CS adapter to the camera. Turn clockwise to secure against the focusing

ring firmly.

Step 3. Line up the C lens to the installation position of the C/CS adapter. Turn clockwise to fix

the lens.

Step 4. Use slotted screwdriver to fasten the screw near the focusing ring and then turn counter

clockwise to move the focusing ring out for several millimeters. Now you can focus manually

and check the video is clear or not. If you can not see the clear video, you can adjust via the

flange-back.

Figure 3- 1 Lens installation 1

Figure 3- 2 Lens installation 2
