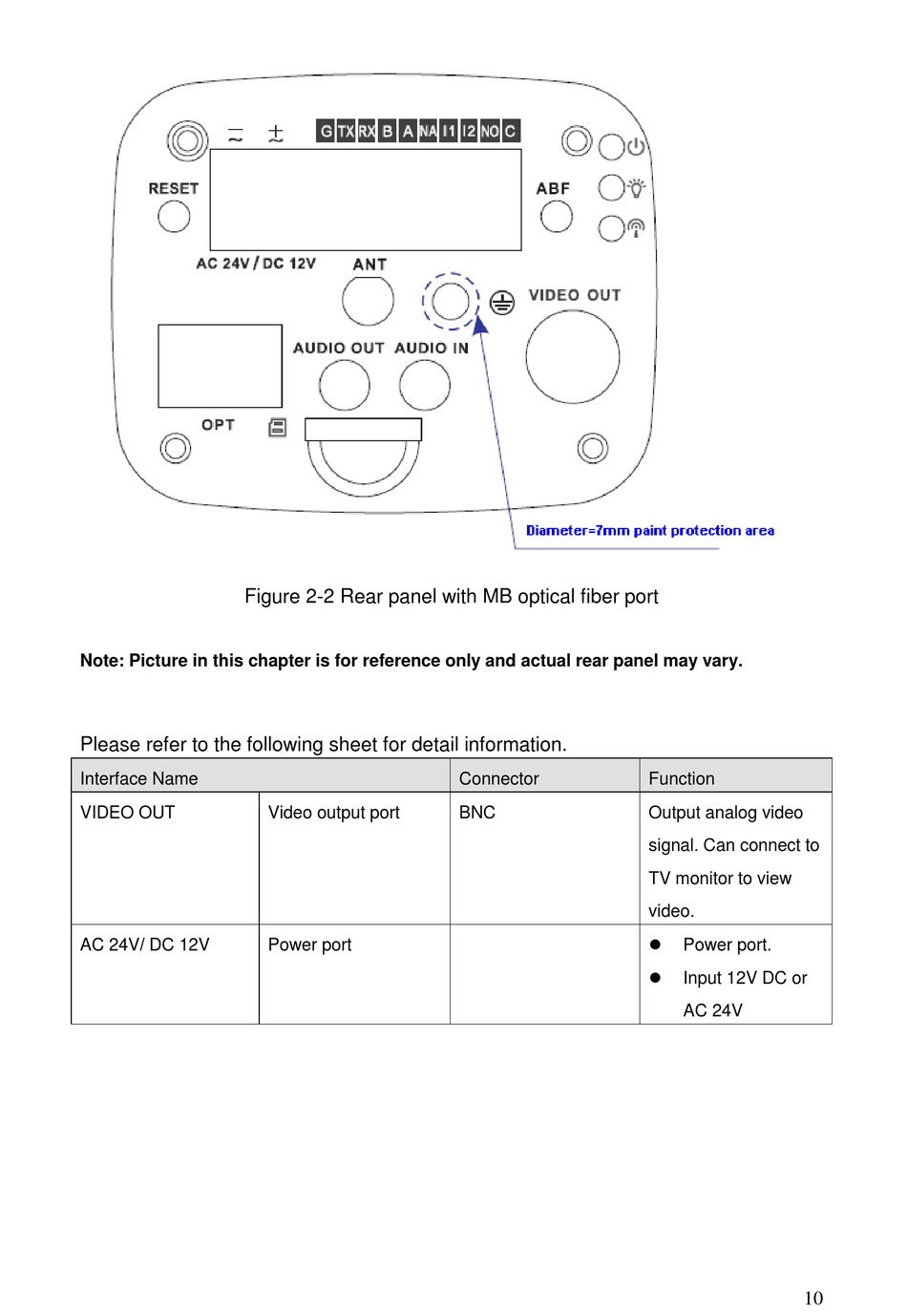

Figure 2-2 Rear panel with MB optical fiber port
Note: Picture in this chapter is for reference only and actual rear panel may vary.
Please refer to the following sheet for detail information.
Interface Name
VIDEO OUT
AC 24V/ DC 12V
Video output port
Power port
Connector
BNC
Function
Output analog video
signal. Can connect to
TV monitor to view
video.
Power port.
Input 12V DC or
AC 24V
10
