Do not connect two power supplying sources to the device at the same time; it
may result in device damage!


PoE





Assistant
Function





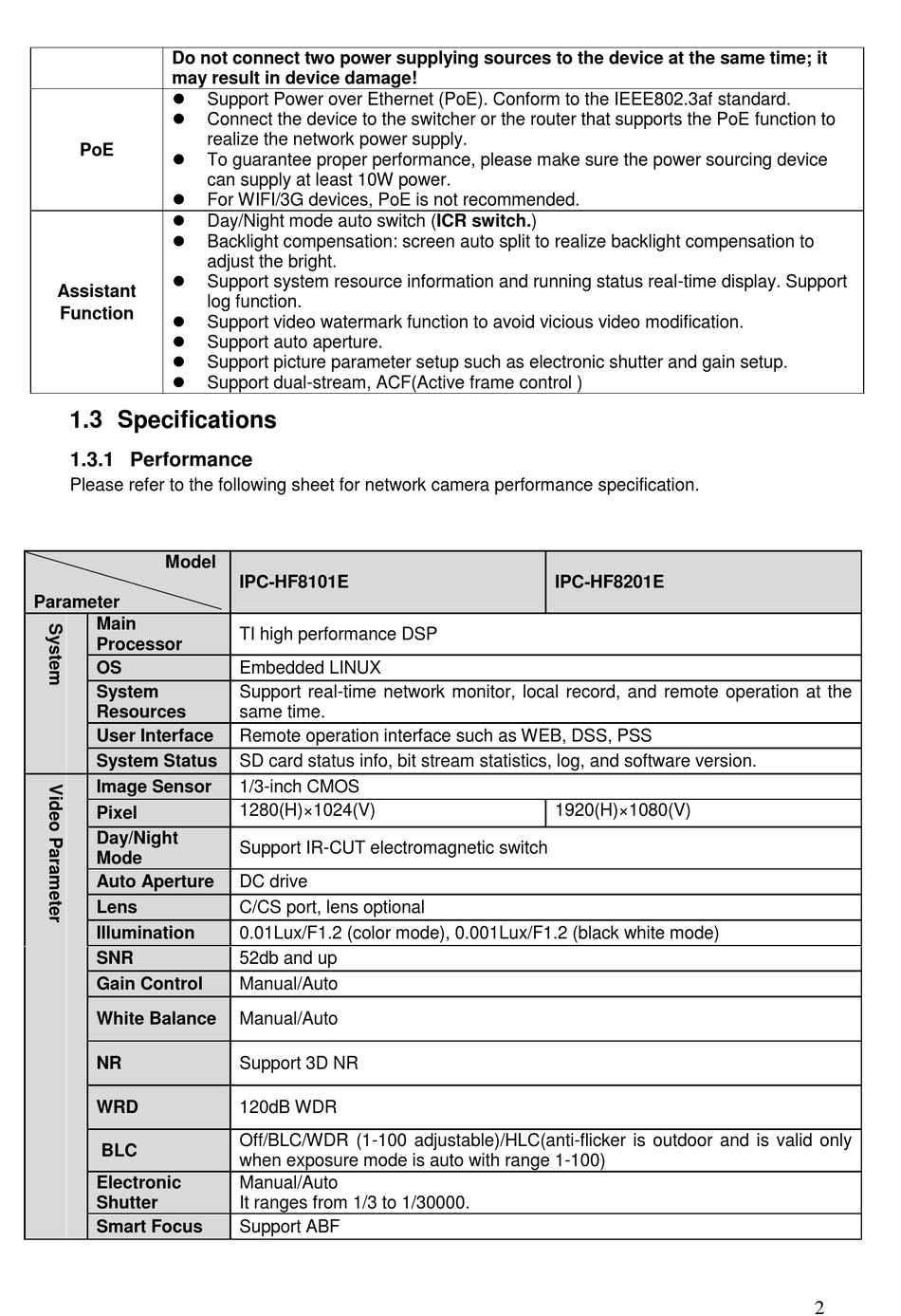

1.3 Specifications

1.3.1 Performance

Please refer to the following sheet for network camera performance specification.
Model
Parameter
Main
Processor
OS
System
Resources
User Interface
System Status
Image Sensor
Pixel
Day/Night
Mode
Auto Aperture
Lens
Illumination
SNR
Gain Control
White Balance
NR
WRD
BLC
Electronic
Shutter
Smart Focus
Support Power over Ethernet (PoE). Conform to the IEEE802.3af standard.
Connect the device to the switcher or the router that supports the PoE function to
realize the network power supply.
To guarantee proper performance, please make sure the power sourcing device
can supply at least 10W power.
For WIFI/3G devices, PoE is not recommended.
Day/Night mode auto switch (ICR switch.)
Backlight compensation: screen auto split to realize backlight compensation to
adjust the bright.
Support system resource information and running status real-time display. Support
log function.
Support video watermark function to avoid vicious video modification.
Support auto aperture.
Support picture parameter setup such as electronic shutter and gain setup.
Support dual-stream, ACF(Active frame control )
IPC-HF8101E
TI high performance DSP
Embedded LINUX
Support real-time network monitor, local record, and remote operation at the
same time.
Remote operation interface such as WEB, DSS, PSS
SD card status info, bit stream statistics, log, and software version.
1/3-inch CMOS
1280(H)×1024(V)
Support IR-CUT electromagnetic switch
DC drive
C/CS port, lens optional
0.01Lux/F1.2 (color mode), 0.001Lux/F1.2 (black white mode)
52db and up
Manual/Auto
Manual/Auto
Support 3D NR
120dB WDR
Off/BLC/WDR (1-100 adjustable)/HLC(anti-flicker is outdoor and is valid only
when exposure mode is auto with range 1-100)
Manual/Auto
It ranges from 1/3 to 1/30000.
Support ABF
IPC-HF8201E
1920(H)×1080(V)
