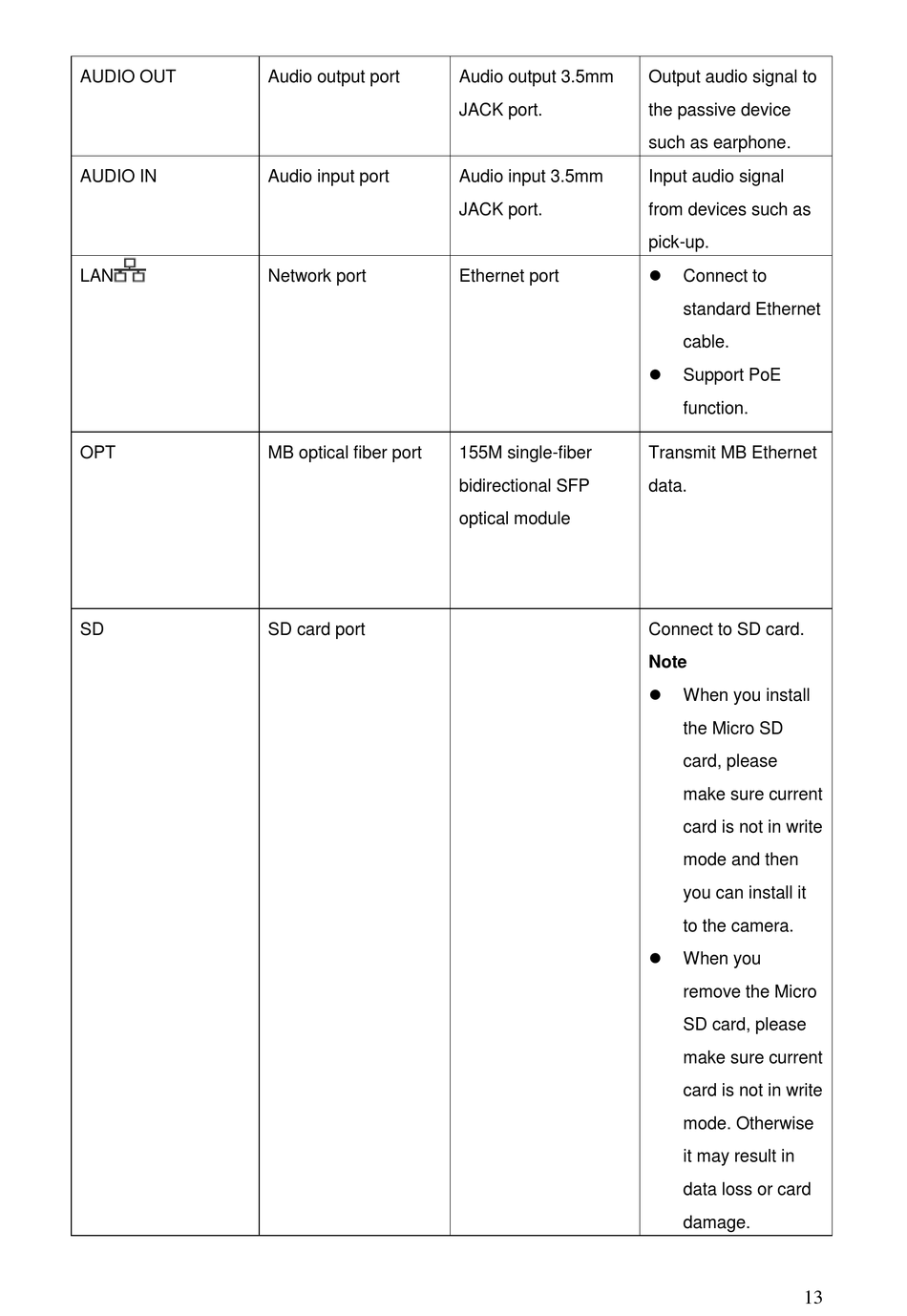

AUDIO OUT
AUDIO IN
LAN
OPT
SD
Audio output port
Audio input port
Network port
MB optical fiber port
SD card port
Audio output 3.5mm
JACK port.
Audio input 3.5mm
JACK port.
Ethernet port
155M single-fiber
bidirectional SFP
optical module
Output audio signal to
the passive device
such as earphone.
Input audio signal
from devices such as
pick-up.

Connect to
standard Ethernet
cable.

Support PoE
function.
Transmit MB Ethernet
data.
Connect to SD card.
Note

When you install
the Micro SD
card, please
make sure current
card is not in write
mode and then
you can install it
to the camera.

When you
remove the Micro
SD card, please
make sure current
card is not in write
mode. Otherwise
it may result in
data loss or card
damage.
13
